13AX615G055 - Yard-Man Lawn Tractor (2008) (Walmart) Frame & PTO Parts Diagram

Lawn Tractor

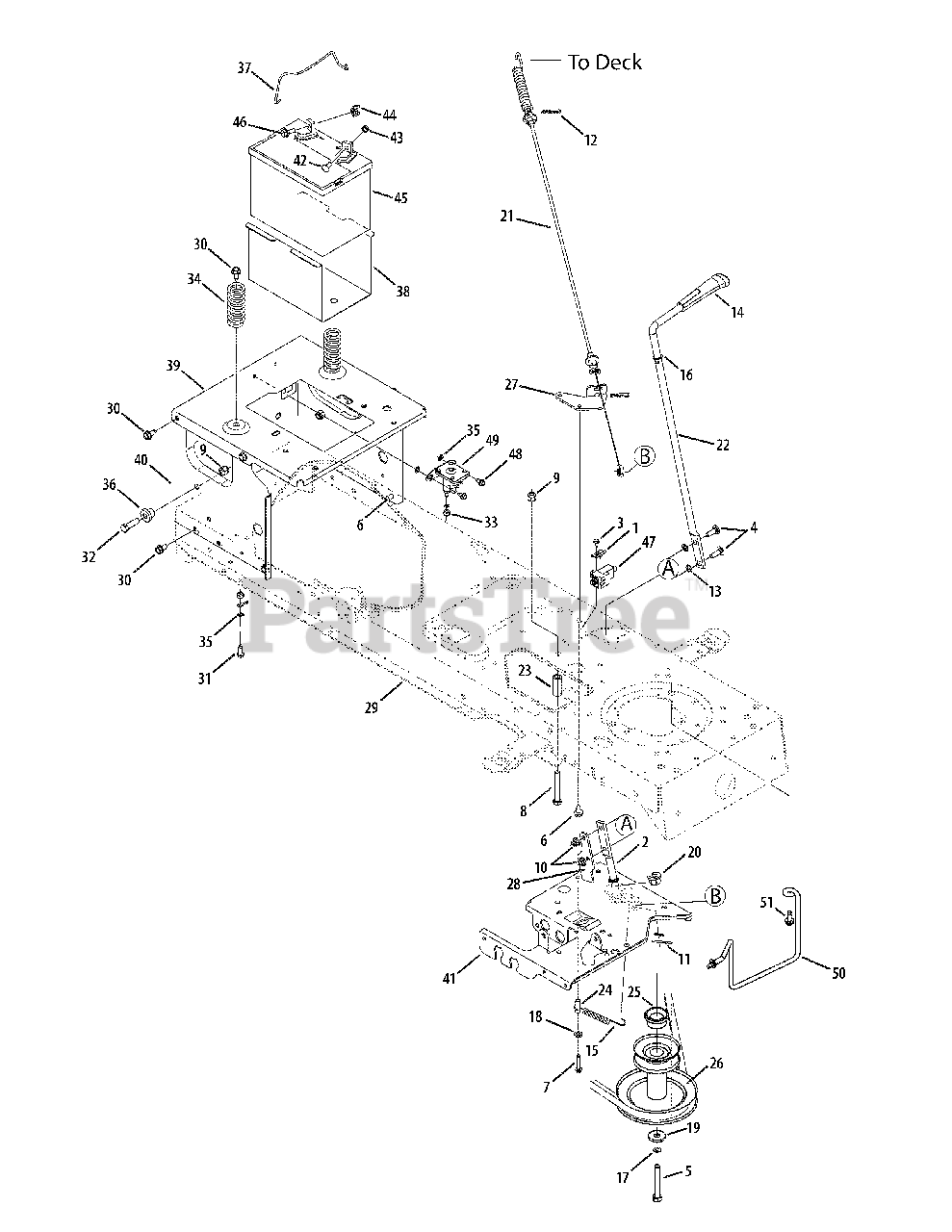

Frame & PTO Parts Diagram

  • Title

1

MTD 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

MTD 647-04036A

Lever Assembly, Engagement
(Superseded to 947-04036A)

$43.99

$

Usually ships in 3-6 days

0

3

MTD 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04608

Screw, 7/16-20, 3.25 42" Deck

$6.99

$

In Stock, Qty 7

0

6

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

7

MTD 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3011

Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

11

MTD 714-0115

Pin, Cotter, 1/8 x 1.00

$3.99

$

In Stock, only 2 left!

0

12

MTD 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

13

MTD 726-0201

Nut, Speed, .3125 ID

$6.99

$

In Stock, only 2 left!

0

14

MTD 731-2111B

Knob, PTO

$

$

Not available

15

MTD 732-04248

Extension Spring, .38 OD x 3.9 Lg

$10.99

$

In Stock, only 2 left!

0

16

MTD 736-0108

Washer, Flat, .510 x .750 x .033

$6.99

$

Usually ships in 3-6 days

0

17

MTD 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

18

MTD 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0322

Washer, Flat, .450 x1.250 x.164

$9.49

$

In Stock, Qty 7

0

20

MTD 741-0708

Bearing, Flange, Hex Split .500 ID

$4.49

$

In Stock, only 3 left!

0

21

MTD 746-04353A

Deck Engagement Cable
(Superseded to 946-04353A)

$51.99

$

In Stock, Qty 7

0

22

MTD 747-04470

Engagement Handle, Deck

$

$

Not available

23

MTD 748-0415B

Spacer, .385 ID x .635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

24

MTD 750-0566A

Spacer, .260 x .372 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

25

MTD 750-0956

Spacer, 1.010 x 1.40 x .825

$19.99

$

In Stock, only 2 left!

0

26

MTD 756-04067A

Pulley, Engine, 42" Deck
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

27

MTD 783-05358

Cable Bracket

Variations

MTD 783-05358-0637

Cable Bracket - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 783-05358-4008

BRACKET-CABLE - WINE RED (4008)

$

$

Not available

$

$

28

MTD 783-0744A

Stop Bracket, Engagement

Variations

MTD 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

MTD 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

29

MTD 683-04173B

Frame Assembly, Lower

Variations

MTD 683-04173B-0606

FRAME ASM-LOWER - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-04173B-0637

FRAME ASM-LOWER - POWDER BLACK (0637)

$

$

Not available

MTD 683-04173B-0650

FRAME ASM-LOWER - RED METALLIC (0650)

$

$

Not available

MTD 683-04173B-0665

FRAME ASM-LOWER - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-04173B-0691

FRAME ASM-LOWER - BLACK JACK (0691)

$

$

Not available

MTD 683-04173B-0709

FRAME ASM-LOWER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

30

MTD 710-04484

Screw, 5/16-18 x 0.625

$3.99

$

In Stock, Qty 20+

0

31

MTD 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

34

MTD 732-04035

Spring, Compr., 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

35

MTD 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

36

MTD 738-04058

Spacer, Shoulder, .38 x 1.0 x .70

$4.49

$

In Stock, only 3 left!

0

37

MTD 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

38

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 783-04329A

Seat Bracket, Frame

Variations

MTD 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04329A-4008

No Longer Available BRACKET-FR - WINE RED (4008)

$

$

Not available

$

$

40

MTD 783-04809C

Frame, Upper

Variations

MTD 783-04809C-0606

FRAME-UPPER - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04809C-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

MTD 783-04809C-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

MTD 783-04809C-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04809C-0691

FRAME-UPPER - BLACK JACK (0691)

$

$

Not available

$61.99

$

Usually ships in 3-6 days

0

41

MTD 783-04612

Support Bracket, Steering
(Superseded to 783-04612-0637)

Variations

MTD 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

42

MTD 710-04666

Hex Head Flange Screw

$6.99

$

In Stock, only 3 left!

0

43

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

45

MTD 725-1737A

Battery, 190 CCA
(Superseded to 925-1707D)

$

$

Not available

46

MTD 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

47

MTD 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

48

MTD 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

49

MTD 725-04439

Solenoid, 12V, 100 Amp
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

50

MTD 683-04443

Belt Keeper Rod Assembly
(Superseded to 747-04857)

Variations

MTD 683-04443-0637

Belt Keeper Rod, 42" - POWDER BLACK (0637)

$22.99

$

In Stock, Qty 11

0

$22.99

$

In Stock, Qty 11

0

51

MTD 710-1260A

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0
