13AX614G401 - Yard-Man Lawn Tractor (1997) Muffler Parts Diagram

Lawn Tractor

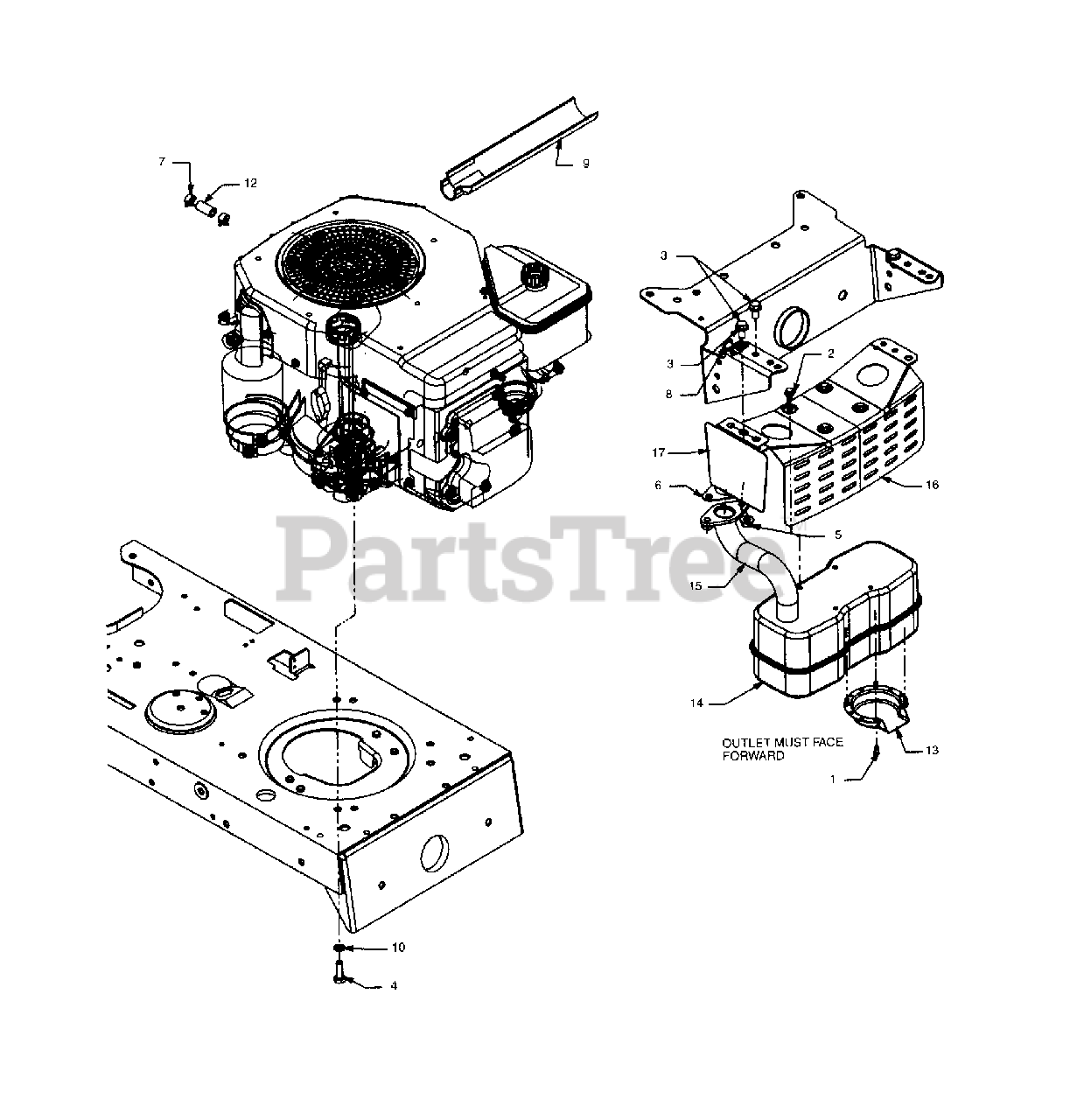

Muffler Parts Diagram

  • Title

1

MTD 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3206A

Hex Bolt M8 x 1.25

$3.99

$

In Stock, Qty 13

0

5

MTD 712-3086

Hex Flange Nut M8 Thd.

$4.49

$

In Stock, only 2 left!

0

6

MTD 721-0375

Exhaust Gasket
(Superseded to KH-12-041-03)

$

$

Not available

7

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

8

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

9

MTD 731-1682A

Oil Drain Sleeve

$7.99

$

In Stock, Qty 6

0

10

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 751-0535-12

Fuel Line 12" Lg.
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

13

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

14

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

15

MTD 751-0621

Exhaust Pipe
(Superseded to 751-0621A)

$

$

Not available

16

MTD 783-0320A

Muffler Bracket
(Superseded to 783-0615E-0637)

Note: New Part

Variations

MTD 783-0320A-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

17

MTD 783-0385

Shield Bracket.

$

$

Not available
