13AX611H705 - Ranch King Lawn Tractor (2005) Engine Accessories Parts Diagram

Lawn Tractor

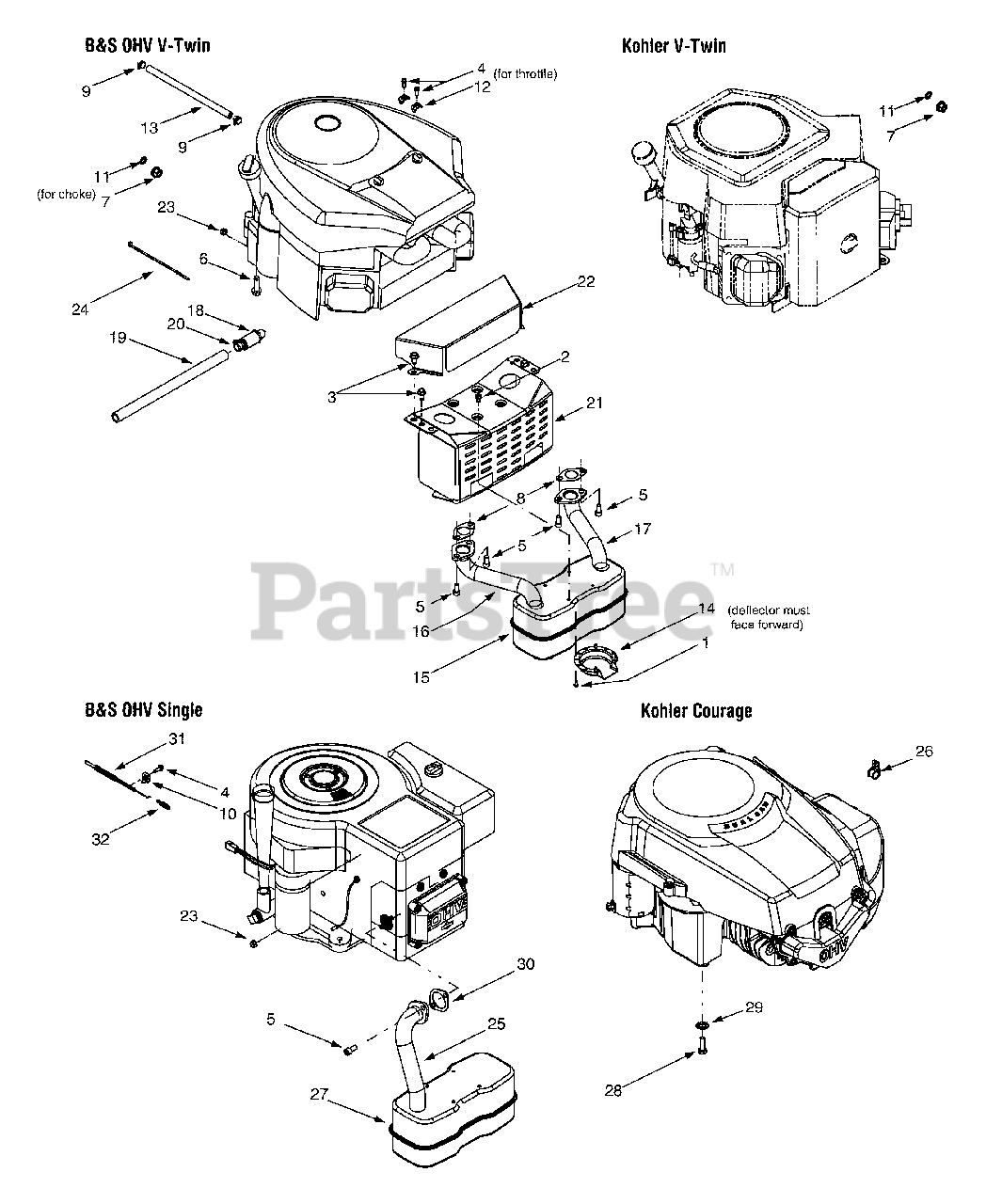

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Self-tapping Screw, #8-18 x.50

$4.49

$

In Stock, Qty 15

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x.625

Note: (B&S OHV V-Twin/ Single)

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Screw, 5/16-18 x.625

Note: (B&S OHV V-Twin/ Single)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

7

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

Note: (B&S OHV V-Twin)

$6.99

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

Note: (B&S OHV Single)

$5.49

$

In Stock, only 1 left!

0

11

MTD 736-0300

Lock Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

12

MTD 751B221535

Casing Clamp

Note: (B&S OHV V-Twin)

$10.99

$

In Stock, Qty 10

0

13

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

MTD 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

15

MTD 751-0616A

Muffler, Twin Inlet
(Superseded to 951-0616B)

Note: (B&S OHV V-Twin)

$163.99

$

In Stock, Qty 16

0

MTD 751-0805

Muffler, Twin Inlet
(Superseded to 951-0805A)

Note: (Kohler V-Twin)

$123.99

$

Usually ships in 3-6 days

0

16

MTD 751-0650B

RH Exhaust Pipe

Note: (B&S OHV V-Twin)

$63.99

$

In Stock, only 1 left!

0

MTD 751-0645A

RH Exhaust Pipe

Note: (Kohler V-Twin)

$93.99

$

Usually ships in 3-6 days

0

17

MTD 751-0651B

LH Exhaust Pipe

Note: (B&S OHV V-Twin)

$60.99

$

In Stock, only 1 left!

0

MTD 751-0644B

LH Exhaust Pipe

Note: (Kohler V-Twin)

$146.99

$

Usually ships in 3-6 days

0

18

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

20

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, only 4 left!

0

21

MTD 783-0615D

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

MTD 783-0625C

Engine Heat Shield

Note: (B&S OHV V-Twin)

$111.99

$

Usually ships in 3-6 days

0

23

MTD 712-0271

Hex Sems Nut, 1/4-20

Note: (B&S OHV V-Twin/ Single)

$4.49

$

In Stock, Qty 10

0

24

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

25

MTD 751-10047

Exhaust Pipe

Note: (Kohler)

$

$

Not available

MTD 751-0619A

Exhaust Pipe
(Superseded to 751-0619B)

Note: (B&S OHV Single)

$76.99

$

In Stock, only 2 left!

0

26

MTD 726-0272

Clamp

Note: (Kohler)

$7.49

$

Usually ships in 3-6 days

0

27

MTD 751-0617A

Muffler, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 6

0

28

MTD 710-0654A

Screw, 3/8-16 x 1.00

Note: (Kohler)

$4.49

$

In Stock, only 3 left!

0

29

MTD 736-0277

Flat Washer

Note: (Kohler)

$4.49

$

In Stock, only 1 left!

0

30

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (B&S OHV Single)

$5.49

$

In Stock, Qty 20+

0

31

MTD 746-1084

Throttle Cable
(Superseded to 946-1084)

Note: (B&S OHV Single)

$32.99

$

Usually ships in 3-6 days

0

32

MTD 732-0966

Extension Spring,.275 x 1.25

Note: (B&S OHV Single)

$

$

Not available
