13AX60TG766 - Troy-Bilt Super Bronco Lawn Tractor (2006) PTO Parts Diagram

Super Bronco Lawn Tractor

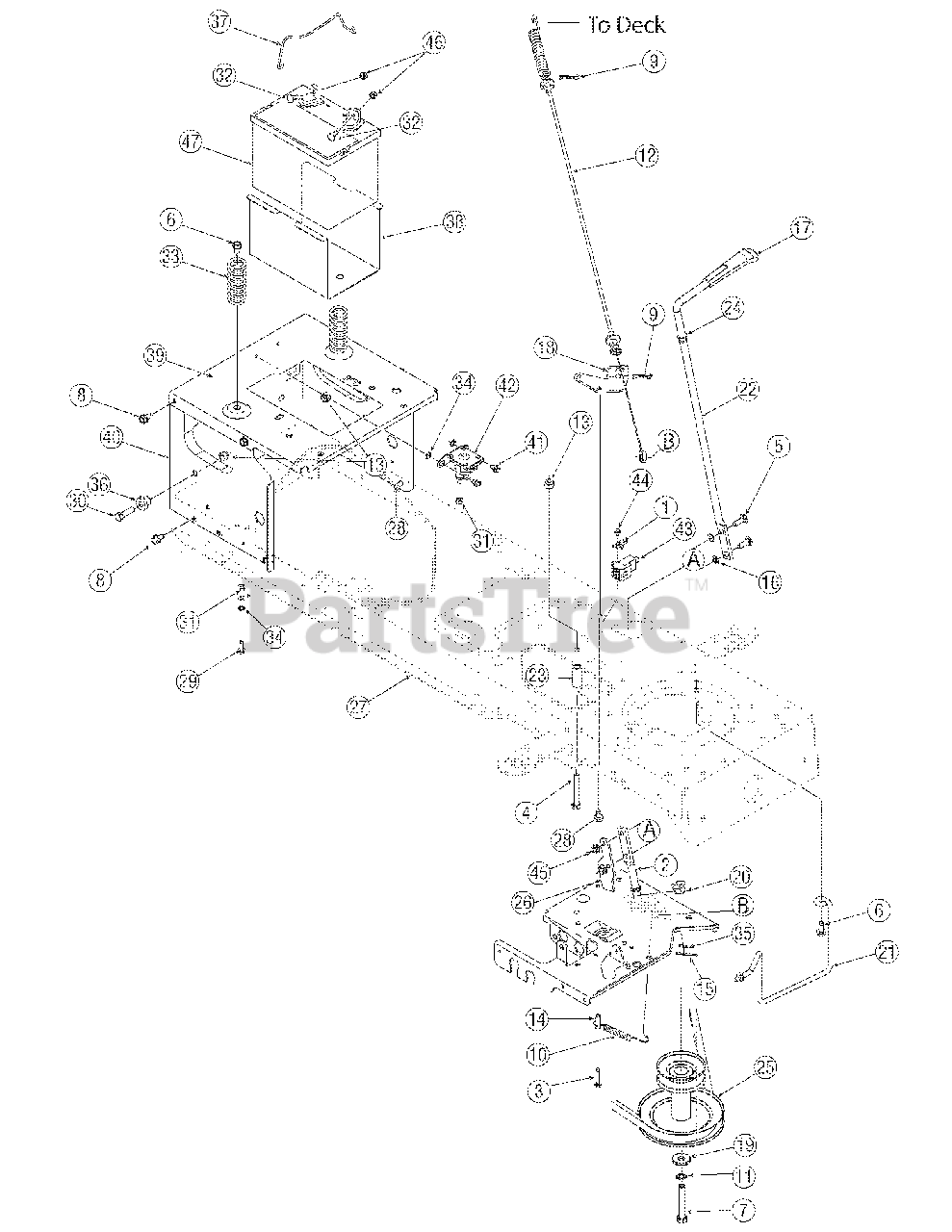

PTO Parts Diagram

  • Title

1

Troy-Bilt 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 647-04036

Lever Assembly, Engagement
(Superseded to 947-04036A)

$43.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0859

Screw, 3/8-16, 2.50

$6.99

$

In Stock, Qty 16

0

5

Troy-Bilt 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1260A

Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3157A

Screw, 7/16-20, 3.25, Gr5

$10.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 732-04248

Extension Spring,.38OD x 3.9LG

$10.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 746-04092

Deck Engagement Cable
(Superseded to 946-04092)

$43.99

$

In Stock, Qty 9

0

13

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16,

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 750-0566A

Spacer,.260 x.372 x 1.030LG

$9.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 726-0201

Nut, Speed,.3125 ID

$6.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 731-2111A

Knob, PTO
(Superseded to 731-2111B)

$

$

Not available

18

MTD 783-04590A

Cable Bracket

Variations

Troy-Bilt 783-04590A-0637

CABLE BRACKET - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-04590A-4008

CABLE BRACKET - WINE RED (4008)

$

$

Not available

$

$

19

Troy-Bilt 736-0322

Washer, Flat,.450 x1.250 x.164

$9.49

$

In Stock, Qty 8

0

20

Troy-Bilt 741-0708

Bearing, Flange, .500 ID

$4.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 747-04307

Keeper Rod, Belt
(Superseded to 747-04857)

$22.99

$

In Stock, Qty 11

0

22

Troy-Bilt 747-04470

Engagement Handle, Deck

$

$

Not available

23

Troy-Bilt 748-0415B

Spacer,.385 ID x.635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

24

Troy-Bilt 736-0108

Flat Washer, .510 x .750 x .033

$6.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 756-04196

Pulley, Engine, 3.39 x 6.12
(Superseded to 756-04196A)

$90.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 783-0744A

Stop Bracket, Engagement

Variations

Troy-Bilt 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

Troy-Bilt 683-04173-0637

FRAME ASM-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

28

Troy-Bilt 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

29

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-0703

Screw, Carriage, 1/4-20,.75

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 732-04035

Spring, Compr. , 1.28 OD

$10.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 736-0275

Flat Washer, .344 x .688

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 738-04058

Spacer, Shoulder,.38 x 1.0

$4.49

$

In Stock, only 3 left!

0

37

Troy-Bilt 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-0349

Battery Tray

Variations

Troy-Bilt 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

39

Troy-Bilt 783-04329A

Seat Bracket, Frame

Variations

Troy-Bilt 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-04329A-4008

SEAT BRACKET - WINE RED (4008)

$

$

Not available

$

$

40

Troy-Bilt 783-04809

Frame, Upper
(Superseded to 783-04809C-0637)

Variations

Troy-Bilt 783-04809-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-04809-0638

FRAME-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-04809-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-04809-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-04809-0716

FRAME-UPPER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

41

Troy-Bilt 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 725-1426A

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

44

Troy-Bilt 710-0224

Screw, #10-16,.50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 712-3004A

Nut, Flange, Lock Nut, 5/16

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 725-1737A

Battery, 190 CCA
(Superseded to 925-1707D)

$

$

Not available
