13AX60RH744 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) SEAT AND FENDER ASSEMBLY Parts Diagram

Lawn Tractor

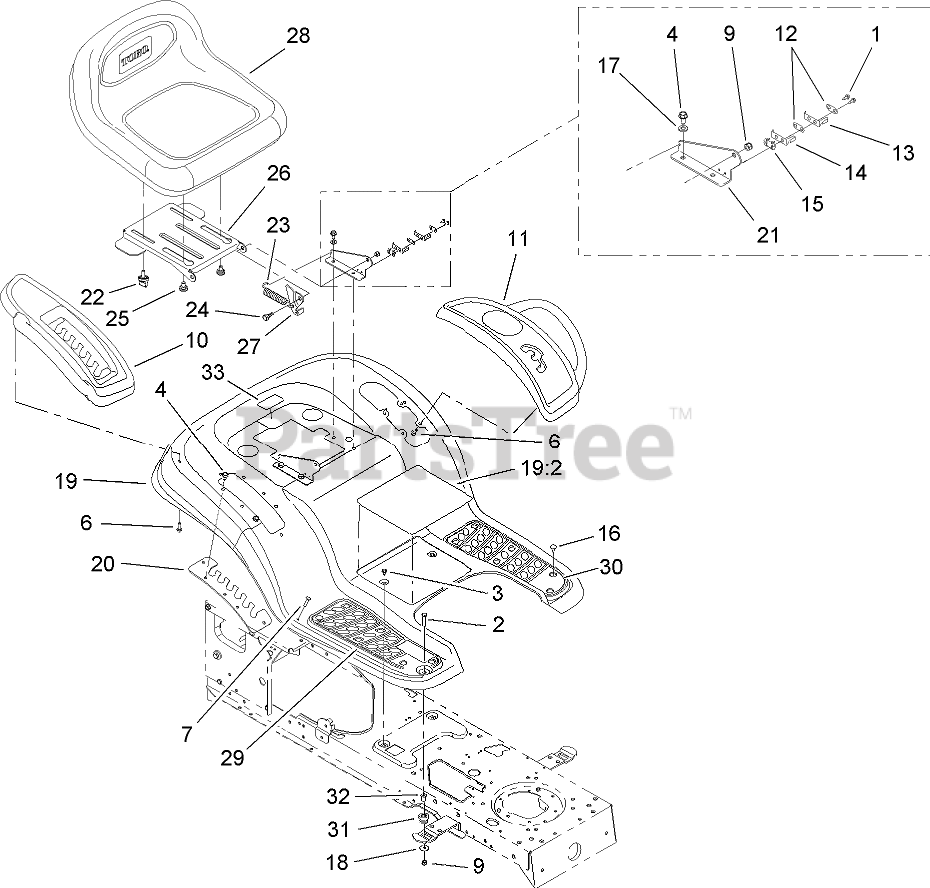

SEAT AND FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

2

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

3

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

4

Toro 112-0556

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

6

Toro 112-0509

SCREW-TAP

$10.99

$

In Stock, only 3 left!

0

7

Toro 112-0907

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

9

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0471

COVER-FENDER, RH

$

$

Not available

11

Toro 112-0470

COVER-FENDER, LH

$80.99

$

In Stock, only 1 left!

0

12

Toro 112-0635

PLATE-INSULATOR

$5.99

$

Usually ships in 3-6 days

0

13

Toro 112-0529

SWITCH-SPRING

$6.99

$

Usually ships in 3-6 days

0

14

Toro 112-0532

SWITCH-SPRING, INNER

$8.49

$

Usually ships in 3-6 days

0

15

Toro 112-0637

PLATE-BOSS, INSULATOR

$

$

Not available

16

Toro 112-0549

CLIP-RATCHET, FASTENER

$7.49

$

Usually ships in 3-6 days

0

17

Toro 112-0517

WASHER-LOCK, EXTERNAL

$

$

Not available

18

Toro 112-0582

WASHER-FLAT

$

$

Not available

19

Toro 112-5855

FENDER AND DECAL ASM

$

$

Not available

19:2

Toro 112-1262

DECAL-DANGER

$

$

Not available

20

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

21

Toro 112-0905

BRACKET-MOUNT, SEAT

$36.99

$

Usually ships in 3-6 days

0

22

$10.99

$

In Stock, only 2 left!

0

23

Toro 112-0616

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

24

Toro 112-0575

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

25

Toro 112-0554

BOLT-SHOULDER

$

$

Not available

26

Toro 112-0593

BRACKET-SEAT
(Superseded to 112-6113)

$

$

Not available

27

Toro 112-0646

BRACKET-LIFT, LH

$

$

Not available

28

Toro 112-0363

SEAT-BACK, MEDIUM
(Superseded to 112-6114)

$

$

Not available

29

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

30

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

31

Toro 112-3732

GROMMET

$16.99

$

Usually ships in 3-6 days

0

32

Toro 112-3733

SPACER

$

$

Not available

33

Toro 112-1260

DECAL-SERVICE (TORO HOTLINE)

$

$

Not available
