13AX60RH744 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) MUFFLER ASSEMBLY Parts Diagram

Lawn Tractor

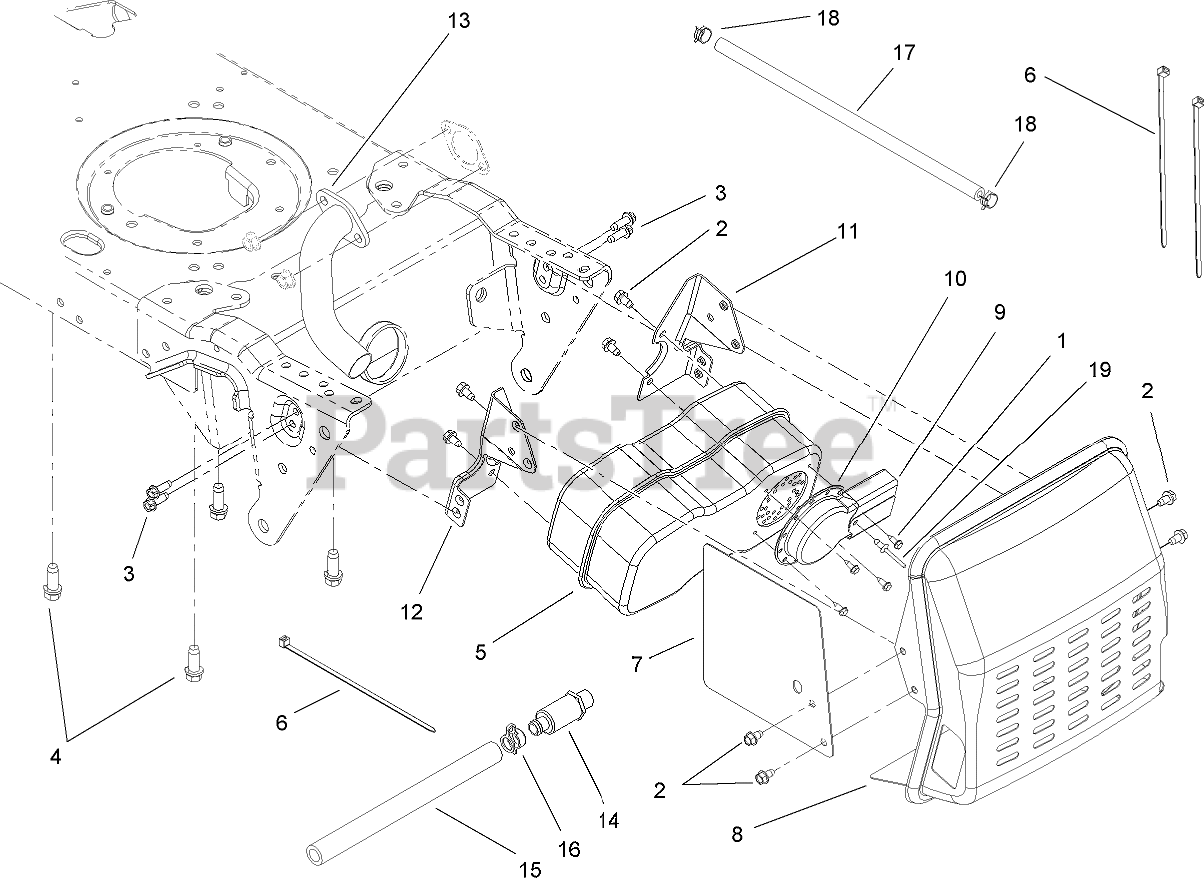

MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0626

SCREW-HWHTF

$6.99

$

In Stock, only 3 left!

0

2

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 5

0

3

Toro 112-0587

SCREW-TAP

$6.99

$

In Stock, Qty 10

0

4

Toro 112-0663

SCREW-TAP

$

$

Not available

5

Toro 112-5826

MUFFLER-INLET, SINGLE
(Superseded to 112-0361)

$150.99

$

In Stock, only 3 left!

0

6

Toro 112-0527

TIE-CABLE

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-5827

SHIELD-HEAT

$

$

Not available

8

Toro 112-0457

MUFFLER SHIELD ASM

$74.99

$

Usually ships in 3-6 days

0

9

Toro 112-0730

DEFLECTOR-MUFFLER, LONG

$

$

Not available

10

Toro 112-0453

DEFLECTOR-MUFFLER

$20.99

$

In Stock, only 1 left!

0

11

Toro 112-0467

BRACKET-MUFFLER, LH

$10.99

$

Usually ships in 3-6 days

0

12

Toro 112-0466

BRACKET-MUFFLER, RH

$

$

Not available

13

Toro 112-0430

PIPE-EXHAUST

$

$

Not available

14

Toro 112-0388

DRAIN-OIL
(Superseded to 112-6094)

$46.99

$

Usually ships in 3-6 days

0

15

Toro 112-0553

HOSE-DRAIN

$17.99

$

Usually ships in 3-6 days

0

16

Toro 112-0397

CAP-DRAIN, OIL

$

$

Not available

17

Toro 112-0720

HOSE-FUEL

$

$

Not available

18

Toro 112-0573

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

19

Toro 112-3741

RIVET-POP

$

$

Not available
