13AX60RH544 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) ENGINE CONTROL ASSEMBLY Parts Diagram

Lawn Tractor

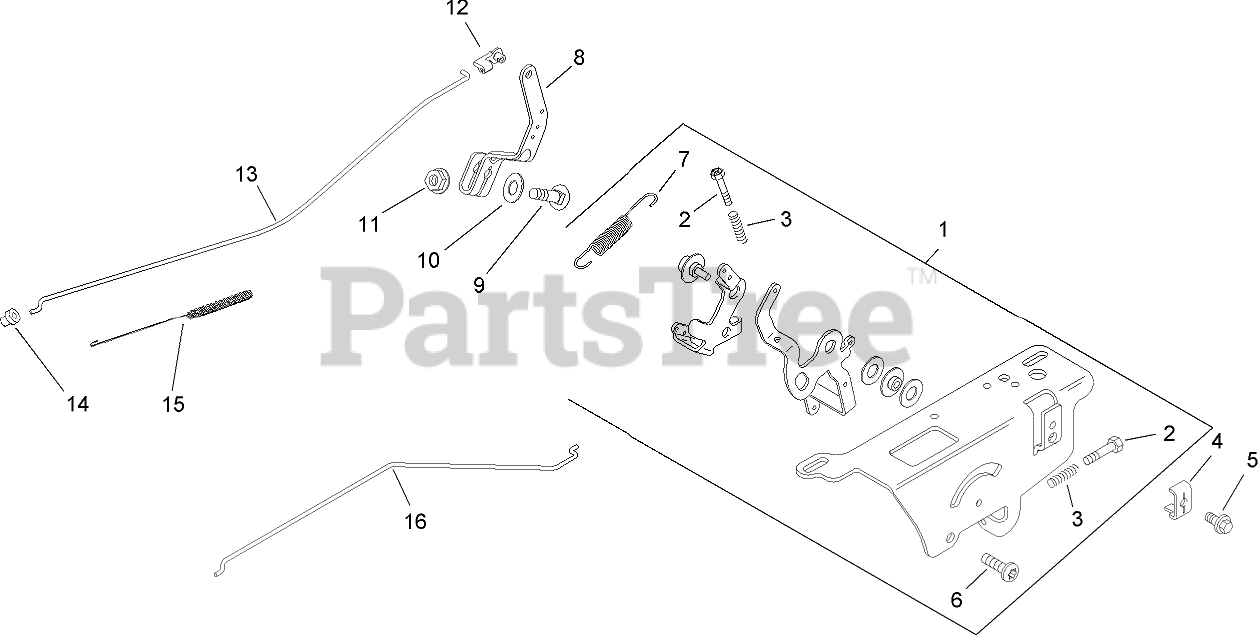

ENGINE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Kohler 20 536 05-S

Speed Control ASM (Includes2-3, 6-7)
(Superseded to 20 536 06-S)

Note: Obtain parts from www.kohlerplus.com

$52.99

$

In Stock, only 1 left!

0

2

Kohler 20 086 10-S

Screw-Thread Forming (M4x0.7x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

3

Kohler 12 089 11-S

Spring-Control, Speed

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

4

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

5

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

6

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

7

Kohler 20 089 11-S

Spring-Governor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

8

Kohler 20 090 02-S

Lever-Governor
(Superseded to 20 090 11-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

Usually ships in 2-5 days

0

9

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

10

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

11

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

12

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 13

0

13

Kohler 20 079 04-S

Linkage-Throttle
(Superseded to 20 079 07-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 3 left!

0

14

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 19

0

15

Kohler 20 089 10-S

Spring-Linkage

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

16

Kohler 20 079 05-S

Linkage-Choke (Single Wire)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0
