13AX60RG848 (LX 423) - Toro Lawn Tractor (2009) MUFFLER AND SHIELD ASSEMBLY Parts Diagram

Lawn Tractor

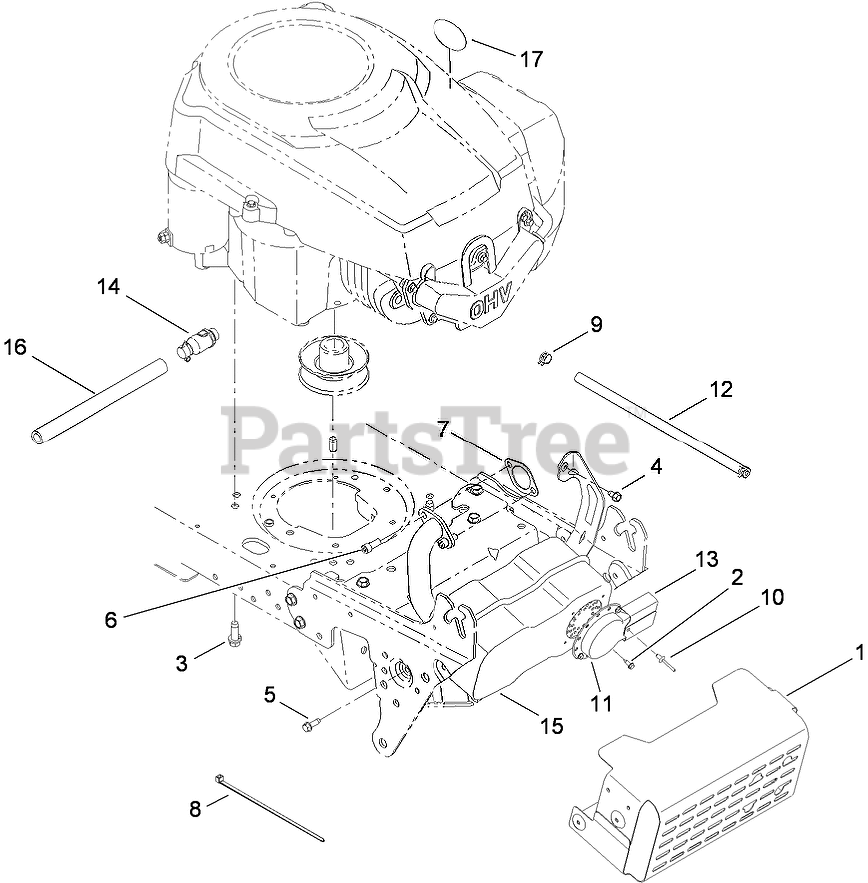

MUFFLER AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 112-6202

SHIELD-MUFFLER

$156.99

$

Usually ships in 3-6 days

0

2

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

3

Toro 112-6163

SCREW-HH, TAP

$11.99

$

Usually ships in 3-6 days

0

4

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

5

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

6

Toro 112-6012

SCREW-HSH

$7.49

$

In Stock, only 2 left!

0

7

Toro 112-6203

GASKET-EXHAUST
(Superseded to 88-4410)

$19.99

$

In Stock, Qty 6

0

8

Toro 112-0527

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

9

Toro 112-0573

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 112-3741

RIVET-POP

$

$

Not available

11

Toro 112-0453

DEFLECTOR-MUFFLER

$23.99

$

In Stock, only 1 left!

0

12

Toro 112-0720

HOSE-FUEL

$

$

Not available

13

Toro 112-0730

DEFLECTOR-MUFFLER, LONG

$

$

Not available

14

Toro 110-9890

Drain-Oil

$29.99

$

Usually ships in 3-6 days

0

15

Toro 112-6204

MUFFLER-SINGLE, KOHLER

$

$

Not available

16

Toro 112-0553

HOSE-DRAIN

$19.99

$

Usually ships in 3-6 days

0

17

Toro 112-5960

DECAL-CHECK OIL

$

$

Not available
