13AX60RG744 (LX 420) - Toro Lawn Tractor (SN: 1L215B10000 & Above) (2006) FUEL SYSTEM ASSEMBLY Parts Diagram

Lawn Tractor

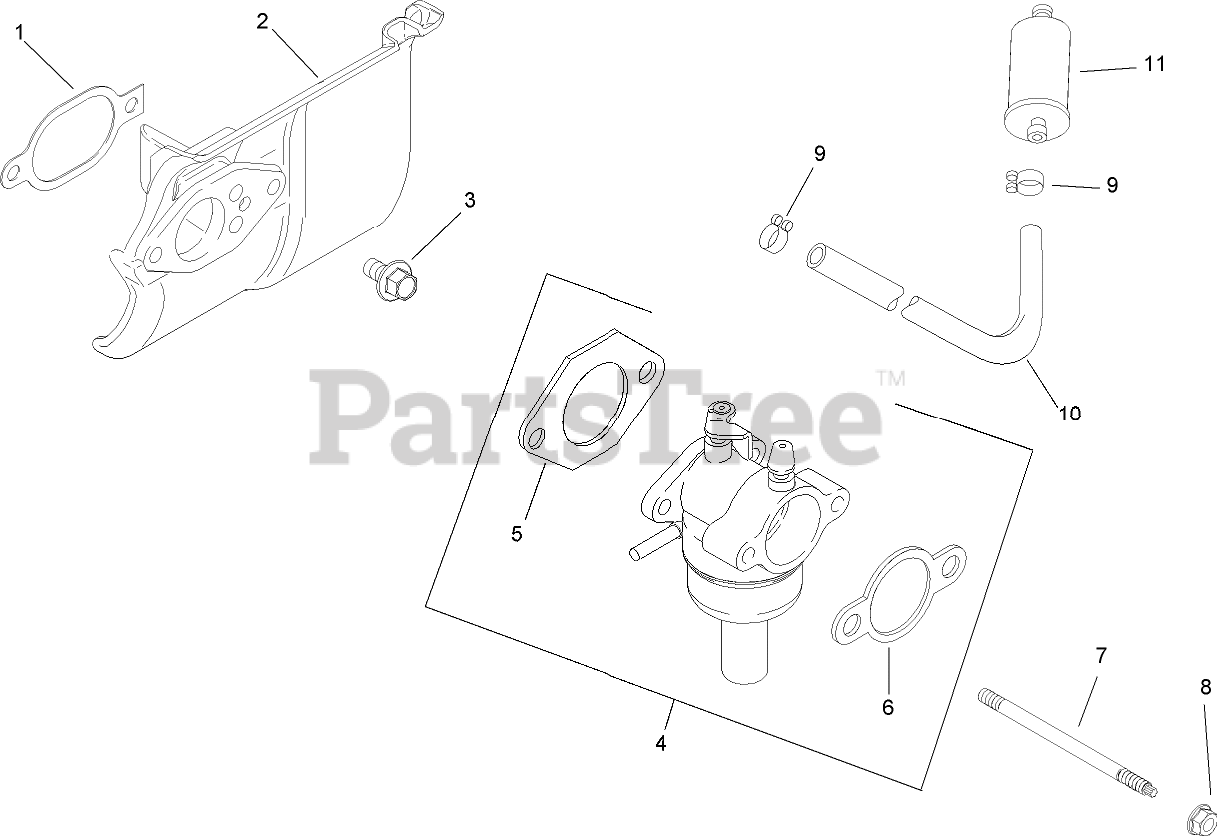

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 041 07-S

Gasket-Deflector, Heat
(Superseded to 20 041 17-S)

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, only 2 left!

0

2

Kohler 20 265 01-S

Deflector-Heat
(Superseded to 20 265 09-S)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

Usually ships in 2-5 days

0

3

Kohler M-651020-S

Screw-Flange, Hex (M6x1.0x20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

4

2085316-S

Carburetor ASM w/Gaskets (Includes 5-6)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

7

Kohler 20 072 05-S

Stud-Mounting, Carburetor (M6X1.0X100)
(Superseded to 20 072 10-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

8

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

9

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

10

2035301-S

Line-Fuel, 7 Inch (filter to carb)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Toro 98021

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

11

Toro 98021

Filter-Fuel

Note: Obtain from your local Toro dealer

$8.99

$

In Stock, Qty 20+

0

12

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, only 3 left!

0

13

Kohler 12 755 110-S

Choke Shaft Kit

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

14

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

15

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$35.99

$

In Stock, Qty 7

0

16

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Obtain parts from www.kohlerplus.com

$135.99

$

In Stock, only 1 left!

0

17

Kohler 12 757 37-S

Bowl Replacement Kit (w/Gaskets)

Note: Not illustrated

$16.99

$

In Stock, only 4 left!

0

18

Kohler 12 454 03-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0
