13AX60RG744 (LX 420) - Toro Lawn Tractor (SN: 1L215B10000 & Above) (2006) DECK ASSEMBLY Parts Diagram

Lawn Tractor

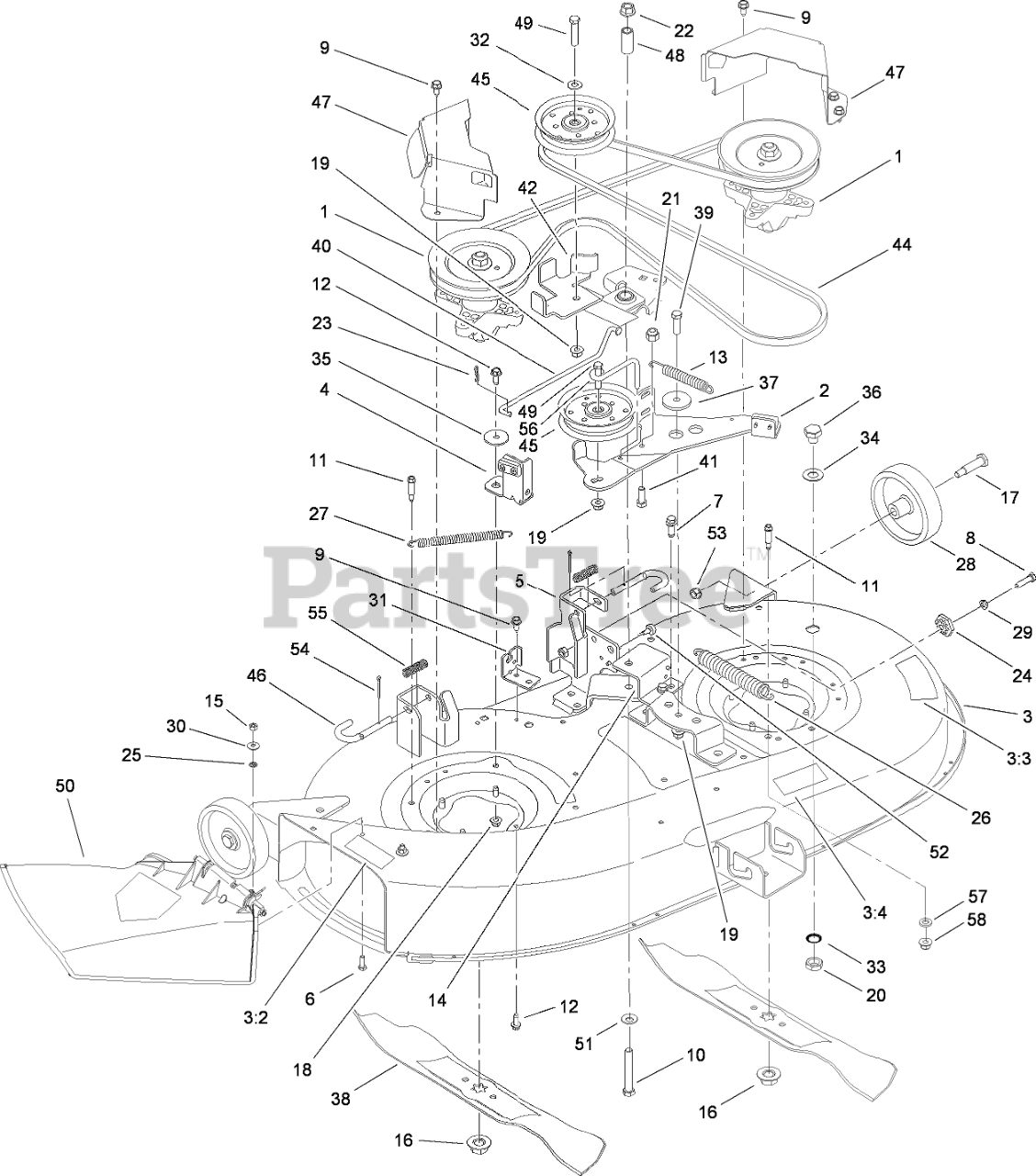

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0460

SPINDLE ASM

$149.99

$

In Stock, Qty 6

0

2

Toro 112-0606

DECK BRAKE ASM

$

$

Not available

3

Toro 112-5857

DECK AND DECAL ASM

$

$

Not available

3:2

Toro 112-1267

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

3:3

Toro 112-1265

DECAL-DANGER

$

$

Not available

3:4

Toro 112-1270

DECAL-ROUTING, BELT

$

$

Not available

4

Toro 112-3742

BRAKE ASM

$82.99

$

Usually ships in 3-6 days

0

5

Toro 112-0413

LH HANGER BRACKET ASM

$74.99

$

In Stock, only 3 left!

0

6

Toro 112-0499

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-0663

SCREW-TAP

$

$

Not available

8

Toro 112-0373

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

9

Toro 112-0472

SCREW-HH, TAP

$6.99

$

In Stock, only 1 left!

0

10

Toro 112-3745

SCREW-HH

$16.99

$

Usually ships in 3-6 days

0

11

Toro 112-5918

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

12

Toro 112-0395

SCREW-HWH

$10.99

$

In Stock, Qty 19

0

13

Toro 112-3746

SPRING-EXTENSION

$16.99

$

In Stock, Qty 5

0

14

Toro 112-5801

BRACKET-SUPPORT, PIVOT

$47.99

$

Usually ships in 3-6 days

0

15

Toro 112-0522

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

16

Toro 112-0330

NUT-LOCK, FLANGE

$9.99

$

In Stock, Qty 9

0

17

Toro 112-0334

BOLT-SHOULDER

$12.99

$

In Stock, Qty 11

0

18

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 3 left!

0

19

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 5

0

20

Toro 112-0351

NUT-HEX

$9.99

$

Usually ships in 3-6 days

0

21

Toro 112-5821

NUT-LOCK, HEX

$5.49

$

Usually ships in 3-6 days

0

22

Toro 112-0859

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

23

Toro 112-0459

PIN-COTTER

$

$

Not available

24

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$23.99

$

In Stock, only 1 left!

0

25

Toro 112-0623

RETAINER-BOLT

$

$

Not available

26

Toro 112-0349

SPRING

$33.99

$

In Stock, only 1 left!

0

27

Toro 112-0528

SPRING-EXTENSION

$24.99

$

In Stock, only 1 left!

0

28

Toro 112-0337

WHEEL-DECK, REAR

$14.99

$

In Stock, only 2 left!

0

29

Toro 112-0366

WASHER-LOCK

$

$

Not available

30

Toro 112-0485

WASHER-SPRING

$6.99

$

In Stock, only 1 left!

0

31

Toro 112-0718

BRACKET-CABLE, DECK
(Superseded to 119-8462)

$

$

Not available

32

Toro 112-0572

WASHER-FLAT

$

$

Not available

33

Toro 112-0922

WASHER-LOCK

$

$

Not available

34

Toro 112-0339

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

35

Toro 112-3747

SPACER-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

36

Toro 112-0577

PLUG

$13.99

$

Usually ships in 3-6 days

0

37

Toro 112-0584

SPACER-SHOULDER

$39.99

$

In Stock, only 2 left!

0

38

Toro 112-0315

BLADE

$31.99

$

In Stock, Qty 20+

0

39

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

40

Toro 112-3748

ROD-BRAKE

$30.99

$

In Stock, only 1 left!

0

41

Toro 112-0855

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

42

Toro 112-3743

IDLER ASM
(Superseded to 112-6064)

$83.99

$

Usually ships in 3-6 days

0

44

Toro 112-5800

BELT-V TYPE

$67.99

$

In Stock, only 1 left!

0

45

Toro 112-0314

PULLEY-IDLER

$51.99

$

In Stock, only 2 left!

0

46

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$20.99

$

In Stock, only 2 left!

0

47

Toro 112-0630

COVER-BELT

$38.99

$

In Stock, only 1 left!

0

48

Toro 112-3749

SPACER

$17.99

$

Usually ships in 3-6 days

0

49

Toro 112-0513

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

50

Toro 112-0353

DISCHARGE CHUTE ASM

$165.99

$

In Stock, only 1 left!

0

51

Toro 112-0481

WASHER-BELL

$5.49

$

Usually ships in 3-6 days

0

52

Toro 112-1016

BUMPER

$10.99

$

Usually ships in 3-6 days

0

53

Toro 112-0385

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 7

0

54

Toro 112-0412

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

55

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

56

Toro 112-5879

ROD-KEEPER, BELT

$9.99

$

In Stock, only 2 left!

0

57

Toro 112-5919

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

58

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 1 left!

0
