13AX60RG544 (LX 420) - Toro Lawn Tractor (SN: 1L215B10000 & Above) (2006) PTO ENGANGE ASSEMBLY Parts Diagram

Lawn Tractor

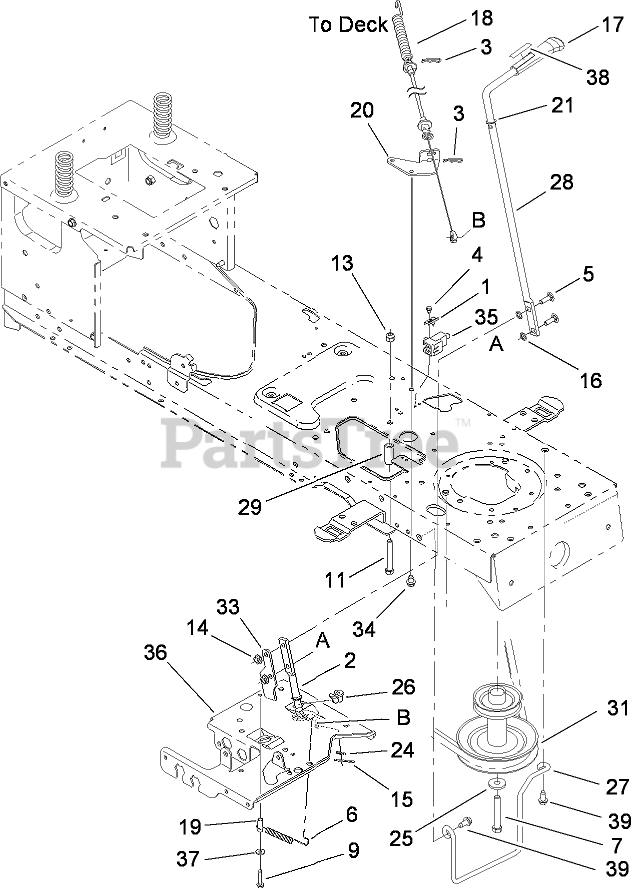

PTO ENGANGE ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0671

PLATE-SWITCH

$

$

Not available

2

Toro 112-0658

LEVER-ENGAGE, PTO

$

$

Not available

3

Toro 112-0398

PIN-CLICK

$27.99

$

In Stock, only 4 left!

0

4

Toro 112-0651

SCREW-TAP

$

$

Not available

5

Toro 112-0598

BOLT-CARR

$

$

Not available

6

Toro 112-0567

SPRING-EXTENSION

$16.99

$

In Stock, only 1 left!

0

7

Toro 112-0844

SCREW-HH

$16.99

$

Usually ships in 3-6 days

0

9

Toro 112-0843

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 112-0700

SCREW-HH
(Superseded to 112-6009)

$13.99

$

Usually ships in 3-6 days

0

13

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

14

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

15

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

16

Toro 112-0645

NUT-PUSH

$7.49

$

Usually ships in 3-6 days

0

17

Toro 112-0449

KNOB-PTO

$20.99

$

Usually ships in 3-6 days

0

18

Toro 112-0504

CABLE-ENGAGE, DECK

$82.99

$

In Stock, only 3 left!

0

19

Toro 112-0644

SPACER

$

$

Not available

20

Toro 112-0649

BRACKET-CABLE

$

$

Not available

21

Toro 112-0498

WASHER-FLAT

$5.99

$

Usually ships in 3-6 days

0

24

Toro 112-0601

WASHER-FLAT

$

$

Not available

25

Toro 112-0380

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

26

Toro 112-0384

BEARING-FLANGE, HEX (SPLIT)

$6.99

$

Usually ships in 3-6 days

0

27

Toro 112-0609

ROD-KEEPER, BELT

$38.99

$

Usually ships in 3-6 days

0

28

Toro 112-0393

HANDLE-ENGAGE, DECK

$60.99

$

Usually ships in 3-6 days

0

29

Toro 112-0433

SPACER

$

$

Not available

31

Toro 112-0329

PULLEY-ENGINE

$

$

Not available

33

Toro 112-0516

BRACKET-STOP

$

$

Not available

34

Toro 112-0676

SCREW-TAP

$

$

Not available

35

Toro 112-0455

SWITCH-INTERLOCK

$45.99

$

Usually ships in 3-6 days

0

36

Toro 112-0681

BRACKET-SUPPORT, STEERING

$89.99

$

In Stock, only 3 left!

0

37

Toro 112-3695

WASHER-FLAT
(Superseded to 112-5989)

$7.49

$

Usually ships in 3-6 days

0

38

Toro 112-3704

DECAL-HANDLE, PTO

$

$

Not available

39

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0
