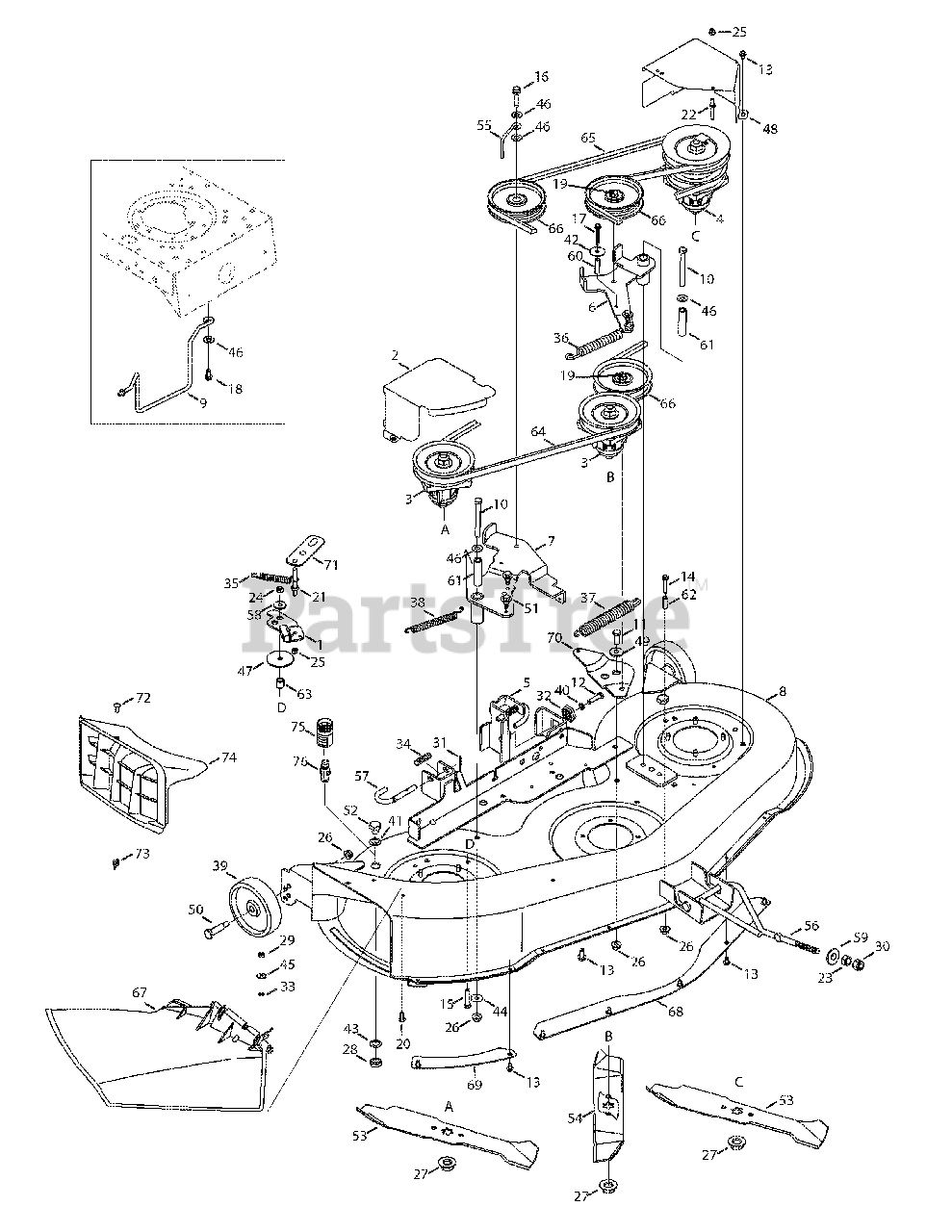

13AX60KH066 - Troy-Bilt Super Bronco Lawn Tractor (2009) Mowing Deck 46 Inch Parts Diagram

Super Bronco Lawn Tractor

Mowing Deck 46 Inch Parts Diagram

  • Title

1

Troy-Bilt 97116

Deck Brake Assembly

$52.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 17258E-0637

Deck Belt Cover RH

$54.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 918-0430B

Spindle Assembly
(Superseded to 918-0240C)

$136.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 619-04205

Spindle Housing with hole
(Superseded to 753-07015)

Note: Not shown

$57.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 738-0927

Spindle Shaft:4.450 LG.

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 748-0434

Spacer:.750 x 1.150 x .230

Note: Not shown

$4.49

$

In Stock, Qty 5

0

3

Troy-Bilt 750-04936

Spacer:.792 x 1.060 x 1.860

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 756-1187

Deck Puley:5.00 Dia

Note: Not shown

$38.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 918-04134C

Double Pulley Spindle Assy.
(Superseded to 918-04134D)

$164.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0315

Flat Washer:.760 x 1.50 X .120

Note: Not shown

$6.99

$

In Stock, Qty 6

0

4

Troy-Bilt 938-1128

Spindle Shaft:6.58 LG.

Note: Not shown

$46.99

$

In Stock, Qty 13

0

4

Troy-Bilt 941-0919

Ball BEaring:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 750-04440

Spacer:.792 x 1.060 x 1.680

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 750-04936

Spacer:.792 x 1.060 x 1.860

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 750-1304

Spacer:.792 x 1.060 x .400

Note: Not shown

$5.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 756-04094

Deck Pulley:5.00 Dia x .80

Note: Not shown

$33.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 756-1188

Deck Pulley:5.75 Dia

Note: Not shown

$36.99

$

In Stock, Qty 8

0

5

Troy-Bilt 683-0254B-0637

Deck Hanger Bracket Assy.
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 683-04250A-0637

Idler Bracket Assembly LH

$54.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 683-04251A-0637

Idler Bracket Assembly RH

$46.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 683-04306-0637

Deck Assembly
(Superseded to 983-04306A-0637)

$1380.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 683-04414-0637

Belt Keeper Bracket

$25.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-04754

Hex Screw, 3/8-16 x 3.50

$7.49

$

In Stock, Qty 5

0

11

Troy-Bilt 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

13

Troy-Bilt 710-0599

Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0805

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-1007

Sems Screw, 3/8-16 x 1.50

$6.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-1026

Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

18

Troy-Bilt 710-04484

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-1315

Screw, 3/8-16, x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-3015

Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 711-04636

Pin, 1/4-20: 3/8 x 2.685

$6.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 911-0993

Belt Guard Pin, 1/4 x 1.43 lg.

$4.49

$

In Stock, Qty 14

0

23

Troy-Bilt 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

29

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

30

Troy-Bilt 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

33

Troy-Bilt 726-0233

Push Nut, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 932-0306A

Compression Spring .531 x 1.75

$8.49

$

In Stock, only 2 left!

0

35

Troy-Bilt 932-0429A

Extension Spring, .50 x 3.97 Lg.

$8.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 732-04400

Extension Spring, .75 x 6.835 Lg.

$11.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 932-0594A

Extension Spring, .91 x 7.33 Lg.

$14.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 732-0814

Extension Spring, .56 x 5.52 lg.

$7.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 734-0973

Deck Wheel 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 936-0211

Flat Washer, .285 x 1.25 x .06
(Superseded to 736-0211)

$6.99

$

In Stock, only 3 left!

0

43

Troy-Bilt 736-0225

Lock Washer, 5/8 Int. Tooth

$4.49

$

In Stock, only 2 left!

0

44

Troy-Bilt 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

45

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 736-0418A

Flat Washer, .406 x .875 x .059

$10.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 783-1348D-0637

Deck Belt Cover LH

$50.99

$

In Stock, only 3 left!

0

49

Troy-Bilt 938-0347

Shoulder Spacer, .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 938-0373

Shoulder Bolt .496 x 1.525: 3/8-16

$9.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 738-04091A

Shoulder Screw .43 x .29:5/16-18

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 738-04146

Bolt Plug, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 942-0611A

Blade, 3 in 1 star, 16.28" Lg.

$29.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 942-0612A

Blade, 3 in 1 star, 14.88" Lg.

$29.99

$

In Stock, Qty 13

0

55

Troy-Bilt 747-04530

Belt Keeper Rod

$7.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 747-04645

Front Deck Adjustment Rod

$46.99

$

In Stock, Qty 5

0

57

Troy-Bilt 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

58

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 10

0

60

Troy-Bilt 750-04456

Spacer, .260 x .372 x 1.420 Lg.

$7.49

$

In Stock, only 3 left!

0

61

Troy-Bilt 750-04999

Spacer, .380 x .625 x 2.515 Lg.

$11.99

$

In Stock, Qty 5

0

62

Troy-Bilt 750-0566A

Spacer, .260 x .372 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

63

Troy-Bilt 750-1320

Spacer, .375 x .63 x .595 Lg.

$

$

Not available

64

Troy-Bilt 954-0349

V-Belt, 79.10 Lg.

$40.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 954-04122

V-Belt, 90.24 Lg.

$41.99

$

In Stock, Qty 14

0

66

Troy-Bilt 756-04129B

Idler Pulley, 4.25" dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 931-1032B

Discharge Chute
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

68

Troy-Bilt 783-0141-0637

Center Deck Skirt

$65.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 783-0142-0637

RH Deck Skirt

$48.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 783-04641A-0637

Idler Bracket

$

$

Not available

71

Troy-Bilt 783-05321-0637

Brake Bracket

$

$

Not available

72

Troy-Bilt 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 731-05264

Mulch Plug, 46" Deck

$28.99

$

In Stock, only 2 left!

0

75

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0
