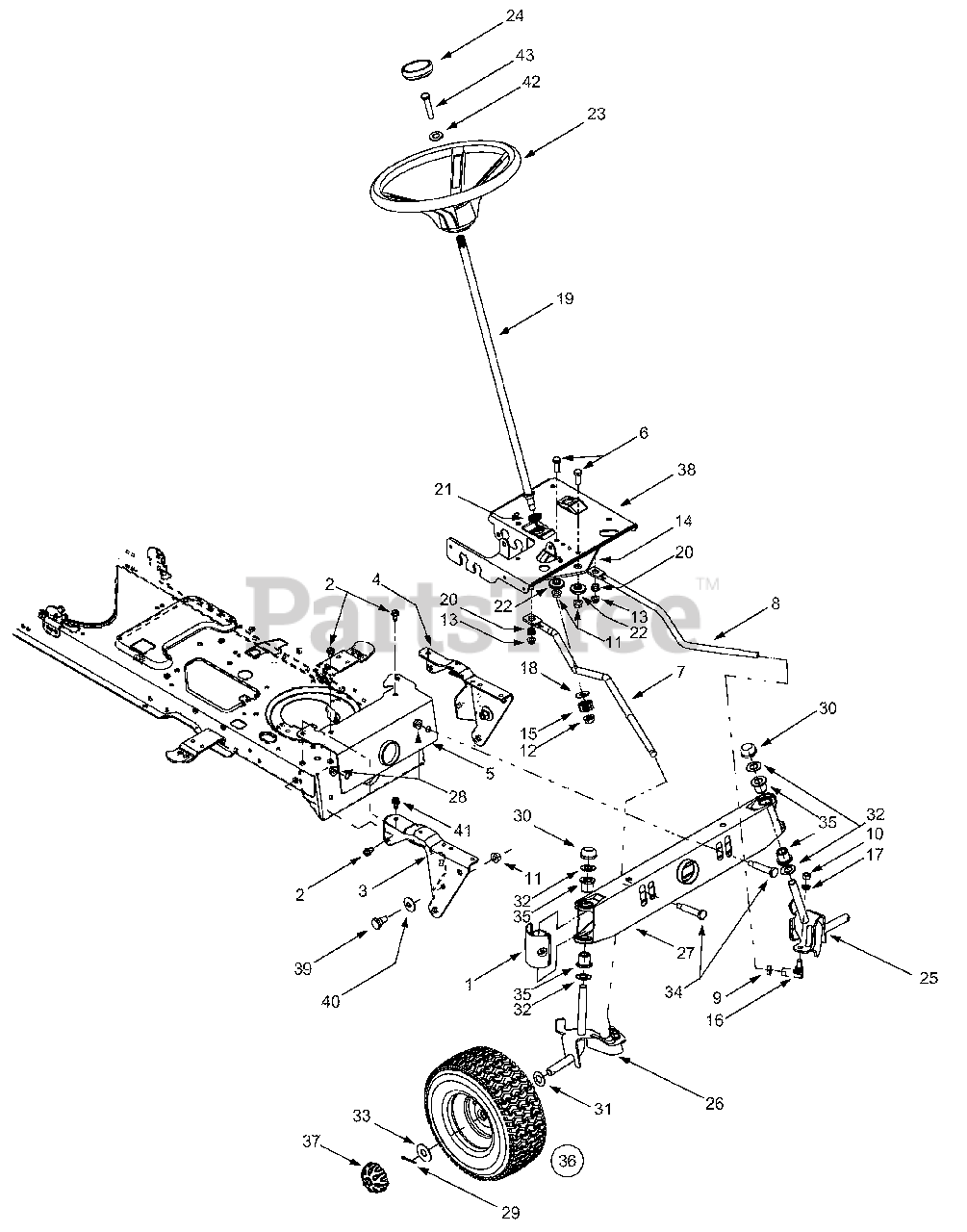

13AX609G063 - Troy-Bilt Lawn Tractor (2001) Steering and Front Axle Parts Diagram

Lawn Tractor

Steering and Front Axle Parts Diagram

  • Title

1

Troy-Bilt 731-1291A

Pivot Bar End Cap
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 11

0

2

Troy-Bilt 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 783-0726A

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

Troy-Bilt 783-0726A-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0726A-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0726A-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0726A-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0726A-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0726A-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

Troy-Bilt 783-0727

LH Pivot Support Bracket
(Superseded to 783-0727D)

Variations

Troy-Bilt 783-0727-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0727-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0727-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0727-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0727-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0727-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

Troy-Bilt 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Troy-Bilt 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-1408

RH Drag Link

$

$

Not available

8

Troy-Bilt 711-1409A

LH Drag Link

$

$

Not available

9

Troy-Bilt 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

Troy-Bilt 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-0372

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 631-0027

Steering Wheel, 13.25
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 731-0220

Steering Wheel Cap, Round
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 638-0019

LH Axle Assembly, .625 Diameter
(Superseded to 938-0019A)

$57.99

$

In Stock, Qty 10

0

26

Troy-Bilt 638-0020

RH Axle Assembly, .625 Diameter
(Superseded to 938-0020A)

$

$

Not available

27

Troy-Bilt 683-0128A

Pivot Bar
(Superseded to 683-0128B)

Note: (stamped steel)

Variations

Troy-Bilt 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

Troy-Bilt 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

Troy-Bilt 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

Troy-Bilt 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 726-0214

Push Cap, .625

$10.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

Troy-Bilt 741-0659

Flange Bearing, .632 ID x .937 OD
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 5

0

36

Troy-Bilt 634-0105B-0911

Wheel Assembly Complete, 15 x 6 x 6

$249.99

$

In Stock, only 4 left!

0

36

Troy-Bilt 934-0172A-0662

Rim

Note: (Includes bearings & valve stem) (not shown)

$103.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 734-1731

Tire Only, Square Shoulder

Variations

Troy-Bilt 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

Troy-Bilt 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 731-2290

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-0653D

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-0653D-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5
