13AX609G063 - Troy-Bilt Lawn Tractor (2001) Differential Assembly Parts Diagram

Lawn Tractor

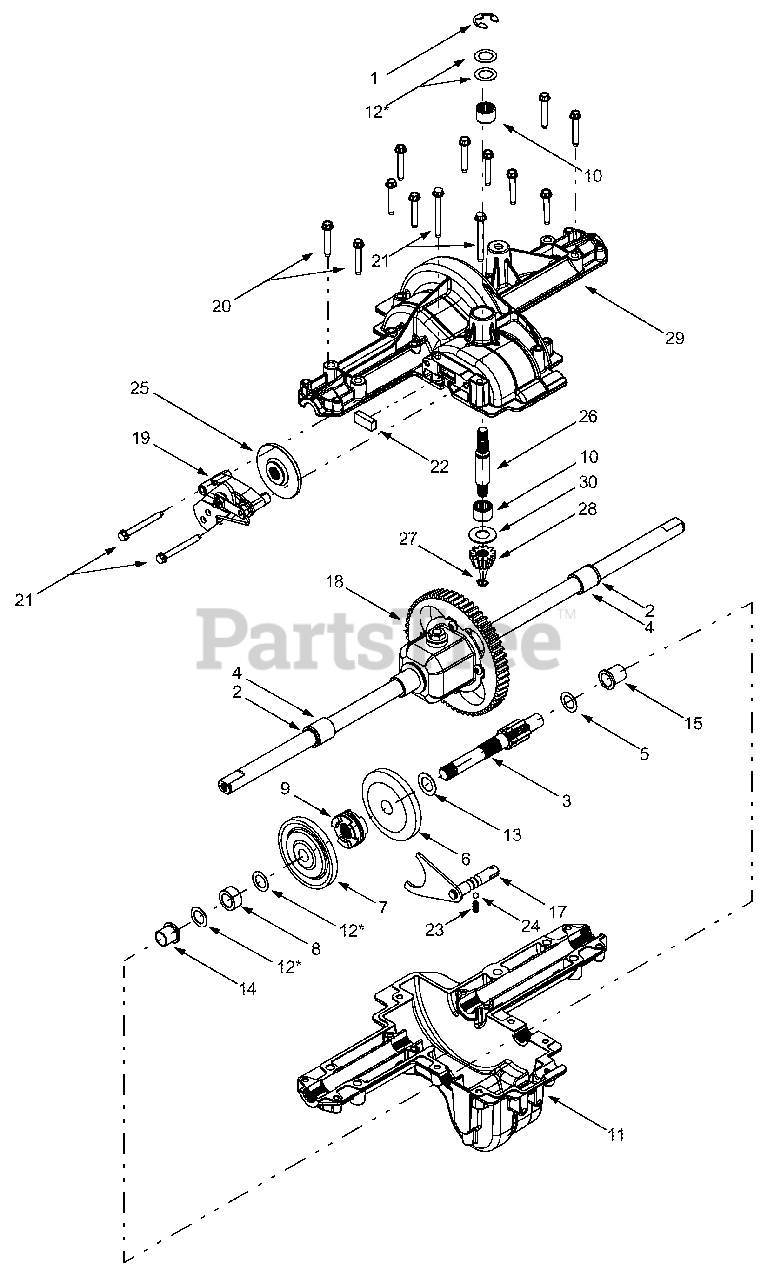

Differential Assembly Parts Diagram

  • Title

1

Troy-Bilt 916-0231

E-ring, .75
(Superseded to 716-0231)

$

$

Not available

2

Troy-Bilt 921-0338

Seal, .75 x 1.0 x .125

$7.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 711-1431

Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 941-0340

Sleeve Bearing, .75 x .1.0 x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

5

Troy-Bilt 936-0495

Thrust Washer, 1.0 x .632 x .0
(Superseded to 736-0495)

$4.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 917-1362

42-tooth Bevel Gear

$51.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 917-1363

42-tooth Bevel Gear

Note: Use Only for units built after 11/1/99

$51.99

$

Usually ships in 3-6 days

0

7

MTD 717-1422

42-tooth Bevel Gear

Note: Part is NLA, Units from 6/15/99-11/1/99 will need to order 918-0551A

$

$

Not available

8

Troy-Bilt 750-1234

Spacer, .633 x 1.0 x .513

$

$

Not available

9

Troy-Bilt 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 941-0525

Needle Bearing, .625 x .875

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 719-0394

Lower Housing

$177.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 936-0336

Flat Washer, 5/8 x 1.0 x .030 (12A)

Note: Use applicable flat washer (12A, 12B or 12C) in this application allowing proper end-play as instructed in MTD's Service Manual.

$4.49

$

In Stock, Qty 7

0

12

Troy-Bilt 936-0337

Flat Washer, 5/8 x 1.0 x .040 (12B)

Note: Use applicable flat washer (12A, 12B or 12C) in this application allowing proper end-play as instructed in MTD's Service Manual.

$4.49

$

In Stock, Qty 9

0

12

Troy-Bilt 936-0349

Flat Washer, 5/8 x 1.0 x .020 (12C)

Note: Use applicable flat washer (12A, 12B or 12C) in this application allowing proper end-play as instructed in MTD's Service Manual.

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-0519

Flat Washer, .70 x 1.125 x .031
(Superseded to 736-0519)

$

$

Not available

14

Troy-Bilt 941-0336

Flange Bearing, 5/8 x 3/4 x 3/4

$11.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 941-0337

Flange Bearing, 5/8 x 3/4 x 15/16

$10.99

$

In Stock, Qty 6

0

16

Troy-Bilt 750-1238

Spacer, .635 x 1.0 x .27

$

$

Not available

17

Troy-Bilt 611-0133

Detent Shaft Assembly

$

$

Not available

18

Troy-Bilt 618-0424

Differential Assembly
(Superseded to 918-04097A)

Note: 918-04097A

$

$

Not available

19

Troy-Bilt 961-0006

Brake Assembly

$46.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-1206

Self-tapping Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

22

Troy-Bilt 917-0678

Brake Pad

$7.49

$

In Stock, only 3 left!

0

23

Troy-Bilt 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 741-0862

Detent Ball

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 711-1430

Input Shaft

$

$

Not available

27

Troy-Bilt 916-0108

Retaining Ring, .437
(Superseded to 716-0108)

$5.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 717-1464

14-tooth Bevel Pinion

Note: Use Only for units built after 11/1/99

$22.99

$

In Stock, only 2 left!

0

28

MTD 717-1571

12-tooth Bevel Pinion

Note: Part is NLA, Units from 6/15/99-11/1/99 will need to order 918-0551A

$

$

Not available

29

Troy-Bilt 719-0391A

Upper Housing
(Superseded to 953-04023)

Note: 953-04023

$200.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 936-0337

Thrust Washer, .635 x 1.25 x .042

$4.49

$

In Stock, Qty 9

0
