13AX609G063 - Troy-Bilt Lawn Tractor (2001) Deck Assembly Parts Diagram

Lawn Tractor

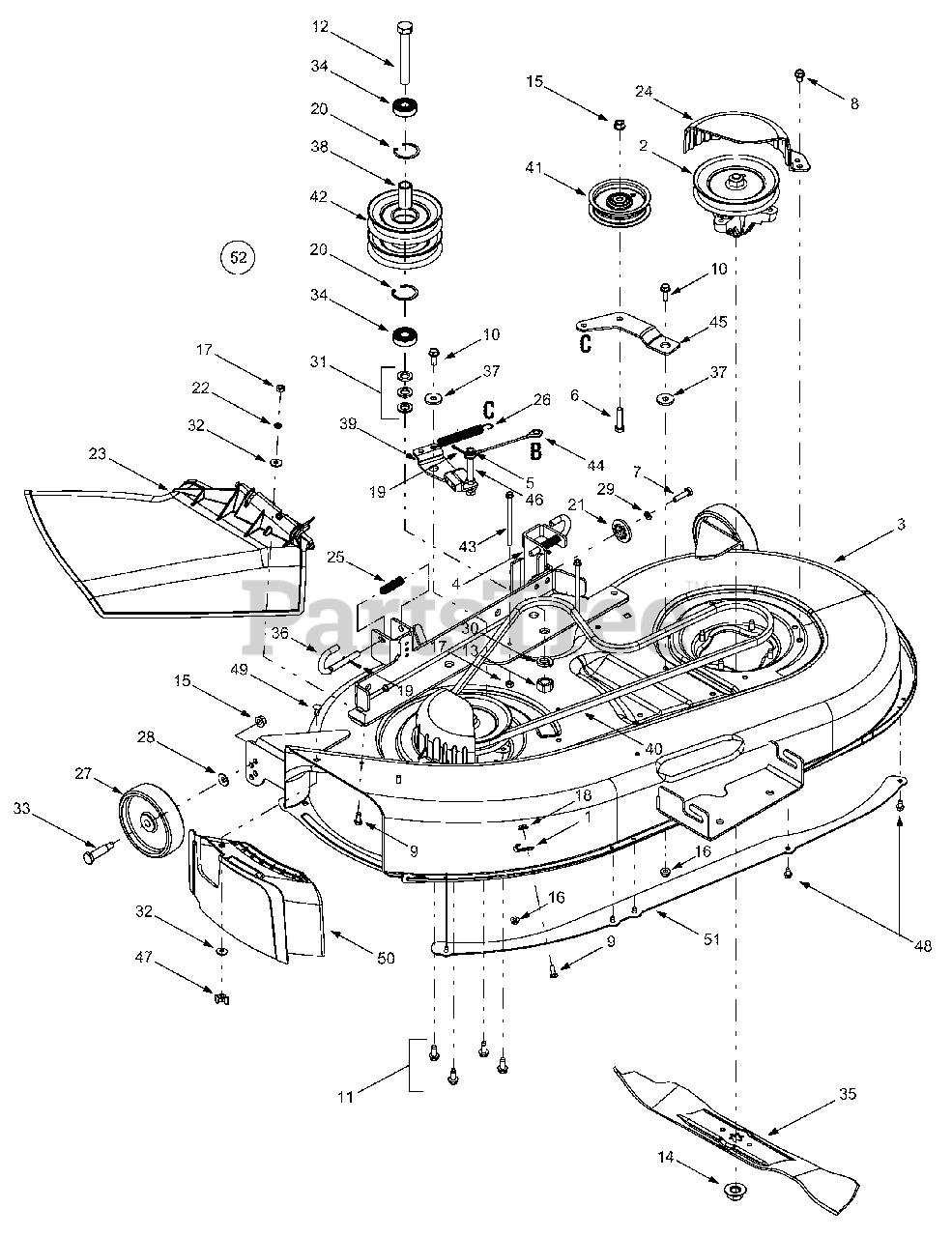

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Troy-Bilt 618-0565

Spindle Assembly, 5.75 Dia.
(Superseded to 918-0574C)

$

$

Not available

Troy-Bilt 756-0980

Pulley Only

$

$

Not available

3

Troy-Bilt 683-0198D

42-inch Deck Shell
(Superseded to 983-0198G)

Variations

Troy-Bilt 683-0198D-0637

SHELL ASM-42" DECK - POWDER BLACK (0637)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198D-0650

SHELL ASM-42" DECK - RED METALLIC (0650)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198D-0665

SHELL ASM-42" DECK - YARDMAN GREEN (0665)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198D-0691

SHELL ASM-42" DECK - BLACK JACK (0691)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198D-0716

42" DECK SHELL - CUB YELLOW-99 (0716)

$580.99

$

Usually ships in 3-6 days

0

$580.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 683-0254

Deck Adjustment Bracket Assembly
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

6

Troy-Bilt 710-0520

Hex Cap Screw, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 6

0

7

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3151

Hex Cap Screw, 5/8-18 x .875

$20.99

$

In Stock, Qty 12

0

13

Troy-Bilt 712-0337

Hex Nut, 5/8-18

$4.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

18

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 716-3020

Internal Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

22

Troy-Bilt 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

24

Troy-Bilt 731-2486

Belt Cover
(Superseded to 731-2486A)

$22.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 732-0470A

Extension Spring, .50 x 4.74
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0158

Lock Washer, 5/8

$4.49

$

In Stock, Qty 11

0

31

Troy-Bilt 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 741-0524

Bearing, .625 x 1.574 x .470
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 742-0616

Three-in-one Blade, Star Center, 21.23"
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

37

Troy-Bilt 748-0331

Shoulder Spacer, .625 x .324
(Superseded to 948-0331)

$

$

Not available

38

Troy-Bilt 750-0932A

Spacer, .635 x .88 x 1.72
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

39

Troy-Bilt 683-0440

Deck Brake Assembly

$53.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 754-0498

Deck Belt
(Superseded to 954-0498)

$44.99

$

In Stock, Qty 8

0

41

Troy-Bilt 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 756-1202

Double Pulley, 5.0

$95.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 710-1830

Self-tapping Screw, 1/4-20 x 4.0

$7.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 746-0970

Brake Cable, 5.05

$12.99

$

In Stock, only 4 left!

0

45

Troy-Bilt 783-1291

Idler Bracket
(Superseded to 783-1291A-0637)

Variations

Troy-Bilt 783-1291-0637

Idler Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 3 left!

0

$12.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 711-1534

Pin, 3/8-16, 3/8 x 3.27

$12.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

51

Troy-Bilt 783-1146A

Deck Skirt
(Superseded to 753-0884)

Variations

Troy-Bilt 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

52

MTD 753-0894

Deck Assembly Complete (w/o Mulch Kit)
(Superseded to 953-0894)

Variations

Troy-Bilt 753-0894-0629

KIT-DECK COMPLETE - SILVER FLAKE (0629)

$

$

Not available

Troy-Bilt 753-0894-0637

KIT-DECK COMPLETE - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 753-0894-0638

KIT-DECK COMPLETE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 753-0894-0650

KIT-DECK COMPLETE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 753-0894-0665

KIT-DECK COMPLETE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 753-0894-0691

KIT-DECK COMPLETE - BLACK JACK (0691)

$

$

Not available

$

$
