13AV77KF066 - Troy-Bilt Tuffy Lawn Tractor (2011) Hood & Grille Parts Diagram

Tuffy Lawn Tractor

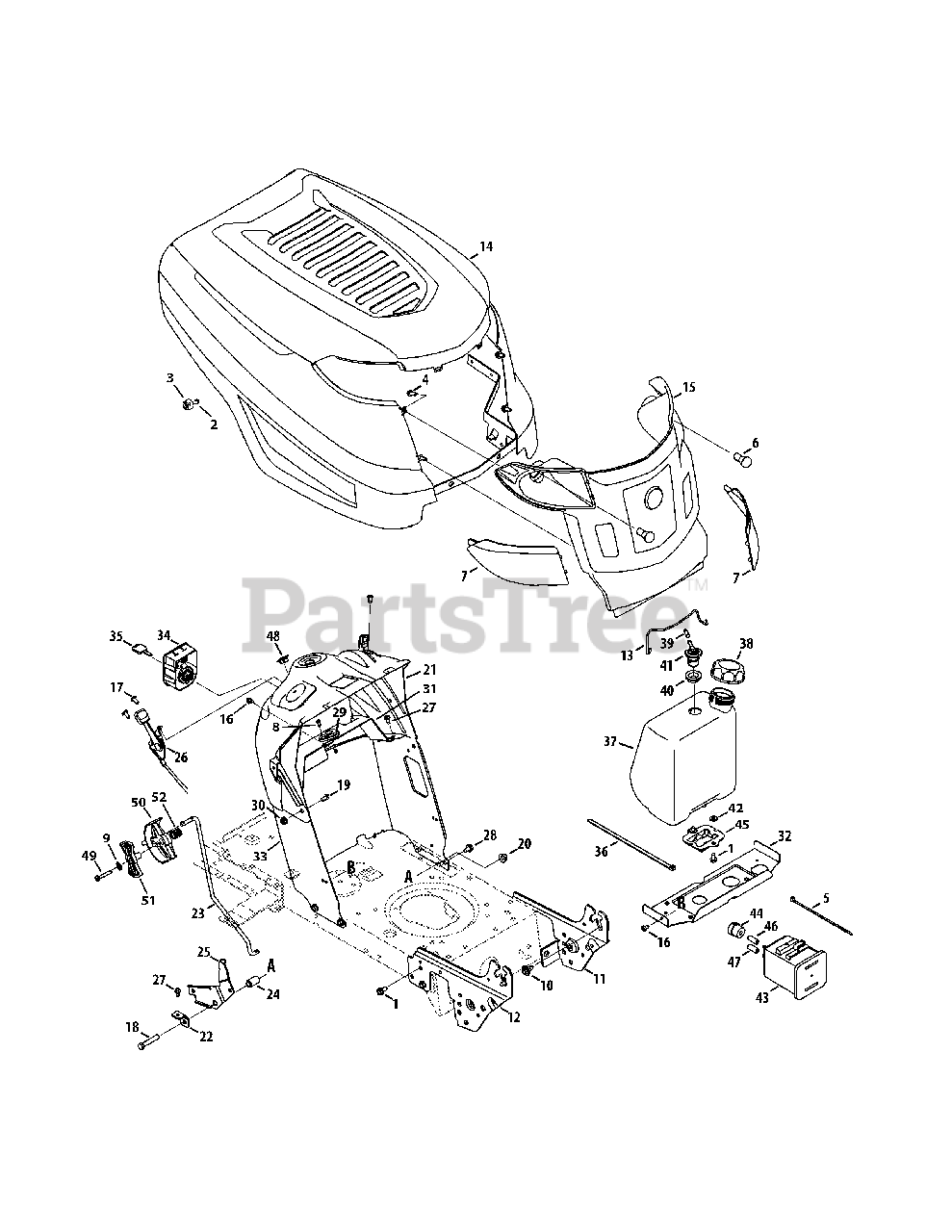

Hood & Grille Parts Diagram

  • Title

1

Troy-Bilt 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-05281

Screw, #12-16 x 1.25

$3.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 731-06404

K-Style Bumper

$9.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-05108

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 925-0963

Miniature lamp 12V socket

$7.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 731-06095

Grill Lens - LH

$12.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 731-06096

Grill Lens - RH

$12.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 736-3006

Lock Washer, 1/4

$6.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 738-04091A

Shoulder Screw .43 x .29

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-05327B-0637

Suppport Bracket LH - Black

$40.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-05327B-0638

Suppport Bracket LH - Red
(Superseded to 783-05327B-0637)

$40.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328A-0637

Suppport Bracket RH - Black
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328A-0638

Suppport Bracket RH - Red
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 683-04448-0637

Battery Rod

$10.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 683-04441-0638

Hood
(Superseded to 683-04441A-0638)

$356.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 631-04272

Grill

$70.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

17

Troy-Bilt 710-04483

Screw 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-3144

Hex Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 7

0

19

Troy-Bilt 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

20

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 931-08054

Dash, Upper
(Superseded to 931-08054A)

$51.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 747-05398

Speed Control Rod

$11.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 750-04465B

Flange Spacer .39 x .671 x 1.095

$4.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 783-04903A

Transmission Speed Latch
(Superseded to 783-04903)

$8.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 783-06991

Transmission Speed Latch

Variations

Troy-Bilt 783-06991-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

26

Troy-Bilt 746-04367

Throttle/Choke Control Cable
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 710-0599

Hex Screw Washer 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0604A

Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 12

0

30

Troy-Bilt 712-04063

Flange lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 783-06785-0637

Bracket, Steering Support - Black
(Superseded to 783-06785C-0637)

$9.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 783-06785-0638

Bracket, Steering Support - Red
(Superseded to 783-06785C-0638)

$9.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 783-04584B-0637

Gas Tank Support Bracket - Black

$19.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 783-04584B-0638

Gas Tank Support Bracket - Red

$17.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-06811-0637

Dash, Lower NWNDW - Black
(Superseded to 783-06811F-0637)

$53.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-06811-0638

Dash, Lower NWNDW - Red
(Superseded to 783-06811F-0638)

$49.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 925-04659

Key Switch Module

$44.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 751-0555B

Fuel Tank, 1.5 Gallons
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 951-04304

Fuel Tank, 1.36 Gallon, CARB
(Superseded to 951-04304B)

Note: Equipped with CARB Fuel Tank

$111.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 951-12179

Fuel Cap
(Superseded to 951-12179C)

Note: EPA Phase III

$38.99

$

In Stock, only 3 left!

0

38

Troy-Bilt 751-0603A

Fuel Cap, 1.5 Gallon
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 951-10947

Fuel Cap, CARB
(Superseded to 951-12426B)

Note: Equipped with CARB Fuel Tank (CA)

$41.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 751-12089-28

Hose Vent, 3/16

$8.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 735-04081

Rubber Grommet

Note: Equipped with CARB Fuel Tank

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 751-12118

Rollover Valve

Note: Equipped with CARB Fuel Tank

$35.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 936-3008

Washer, Flat, .344 x .750 x .120

Note: Equipped with CARB Fuel Tank

$6.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-10589

Canister, Carbon, 5 Gallon

Note: Equipped with CARB Fuel Tank

$72.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 951-10590

Filter, Vent, Canister

Note: Equipped with CARB Fuel Tank

$15.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 951-10610

Bracket., Adapter, Canister

Note: Equipped with CARB Fuel Tank

$23.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 751-10749-14

Hose, Fuel, Low Perm., White

Note: Equipped with CARB Fuel Tank

$15.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 751-10750-28

Hose, Fuel, Low Perm., Yellow

Note: Equipped with CARB Fuel Tank

$

$

Not available

48

Troy-Bilt 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 710-0778

Hex Washer Screw, 1/4-20 x 1.50

$4.49

$

In Stock, only 3 left!

0

50

Troy-Bilt 731-07885

Shift Lever
(Superseded to 731-07885B)

$11.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 731-07895

Index Control
(Superseded to 731-07895A)

$6.49

$

In Stock, Qty 7

0

52

Troy-Bilt 732-04800

Compr. Springing, .72 OD x .78

$3.99

$

Usually ships in 3-6 days

0

Troy-Bilt 925-04082

Harness, LT-5, NRMC,Dual
(Superseded to 925-04567K)

Note: Not shown

$133.99

$

In Stock, only 2 left!

0
