13AV77KF066 - Troy-Bilt Tuffy Lawn Tractor (2010) Mower Deck 38-Inch Parts Diagram

Tuffy Lawn Tractor

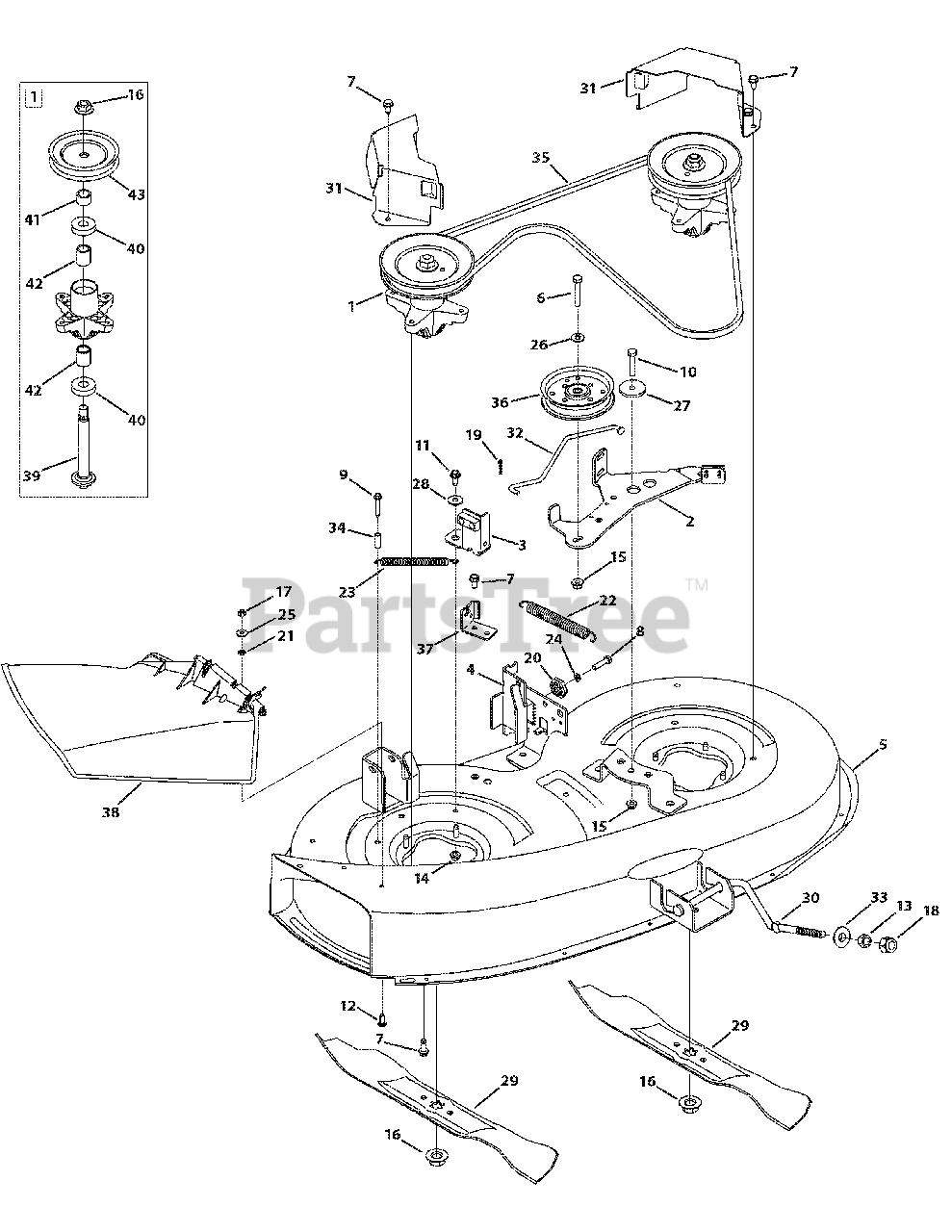

Mower Deck 38-Inch Parts Diagram

  • Title

1

Troy-Bilt 918-04474A

5.75" Pulley Spindle Assembly
(Superseded to 918-04474B)

$120.99

$

In Stock, Qty 8

0

2

Troy-Bilt 683-04138B-0637

Deck Brake Assembly
(Superseded to 683P04138C)

$117.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 83-04138B-0637

Deck Brake Assembly

$

$

Currently unavailable

4

Troy-Bilt 683-04228-0637

LH Deck Hanger Bracket

$104.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 983-04263-0638

38" Deck Assembly - Red

$536.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

18

Troy-Bilt 712-3083

Hexlock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 914-0104

Cotter Pin, .072 Diameter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 917-04074

Deck Adjuster Gear

$13.99

$

In Stock, Qty 14

0

21

Troy-Bilt 726-0233

Push Nut, .25 x .50

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04280B

Extension Spring, .75 x 6.375

$8.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 732-04287

Extension Spring, .500 x 6.375

$15.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 738-04166

Shoulder Spacer, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

29

Troy-Bilt 942-0610A

3 in 1 Blade

$26.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 747-04322

38" Front Adjust Deck Rod

$35.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 783-04602A-0638

Belt Cover - Red
(Superseded to 783-04602C-0638)

$32.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 747-04381

38" Brake Control Rod

$20.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 748-04069

Deck Lift, Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

34

Troy-Bilt 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 954-04062

V Type Belt

$47.99

$

In Stock, Qty 12

0

36

Troy-Bilt 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-04740-0637

Deck Engage Cable Bracket

$10.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 931-1032B

Chute Assembly 38"
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

39

Troy-Bilt 938-04241

Spindle Shaft, 5.50

$34.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 941-0919

Ball Bearing, .787ID x 1.85 OD x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 750-04739

Spacer, .820 x 1.150 x .480 LG

$13.99

$

In Stock, Qty 6

0

42

Troy-Bilt 750-1000

Spacer, .80 x 1.10 x 1.322 LG

$4.49

$

In Stock, Qty 7

0

43

Troy-Bilt 756-1188

Deck Pulley, 5.75

$36.99

$

In Stock, Qty 8
