13AV609H063 - Troy-Bilt Lawn Tractor (2001) Hood & Side Panel Assemblies Parts Diagram

Lawn Tractor

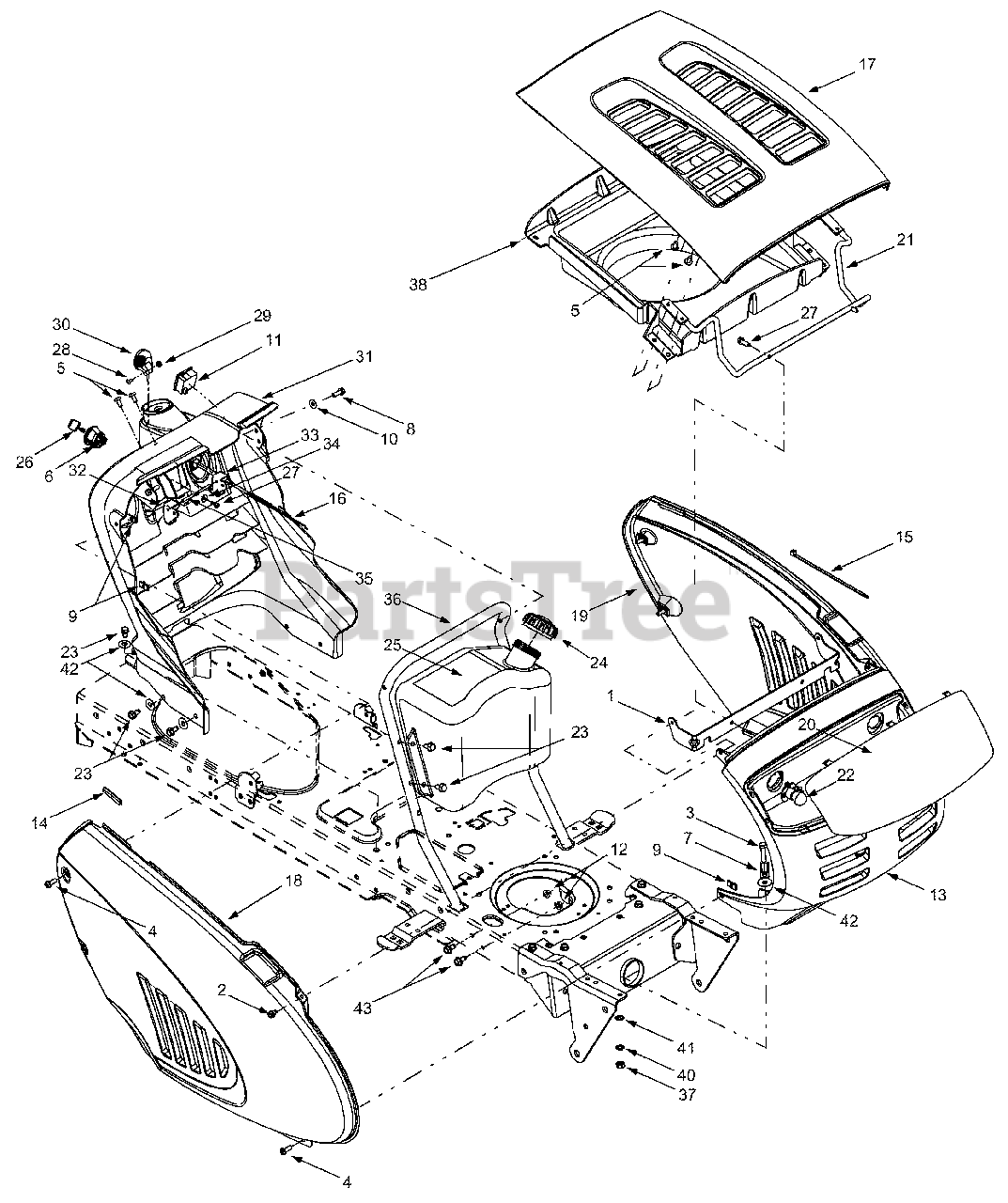

Hood & Side Panel Assemblies Parts Diagram

  • Title

1

Troy-Bilt 783-1346

Grill Support Bracket (9-style)
(Superseded to 783-1346A-0637)

Variations

Troy-Bilt 783-1346-0637

Support Bracket, Grill - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

4

Troy-Bilt 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1017

Truss Phillips Screw, 1/4-20 x .625

$8.49

$

In Stock, Qty 9

0

6

Troy-Bilt 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 725-1976

Systems Indicator Monitor
(Superseded to 925-1976)

$

$

Not available

12

Troy-Bilt 712-3004A

Hex Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 731-2119

Grille (9-style)
(Superseded to 731P2119A)

$

$

Not available

14

Troy-Bilt 731-0511

Trim Strip, 4

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 725-0175

Cable Tie, 3/16 x .05 x 7.4

$

$

Currently unavailable

16

Troy-Bilt 746-1085

Choke Knob/Cable (Model G609G)
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 783-0783

Hood (9-style)
(Superseded to 783-0783A)

Variations

Troy-Bilt 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

18

Troy-Bilt 783-0784

RH Side Panel (9-style)
(Superseded to 783-0784A)

Variations

Troy-Bilt 783-0784-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0784-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0784-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

19

Troy-Bilt 783-0785

LH Side Panel (9-style)

Variations

Troy-Bilt 783-0785-0638

PANEL:SD:LH 9 STYLE - MTD/TROY-BILT RED (0638)

$142.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0785-0691

PANEL:SD:LH 9 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0785-0709

PANEL:SD:LH 9 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

20

Troy-Bilt 731-2119

Headlight Lens (9-style)
(Superseded to 731P2119A)

$

$

Not available

21

MTD 747-1162

Hood Hinge Rod

$

$

Not available

22

Troy-Bilt 625-0051

Headlight Assembly
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

25

MTD 751-0658B

Fuel Tank, Three-gallon (Model G609G)

$

$

Not available

Troy-Bilt 751-0659A

Fuel Tank, Two-gallon (Model D609G)
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

26

Troy-Bilt 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

Troy-Bilt 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

28

Troy-Bilt 710-3217

Truss Phillips Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

29

Troy-Bilt 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

30

Troy-Bilt 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 731-2122

Dash Panel, 8/9-style, Manual PTO
(Superseded to 731-2122C)

$

$

Not available

32

Troy-Bilt 731-2226

Cruise Control Button

$16.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 731-2227

Parking Brake Button

$

$

Not available

34

Troy-Bilt 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 749-1087A

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

Troy-Bilt 749-1087A-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

37

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-2270

Hood Plenum (Model G609G)
(Superseded to 731-2270A)

$

$

Not available

~N/A

Hood Plenum (Model D609G)

$

$

Not available

?39

Troy-Bilt 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 15

0

40

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-1238

Screw, 5/16-18 x .875 (Grade 5)
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 629-0469A

Headlight Wire Harness
(Superseded to 929-0469B)

Note: (Not Shown)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 629-1071

Tractor Wire Harness
(Superseded to 929-1071)

Note: (Not Shown)

$314.99

$

Usually ships in 3-6 days

0
