13AU618H705 - Ranch King Lawn Tractor (2004) Hood, Fuel Tank, Electrical Parts Diagram

Lawn Tractor

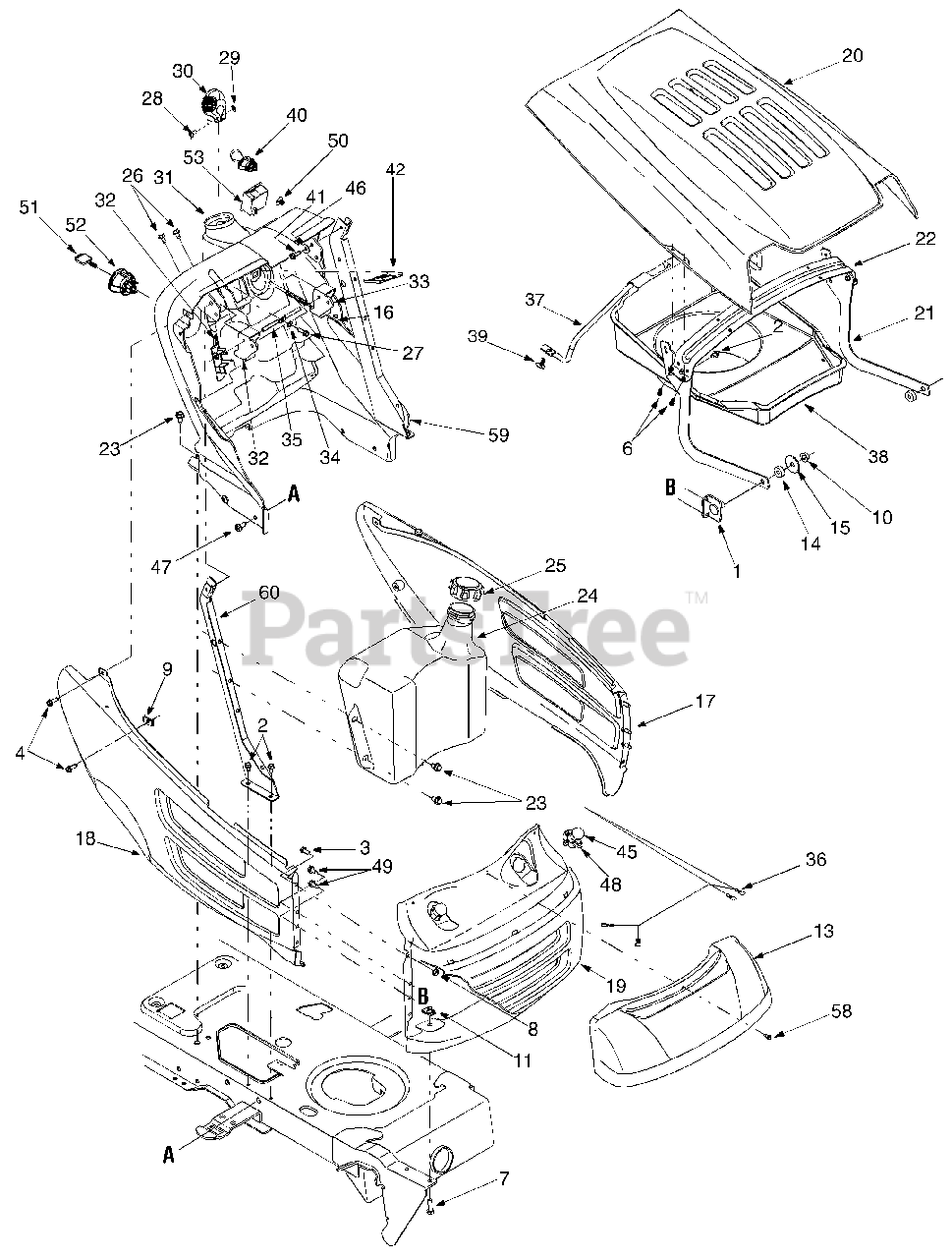

Hood, Fuel Tank, Electrical Parts Diagram

  • Title

1

MTD 683-0195

Bracket Assembly
(Superseded to 683-0195-0637)

Variations

MTD 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0351

Screw, #10-16 x .5

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

10

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

MTD 726-0211

U-nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

13

MTD 731-1854A

Headlight Lens
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

14

MTD 735-0126A

Rubber Washer, .87 x .33

$

$

Not available

15

MTD 736-3039

Flat Washer, .406 x 1.5 x 11GA

$5.49

$

In Stock, Qty 7

0

16

MTD 746-1084

Choke Knob/Cable (B&S OHV V-Twin)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

MTD 746-1085A

Choke Knob/Cable (B&S Intek V-Twin)
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

MTD 746-1088

Choke Knob/Cable (Kohler)
(Superseded to 946-1088)

$29.99

$

In Stock, only 1 left!

0

17

MTD 783-0475B

LH Side Panel
(Superseded to 783-0475C)

Variations

MTD 783-0475B-0483

PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0475B-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475B-0629

PANEL-SIDE 8 STYLE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475B-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475B-0640

PANEL-SIDE 8 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0475B-0662

PANEL-SIDE 8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0475B-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475B-0667

PANEL-SIDE 8 STYLE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0475B-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475B-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0475B-0724

PANEL-SIDE 8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0475B-0732

PANEL-SIDE 8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

18

MTD 783-0476C

RH Side Panel

Variations

MTD 783-0476C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476C-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0476C-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476C-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476C-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0476C-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0476C-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476C-0667

No Longer Available PANEL-SIDE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0476C-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476C-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0476C-0724

No Longer Available PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0476C-0732

No Longer Available - SPARKLING GRAY (0732)

$

$

Not available

$

$

19

MTD 783-0477A

Grill

Variations

MTD 783-0477A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477A-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477A-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477A-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0477A-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0477A-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0477A-0691

No Longer Available GRILLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0477A-0709

No Longer Available GRILLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0477A-0724

No Longer Available GRILLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0477A-0732

No Longer Available GRILLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

20

MTD 783-0478B

Hood
(Superseded to 983-0478B)

Variations

MTD 783-0478B-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478B-0629

No Longer Available HOOD-8 STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0478B-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478B-0640

HOOD-8 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0478B-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478B-0665

HOOD-8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0478B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0478B-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0478B-0709

HOOD-8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0478B-0724

No Longer Available HOOD-8 STY - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0478B-0732

HOOD-8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

21

MTD 783-1495

Hood Hinge Bracket
(Superseded to 783-1495-0637)

Variations

MTD 783-1495-0637

Hood Side Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 783-0553A

Hood Support Bracket
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0726

Screw, 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

24

MTD 751-0658E

Fuel Tank, Three Gallon

$115.99

$

In Stock, only 3 left!

0

MTD 751-0659C

Fuel Tank, Two Gallon (shown)
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

25

MTD 751-0603

Fuel Cap (fits either tank)
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

26

MTD 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

27

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

28

MTD 710-3217

Truss Phillips Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

29

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

30

MTD 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

31

MTD 731-2225C

Dash Panel (Models w/ Electric PTO)
(Superseded to 631-04038)

$

$

Not available

MTD 731-2122C

Dash Panel (Models w/ Manual PTO)

$

$

Not available

32

MTD 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

MTD 731-2228

Cruise Cover (Models w/o Cruise)

$

$

Not available

33

MTD 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

34

MTD 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

35

MTD 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

36

MTD 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

37

MTD 747-1184

Hood Plenum Support Rod

$

$

Not available

38

MTD 731-2245A

Hood Plenum, 2.85"

$

$

Currently unavailable

MTD 731-2247A

Hood Plenum, 1.60"

$

$

Not available

MTD 731-2248A

Hood Plenum, .80"

$

$

Not available

39

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

40

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

41

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

42

MTD 783-0462

Switch Bracket, Electric PTO

$

$

Not available

45

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

46

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

47

MTD 710-1611B

Screw, 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

48

MTD 725-1649

Headlight Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

49

MTD 710-1652

Hex Index Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

50

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

51

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

52

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 7

0

53

MTD 725-04036A

Systems Ind. Monitor w/ Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

MTD 725-04156

Systems Ind. Monitor w/ Ammeter
(Superseded to 925-04156)

$29.99

$

In Stock, only 1 left!

0

58

MTD 710-0456

Hex Screw, #10 x .50

$

$

Not available

59

MTD 783-04323A

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

MTD 783-04323A-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

60

MTD 783-04285A

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

MTD 783-04285A-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 629-04067

Harness Adapter

Note: (Models w/ Kohler Engine)

$

$

Not available

MTD 629-04073

Wire Harness
(Superseded to 929-04073)

Note: (models w/ Electric PTO & Hour Meter)

$262.99

$

Usually ships in 3-6 days

0

MTD 629-04074

Wire Harness

Note: (models w/ Electric PTO & Ammeter

$

$

Currently unavailable

MTD 629-04075

Wire Harness

Note: (models w/ Manual PTO & Hour Meter)

$

$

Not available

MTD 629-04076

Wire Harness
(Superseded to 929-04076)

Note: (models w/ Manual PTO & Ammeter)

$204.99

$

Usually ships in 3-6 days

0
