13AU614H755 - Yard Machines Lawn Tractor (2004) (Walmart) Frame Components & Seat Parts Diagram

Lawn Tractor

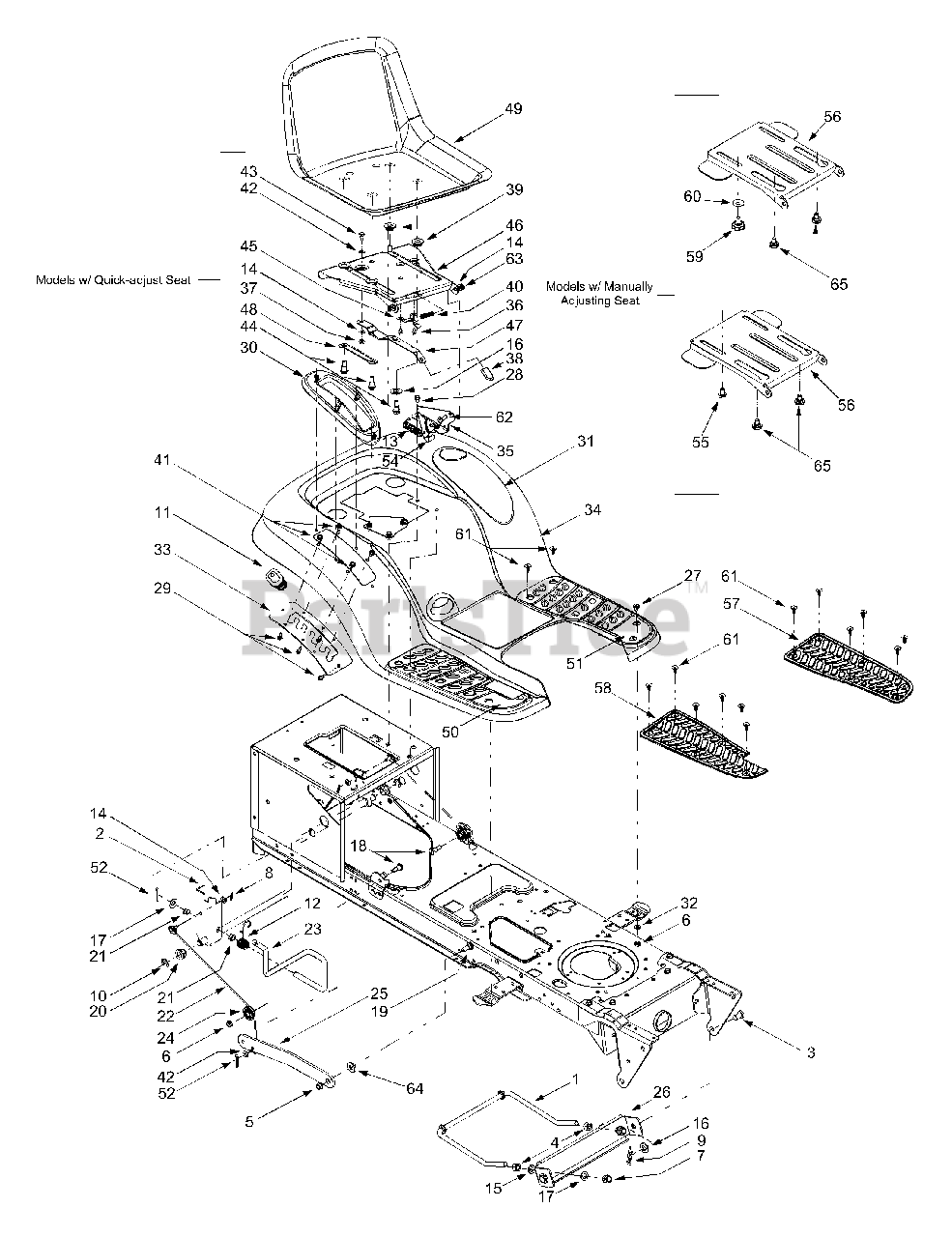

Frame Components & Seat Parts Diagram

  • Title

1

MTD 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

MTD 683-04079

Lift Shaft Assembly
(Superseded to 753-06260)

Variations

MTD 683-04079-0637

KIT-SERVICE LIFT S - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 683-04079-4008

KIT-SERVICE LIFT S - WINE RED (4008)

$57.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

3

MTD 711-0332

Clevis Pin,.5 x.78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

4

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

10

MTD 716-0106

E-ring

$4.49

$

In Stock, only 2 left!

0

11

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 732-1184

Extension Spring,.84 x 4.6

$11.99

$

Usually ships in 3-6 days

0

14

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

16

MTD 736-3019

Flat Washer,.31 x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

17

MTD 736-3084

Flat Washer,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

18

MTD 738-0138A

Hex Cap Screw, 5/16-18 x.62

$6.99

$

Usually ships in 3-6 days

0

19

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

MTD 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

MTD 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

MTD 747-04155

Lift Handle

$

$

Not available

24

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

MTD 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

MTD 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

MTD 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

MTD 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

MTD 710-0260A

Carriage Bolt, 5/16 x.62

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

Usually ships in 3-6 days

0

30

MTD 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

MTD 731-1993

Cover w/ Cup Holder (Shown)
(Superseded to 731-1993A)

Note: Models equipped with a 4-style fender can accept the cover w/cup holder.

$25.99

$

Usually ships in 3-6 days

0

MTD 731-04591

Cup Holder
(Superseded to 731-04591A)

Note: Models equipped with a 7-style fender can accept only a cup holder.

$15.99

$

In Stock, only 1 left!

0

32

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

33

MTD 783-1010

Deck Lift Plate
(Superseded to 783-1010A-0637)

Variations

MTD 783-1010-0637

PLATE-DECK LIFT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

34

MTD 783-04333

Fender, 4-Style (Shown)
(Superseded to 783-04333A)

Note: Models equipped with a 4-style fender can accept the cover w/cup holder.

Variations

MTD 783-04333-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04333-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04333-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

MTD 783-04333-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04333-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

MTD 783-04437

Fender, 7-Style
(Superseded to 783-04437A)

Note: Models equipped with a 7-style fender can accept only a cup holder.

Variations

MTD 783-04437-0638

FENDER-HYDRO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04437-0650

FENDER-HYDRO - RED METALLIC (0650)

$

$

Not available

MTD 783-04437-0665

FENDER-HYDRO - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04437-0691

FENDER-HYDRO - BLACK JACK (0691)

$

$

Not available

MTD 783-04437-0716

No Longer Available FENDER-HYD - CUB YELLOW-99 (0716)

$

$

Not available

$

$

35

MTD 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

MTD 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

36

MTD 710-1268

Screw, #10-16 x.375

$4.49

$

In Stock, only 2 left!

0

37

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

38

MTD 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

39

MTD 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

40

MTD 732-0499

Compression Spring,.41 x 1.5

$9.49

$

In Stock, only 1 left!

0

41

MTD 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0204

Flat Washer,.344 x.62 x.03

$4.49

$

In Stock, Qty 6

0

43

MTD 738-0137A

Shoulder Screw,.340 x.285,1/4-20

$10.99

$

In Stock, Qty 10

0

44

MTD 738-0966

Shoulder Screw,.50 x.50, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

45

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

MTD 783-0738A

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

MTD 783-0738A-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738A-0606

Seat Pivot Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0738A-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738A-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738A-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738A-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

47

MTD 783-0739

Seat Adjustment Lever

Variations

MTD 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

48

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

MTD 757-04012

High Back Seat
(Superseded to 757-04012C)

$

$

Not available

MTD 757-04011B

Medium Back Seat
(Superseded to 957-04011)

$

$

Not available

50

MTD 735-0656

RH Foot Pad, Rubber (4-Style Fender)

$25.99

$

Usually ships in 3-6 days

0

51

MTD 735-0657

LH Foot Pad, Rubber (4-Style Fender)

$26.99

$

Usually ships in 3-6 days

0

52

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

54

MTD 783-0209C

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

55

MTD 710-0870

Hex Head Washer Screw, 3/8-16 x.625

$6.49

$

In Stock, only 1 left!

0

56

MTD 783-04081A

Seat Pivot Bracket, Manually Adjusted

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

57

MTD 735-0672

RH Foot Pad, Rubber (7-Style Fender)

$

$

Not available

58

MTD 735-0673

LH Foot Pad, Rubber (7-Style Fender)

$

$

Not available

59

MTD 720-04009

Knob, 3/8-16
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

60

MTD 736-0331

Cupped Washer,.39 x 1.12

$3.99

$

In Stock, Qty 10

0

61

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

62

MTD 738-0296

Shoulder Screw,.437 x.286

$4.49

$

In Stock, Qty 20+

0

63

MTD 726-0201

Speed Nut,.3125

$6.99

$

Usually ships in 3-6 days

0

64

MTD 736-0160

Flat Washer,.531 x.93

$4.49

$

In Stock, only 2 left!

0

65

MTD 738-04012

Shoulder Screw
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0
