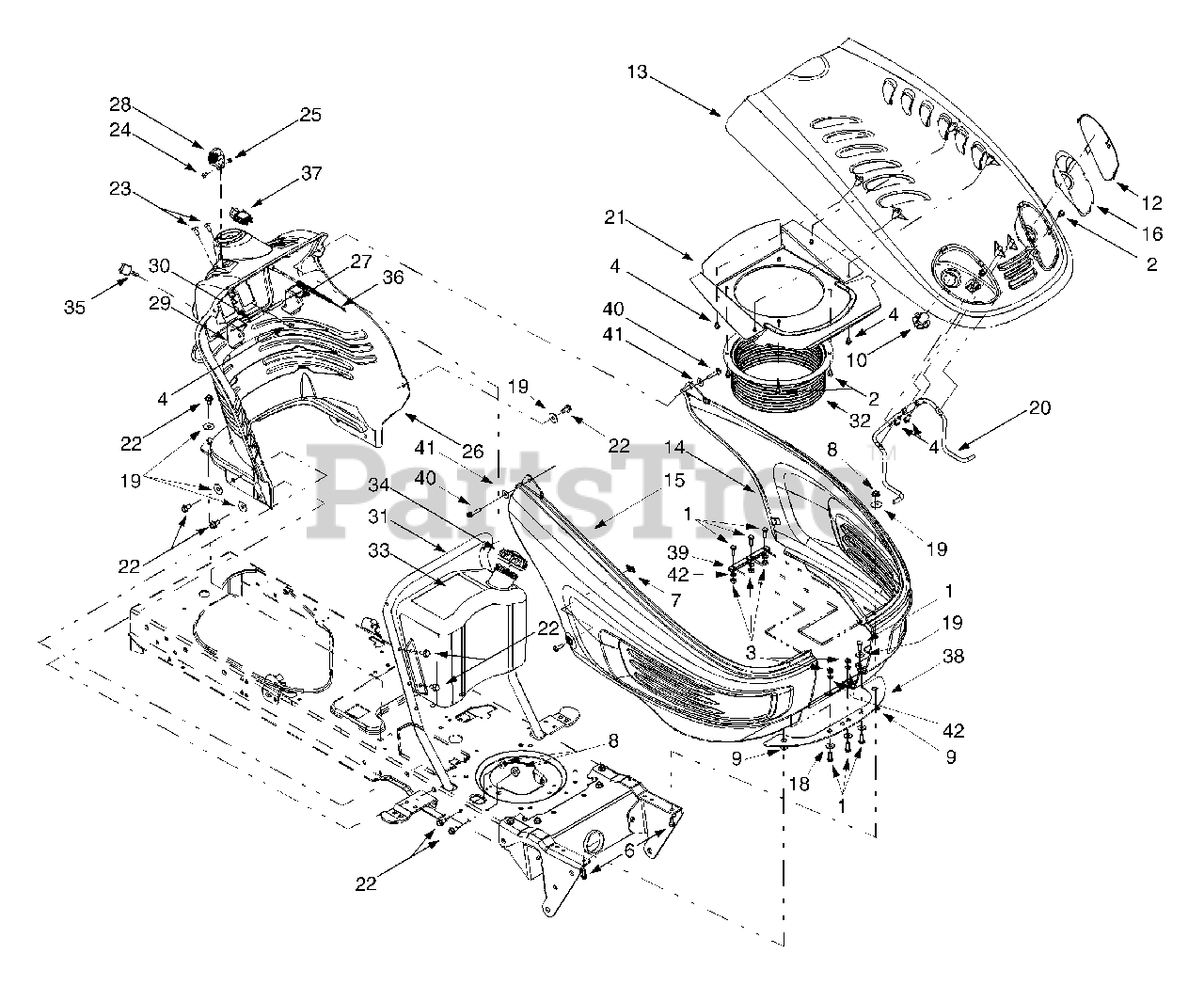

13AU604H401 - Yard-Man Lawn Tractor (2001) Tractor Body Parts Diagram

Lawn Tractor

Tractor Body Parts Diagram

  • Title

1

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

?5

MTD 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

10

MTD 725-1649

Head Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

?11

MTD 731-1978

RH Head Light Lens
(Superseded to 931-1978)

$17.99

$

Usually ships in 3-6 days

0

12

MTD 731-1979

LH Head Light Lens
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

13

MTD 731-1980

Hood, 4-style (Yellow)
(Superseded to 931-1980B)

$

$

Not available

14

MTD 731-1981A

LH Side Panel, 4-style (Yellow)
(Superseded to 931-04958)

$

$

Not available

15

MTD 731-1982A

RH Side Panel, 4-style (Yellow)
(Superseded to 931-1982C)

$

$

Not available

16

MTD 731-1995

LH Head Light Reflector
(Superseded to 777X41432)

$

$

Not available

?17

MTD 731-1996

RH Head Light Reflector
(Superseded to 777X41432)

$

$

Not available

18

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

20

MTD 747-1132A

Hood Support Rod

$

$

Not available

21

MTD 783-0808

Heat Shield, 4-style
(Superseded to 783-0808A-0637)

Variations

MTD 783-0808-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-1017

Torx Self-tapping Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

24

MTD 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

25

MTD 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 10

0

26

MTD 731-0071

Dash Panel, 4-style
(Superseded to 731-0071E)

$

$

Not available

27

MTD 731-0072

Parking Brake Button

$

$

Not available

28

MTD 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

29

MTD 731-2106

Cruise Control Button

$

$

Not available

30

MTD 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

MTD 749-1087

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

MTD 749-1087-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 731-2232

Intake Bellow
(Superseded to 731-2232A)

Note: (Kohler and Intek Single)

$

$

Not available

MTD 731-2234

Intake Bellow
(Superseded to 731-2234A)

Note: (Intek Twin)

$29.99

$

Usually ships in 3-6 days

0

33

MTD 751-0658A

Fuel Tank (3-gallon)

$

$

Not available

MTD 751-0659

Fuel Tank (2-gallon, shown)
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

34

MTD 751-0603

Fuel Cap (fits either tank)
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

35

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

MTD 746-1084

Choke/Throttle Cable
(Superseded to 946-1084)

Note: (Intek Single)

$32.99

$

Usually ships in 3-6 days

0

MTD 746-1085

Choke Cable
(Superseded to 946-1085A)

Note: (Intek Twin)

$30.99

$

In Stock, only 1 left!

0

MTD 746-1088

Choke Cable
(Superseded to 946-1088)

Note: (Kohler)

$29.99

$

In Stock, only 1 left!

0

37

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: (If so equipped)

$70.99

$

In Stock, only 2 left!

0

38

MTD 731-2272

Heat Shield

$

$

Not available

39

MTD 783-1000

Grille Support Bracket
(Superseded to 783-1000A)

Variations

MTD 783-1000-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

41

MTD 736-0342

Flat Washer, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

42

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
