13AU604H401 - Yard-Man Lawn Tractor (2001) Engine Accessories - Kohler Single-Cylinder Parts Diagram

Lawn Tractor

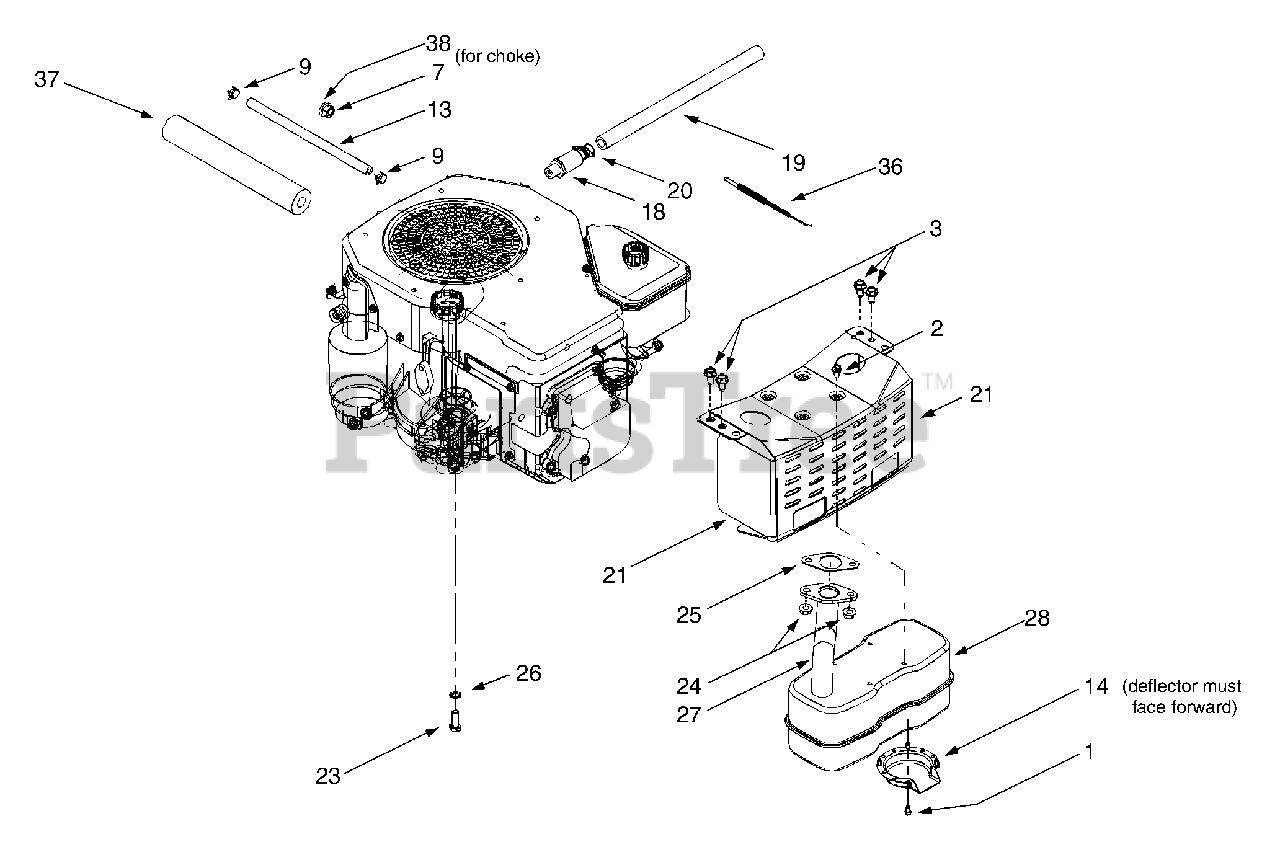

Engine Accessories - Kohler Single-Cylinder Parts Diagram

  • Title

1

MTD 710-0148

Self-tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

18

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

MTD 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

23

MTD 710-3206A

Hex Cap Screw, M8-1.25 x 25

$3.99

$

In Stock, Qty 13

0

24

MTD 712-3086

Flange Nut, M8-1.25

$4.49

$

In Stock, only 2 left!

0

25

MTD 721-0375

Exhaust Gasket
(Superseded to KH-12-041-03)

Note: (Kohler)

$

$

Not available

26

MTD 736-0607

External Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

27

MTD 751-0621

Exhaust Pipe
(Superseded to 751-0621A)

Note: (Kohler)

$

$

Not available

28

MTD 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

36

MTD 746-1087

Throttle Cable
(Superseded to 946-1087)

Note: (Kohler)

$35.99

$

In Stock, only 1 left!

0

37

MTD 722-0263

Foam
(Superseded to 723-3066-24)

Note: (Fits over fuel line)

$16.99

$

In Stock, only 3 left!

0

38

MTD 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0
