13AU604H401 - Yard-Man Lawn Tractor (2001) 46-Inch Cutting Deck Parts Diagram

Lawn Tractor

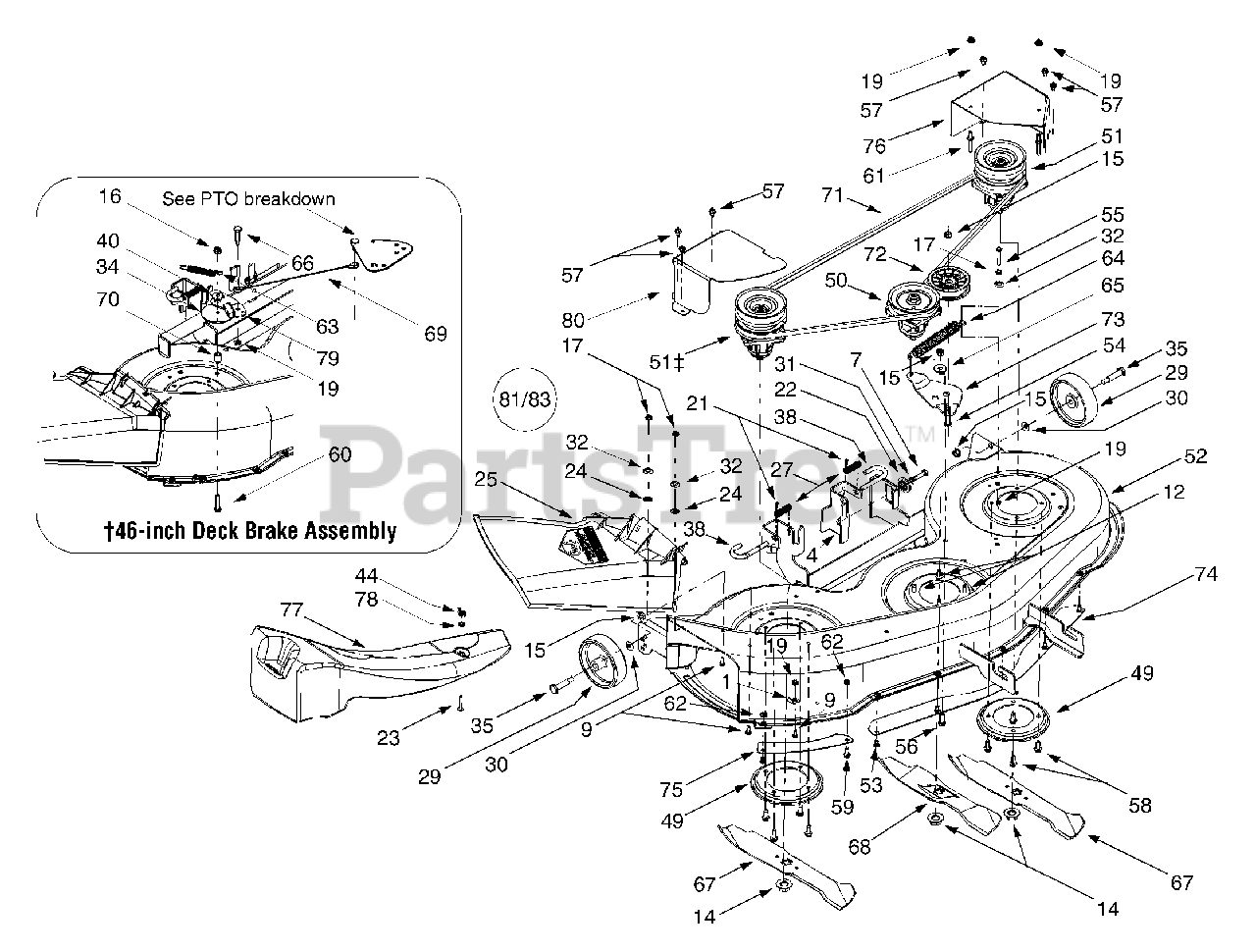

46-Inch Cutting Deck Parts Diagram

  • Title

1

MTD 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

4

MTD 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Variations

MTD 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

7

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

19

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

21

MTD 714-0111

Cotter Pin, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

22

MTD 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

23

MTD 710-0578

Screw, 1/4-20 x 1.5

$4.49

$

Usually ships in 3-6 days

0

24

MTD 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

25

MTD 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

27

MTD 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

29

MTD 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

30

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

34

MTD 736-0416

Flat Washer, .320 x 3.0 x .125

$

$

Not available

35

MTD 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

38

MTD 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

40

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

49

MTD 17982

Reinforcement Spindle Plate
(Superseded to 17982-0637)

Variations

MTD 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

50

MTD 618-0240

Spindle Assembly, 5.0 Dia.
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 5

0

51

MTD 618-0241

Double Pulley Spindle Assembly
(Superseded to 918-0241B)

$183.99

$

In Stock, only 1 left!

0

52

MTD 683-0265C

46-inch Deck Shell

Variations

MTD 683-0265C-0606

"No Longer Available DECK ASM-46"" LT" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-0265C-0637

"No Longer Available DECK ASM-46"" LT" - POWDER BLACK (0637)

$

$

Not available

MTD 683-0265C-0667

"No Longer Available DECK ASM-46"" LT" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 683-0265C-0709

"No Longer Available DECK ASM-46"" LT" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 683-0265C-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 683-0265C-0638

"No Longer Available DECK ASM-46"" LT" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0265C-0650

DECK ASM-46" LT - RED METALLIC (0650)

$

$

Not available

MTD 683-0265C-0665

"No Longer Available DECK ASM-46"" LT" - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0265C-0691

"No Longer Available DECK ASM-46"" LT" - BLACK JACK (0691)

$

$

Not available

MTD 683-0265C-0708

"No Longer Available DECK HSG-46"" LT" - MELLON YELLOW (0708)

$

$

Not available

MTD 683-0265C-0716

"No Longer Available DECK HSG-46"" LT" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

53

MTD 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

54

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

55

MTD 710-0501

Hex Cap Screw, 1/4-20 x 2.0

$7.49

$

Usually ships in 3-6 days

0

56

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-0599

Self-tapping Screw,1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

58

MTD 710-0650

Self-tapping Screw,15/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

59

MTD 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

60

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

61

MTD 711-0993

Belt Keeper Pin
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

62

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

63

MTD 732-0429A

Extension Spring, .5 x 3.97
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

64

MTD 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

65

MTD 738-0347

Shoulder Spacer, .625 x 1.16
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

66

MTD 738-0572

Shoulder Screw, .374 x 1.16

$7.99

$

Usually ships in 3-6 days

0

67

MTD 742-0611

Three-in-one Blade, Star Center, 16.28"
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

68

MTD 742-0612

Three-in-one Blade, Star Center, 14.88"
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 15

0

69

MTD 746-1107

Bracket Cable, 12"

$15.99

$

In Stock, only 3 left!

0

70

MTD 750-0807

Spacer, .385 x .625 x .70

$6.49

$

Usually ships in 3-6 days

0

71

MTD 754-0349

Deck Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

72

MTD 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

73

MTD 783-0139

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

MTD 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

74

MTD 783-0141

Center Deck Skirt

Variations

MTD 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

75

MTD 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

MTD 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

76

MTD 783-0747

LH Belt Cover
(Superseded to 783-0747B)

Variations

MTD 783-0747-0498

Belt Cover, LH 46" Yellow - OLD CUB YELLOW (0498)

$58.99

$

In Stock, only 1 left!

0

MTD 783-0747-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

MTD 783-0747-0691

Belt Cover, LH 46" Black - BLACK JACK (0691)

$58.99

$

In Stock, only 1 left!

0

MTD 783-0747-0716

Belt Cover, LH 46" Yellow - CUB YELLOW-99 (0716)

$58.99

$

In Stock, only 1 left!

0

MTD 783-0747-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$58.99

$

In Stock, only 1 left!

0

MTD 783-0747-0665

Belt Cover, LH 46" Green - YARDMAN GREEN (0665)

$58.99

$

In Stock, only 1 left!

0

$54.99

$

Usually ships in 3-6 days

0

77

MTD 731-1636

Mulch Plug, 46-inch Decks

$149.99

$

In Stock, only 1 left!

0

78

MTD 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

79

MTD 17116

Deck Brake Assembly, 46-inch Decks
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

80

MTD 783-0805A

RH Belt Cover
(Superseded to 783-0805C)

Variations

MTD 783-0805A-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

MTD 783-0805A-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

MTD 783-0805A-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0805A-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0805A-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

$

$

81

MTD 753-0874

46-inch Deck Assembly Complete
(Superseded to 953-0874)

Note: (Electric PTO activated, w/o mulch kit)

Variations

MTD 753-0874-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 753-0874-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 753-0874-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 753-0874-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 753-0874-0716

No Longer Available KIT-DECKAS - CUB YELLOW-99 (0716)

$

$

Not available

$

$

83

MTD 753-0872

46-inch Deck Assembly Complete
(Superseded to 953-0872)

Note: (Manual PTO activated, w/o mulch kit)

Variations

MTD 753-0872-0483

KIT-DECK ASM COMP - CHARCOAL GRAY (0483)

$

$

Not available

MTD 753-0872-0637

KIT-DECK ASM COMP - POWDER BLACK (0637)

$

$

Not available

MTD 753-0872-0650

KIT-DECK ASM COMP - RED METALLIC (0650)

$

$

Not available

MTD 753-0872-0665

KIT-DECK ASM COMP - YARDMAN GREEN (0665)

$

$

Not available

MTD 753-0872-0691

KIT-DECK ASM COMP - BLACK JACK (0691)

$

$

Not available

MTD 753-0872-0716

No Longer Available KIT-DECKAS - CUB YELLOW-99 (0716)

$

$

Not available

$

$
