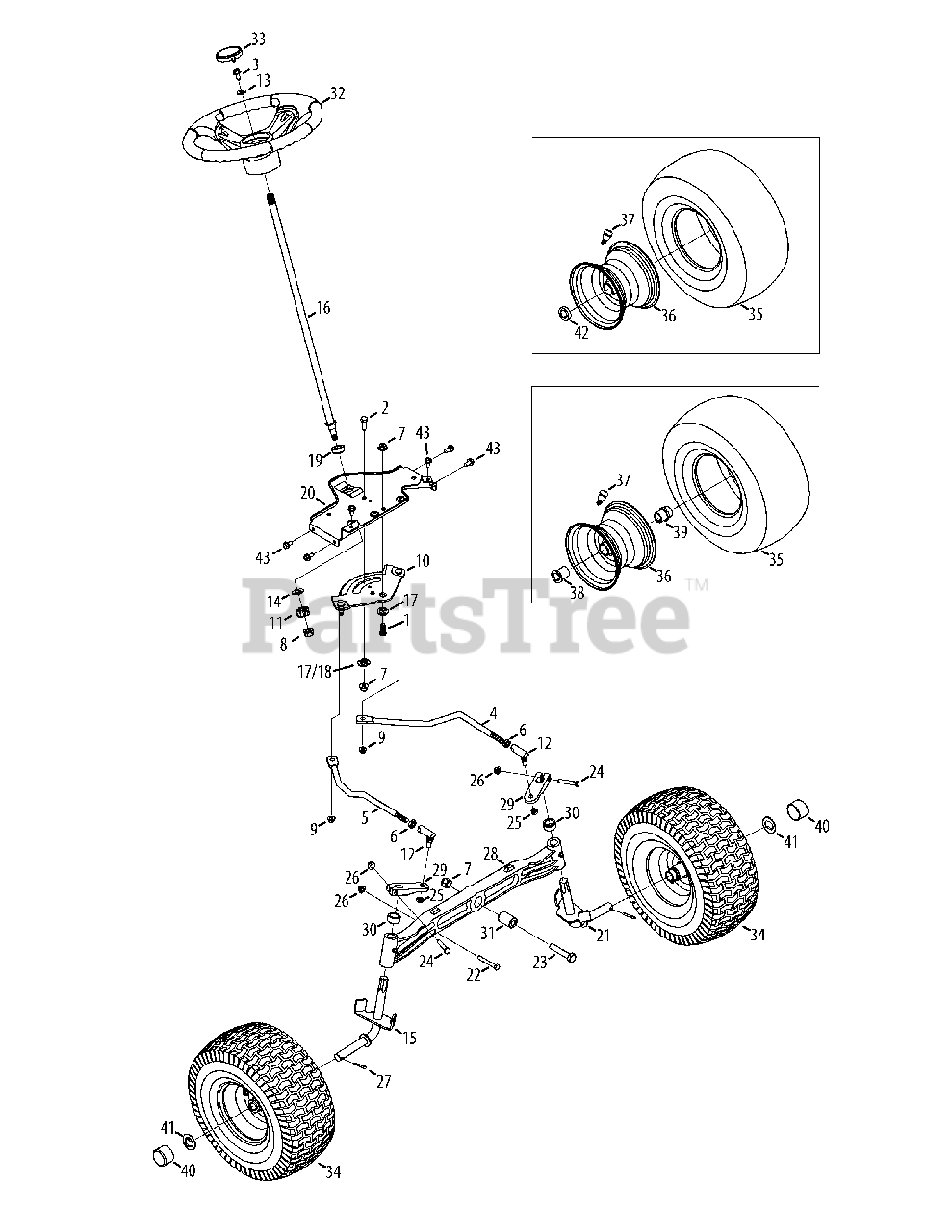

13AT915T004 - MTD Gold Lawn Tractor (2012) Steering & Axle Parts Diagram

Gold Lawn Tractor

Steering & Axle Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16x1.00, Gr5, Special

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16x1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18x1.00, Gr5, Lock

$6.99

$

In Stock, Qty 5

0

4

MTD 711-04998

Link, Drag LH

$27.99

$

In Stock, only 1 left!

0

5

MTD 711-04999

Link, Drag RH

$27.99

$

In Stock, only 1 left!

0

6

MTD 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20, Grb, Lock

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.99

$

In Stock, Qty 20+

0

10

MTD 717-1550F

Gear, Steering

$70.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

15

MTD 938-04034

Axle Ass’y, RH .750 Dia

$53.99

$

In Stock, only 1 left!

0

16

MTD 738-04263

Shaft, Steering, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

17

MTD 738-04363

Spacer, Shoulder, .385x 1.25 x .3025

$5.99

$

In Stock, only 3 left!

0

18

MTD 738-04364B

Spacer, .38 x 1.375, Special

$6.49

$

In Stock, only 1 left!

0

19

MTD 741-04237B

Bearing, Flange, Hex 5/8

$6.99

$

In Stock, Qty 15

0

20

MTD 783-06043-0637

Bracket, Support, Steering

$

$

Not available

21

MTD 638-04035P

Axle Ass’y, LH .750 Dia

$

$

Not available

22

MTD 710-0395

Hex Screw, 5/16-18, 2.25, Gr5, Std

$4.99

$

In Stock, only 1 left!

0

23

MTD 710-0859

Hex Screw, 3/8-16, 2.50, Gr5, Std

$6.99

$

In Stock, Qty 17

0

24

MTD 710-3180

Hex Screw, 5/16-18, 1.75, Gr5, Std

$5.49

$

In Stock, Qty 20+

0

25

MTD 912-0214

Nut, Hex Lock, 3/8-24, Grb
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

26

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

28

MTD 719-04413A

Axle, Pivot Bar, Cast

$241.99

$

Usually ships in 3-6 days

0

29

MTD 748-04065-0637

Steering, Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 1 left!

0

30

MTD 748-04068

Spacer, .71 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

31

MTD 750-05280

Spacer, .385 x 1.00 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

MTD 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0

33

MTD 731-04040

Cap, Sprig, Small

$9.99

$

In Stock, only 1 left!

0

34

MTD 634-04406-0911

Wheel Assembly

$

$

Not available

35

MTD 734-1731-0901

Tire, 15 x 6 x 6

$49.99

$

Usually ships in 3-6 days

0

36

MTD 634-04405-0662

Rim Assembly

$69.99

$

Usually ships in 3-6 days

0

37

MTD 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

38

MTD 741-0516B

Flange Bearing, .760 x 1.00 x 1.20

$6.49

$

In Stock, Qty 20+

0

39

MTD 741-0990B

Flange Bearing, .760 ID

$10.99

$

In Stock, Qty 20+

0

40

MTD 731-08049

Cap, Bumper
(Superseded to 731-08049A)

$

$

Not available

41

MTD 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

42

MTD 941-04137

Bearing, Ball, .750 x 1.750
(Superseded to 941-04137A)

$30.99

$

In Stock, Qty 6

0

43

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0
