13AT78BT023 - Troy-Bilt Horse 46" Lawn Tractor, Auto (2019) Fuel Tank Parts Diagram

Horse 46" Lawn Tractor, Auto

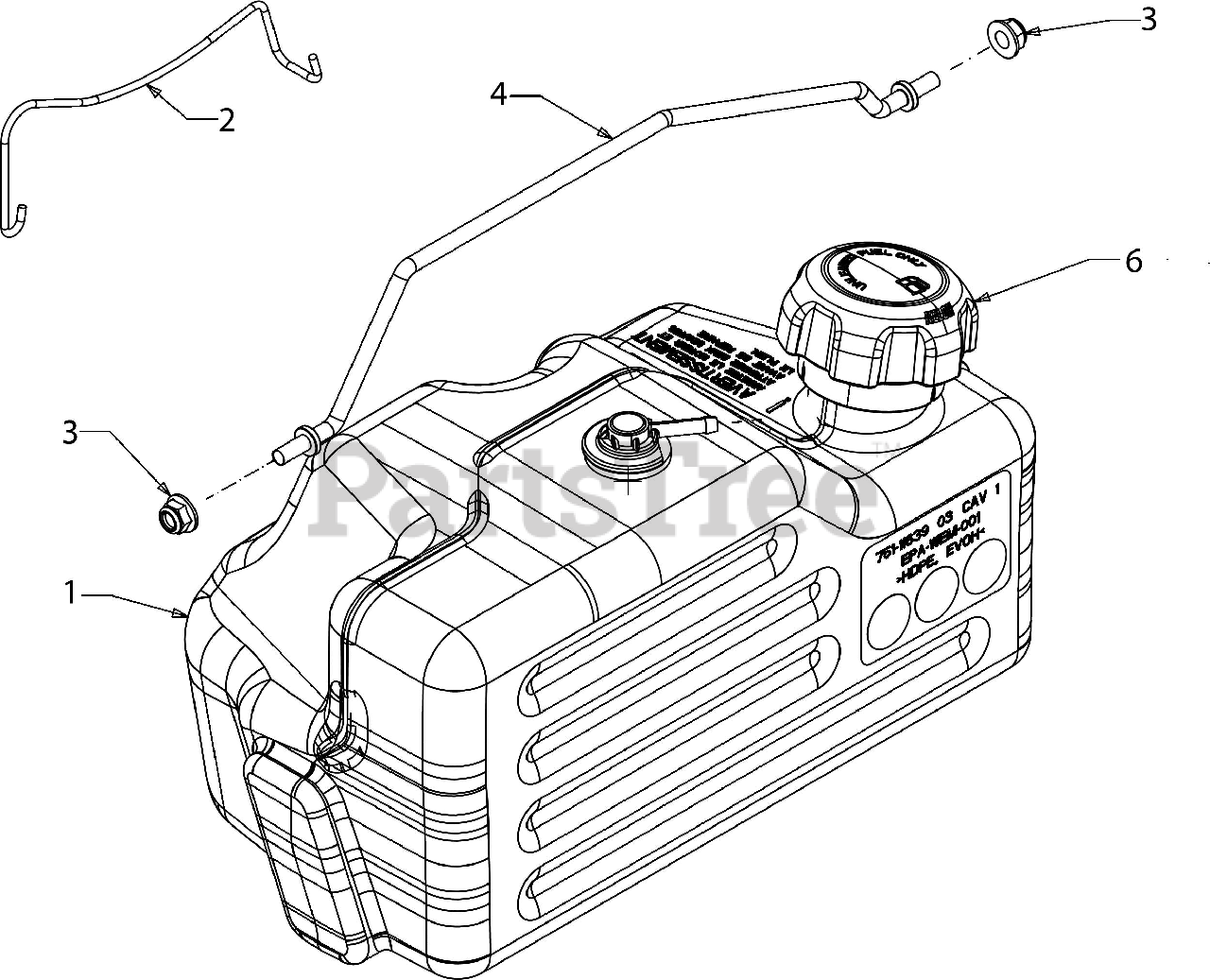

Fuel Tank Parts Diagram

  • Title

1

Troy-Bilt 951-04295

FUEL TANK ASSEMBLY
(Superseded to 951-04295A)

$186.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$35.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 683-04448-0637

BATTERY ROD ASSEMBLY

$10.99

$

In Stock, Qty 14

0

3

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 747-05373

FUEL TANK CLAMP ROD

$11.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 951-12179B

FUEL CAP W/TETHER
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

Troy-Bilt 751-12089-18

VENT HOSE 3/16 ID

Note: (Not Shown)

$6.49

$

In Stock, only 1 left!

0
