13AT78BT023 - Troy-Bilt Horse 46" Lawn Tractor, Auto (2019) Dash-Lower Parts Diagram

Horse 46" Lawn Tractor, Auto

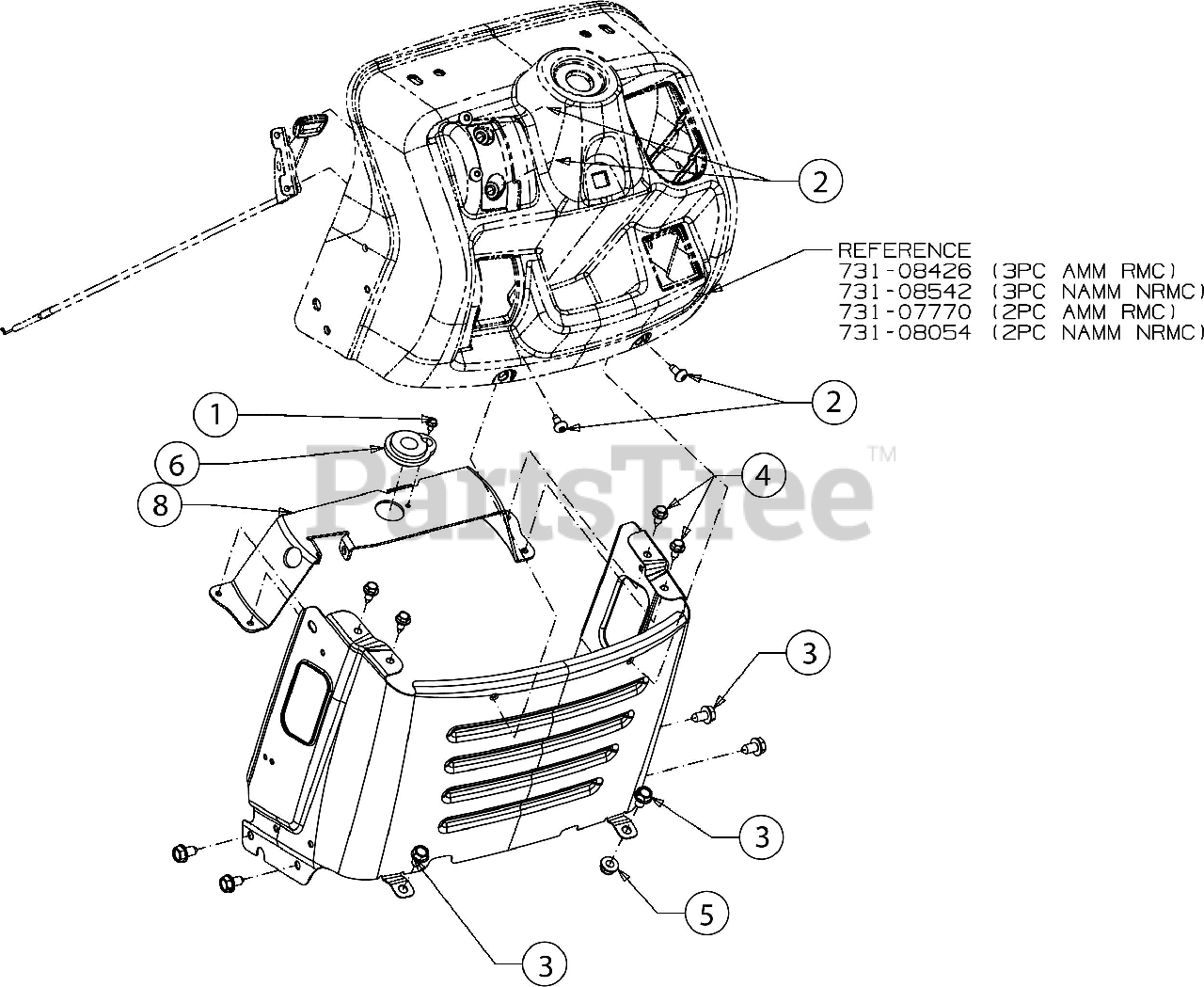

Dash-Lower Parts Diagram

  • Title

1

Troy-Bilt 710-0837

SCREW #10-16 x .625

$4.49

$

In Stock, Qty 5

0

2

Troy-Bilt 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

3

Troy-Bilt 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 741-0587

BEARING

$4.49

$

In Stock, Qty 10

0

8

Troy-Bilt 783-06785C

STEERING SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-06785C-0606

BRACKET-SUPPORT ST - MAJESTIC ORANGE (0606)

$8.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-06785C-0637

Support Bracket, ST - POWDER BLACK (0637)

$9.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-06785C-0638

Support Bracket, ST - MTD/TROY-BILT RED (0638)

$9.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-06785C-0691

BRACKET-SUPPORT ST - BLACK JACK (0691)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-06656C

LOWER DASH
(Superseded to 783-06656D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-06656C-0637

DASH-LOWER - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0
