13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) ELECTRIC STARTER ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

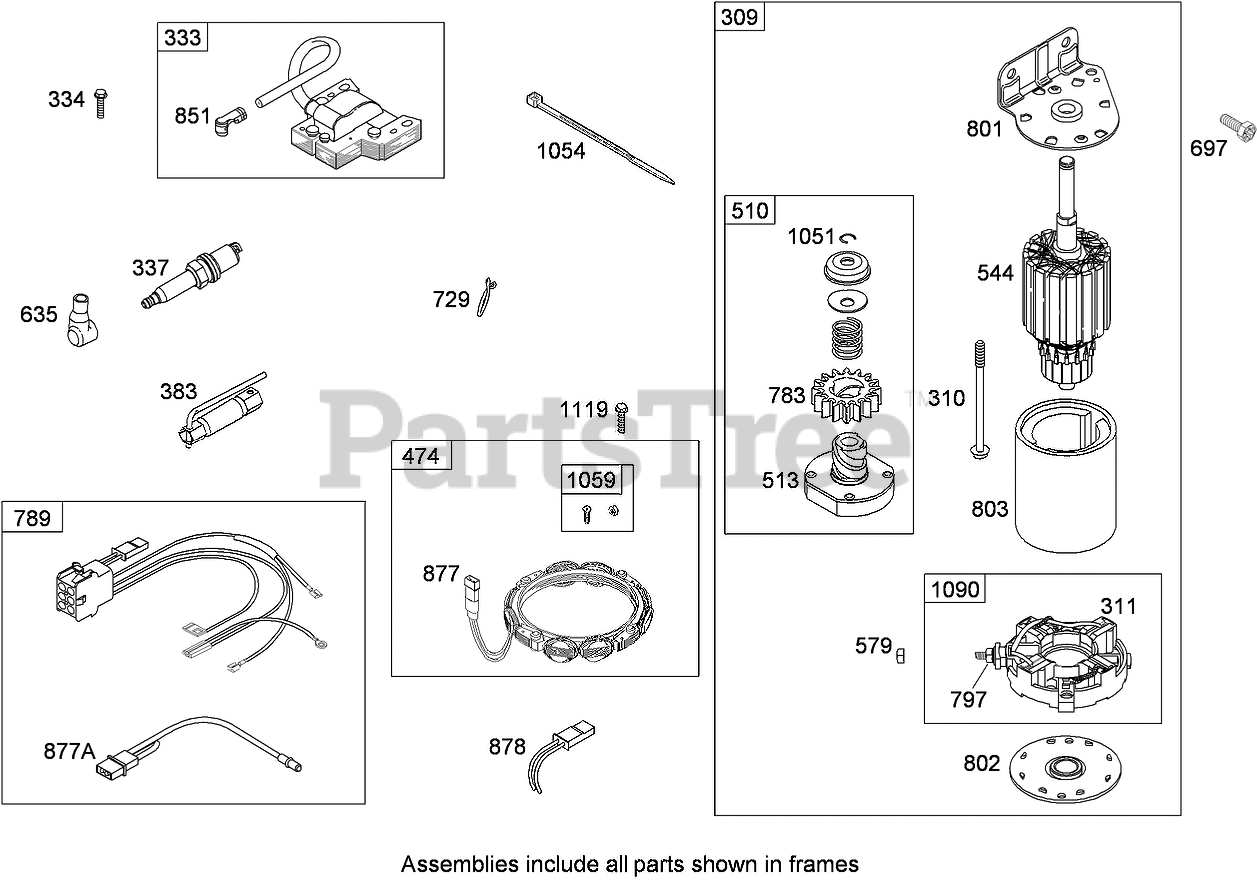

ELECTRIC STARTER ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title
309

Briggs & Stratton 497595

Motor-Starter

Note: Obtain parts from www.briggsandstratton.com

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

Bolt (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

Note: Obtain parts from www.briggsandstratton.com

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

337

Toro 491055s

Plug-Spark

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Toro 19374s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: Obtain parts from www.briggsandstratton.com

$101.99

$

In Stock, Qty 9

0

510

Briggs & Stratton 696541

Drive-Starter
(Superseded to 844717)

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

In Stock, Qty 10

0

513

Briggs & Stratton 692024

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 692034

Armature-Starter

Note: Obtain parts from www.briggsandstratton.com

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

Nut (Starter Cable)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

635

Toro 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

697

Briggs & Stratton 690372

Screw (Drive Cap)
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 694123

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 695708

Gear-Pinion

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 4 left!

0

789

Briggs & Stratton 698330

Harness-Wiring

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

Nut (Brush Retainer)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter (Serviced By Reference 309, 497595 Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

803

Housing-Starter (Serviced By Reference 309, 497595 Starter Motor)

Note: Not serviced separately

$

$

Not available

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

877

Briggs & Stratton 393456

Wire/Connector-Alternator

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 790544

Harness-Wiring

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 398661

Harness-Alternator

Note: Obtain parts from www.briggsandstratton.com

$34.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

Retainer-Brush

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

Screw (Alternator)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0
