13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) CYLINDER ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

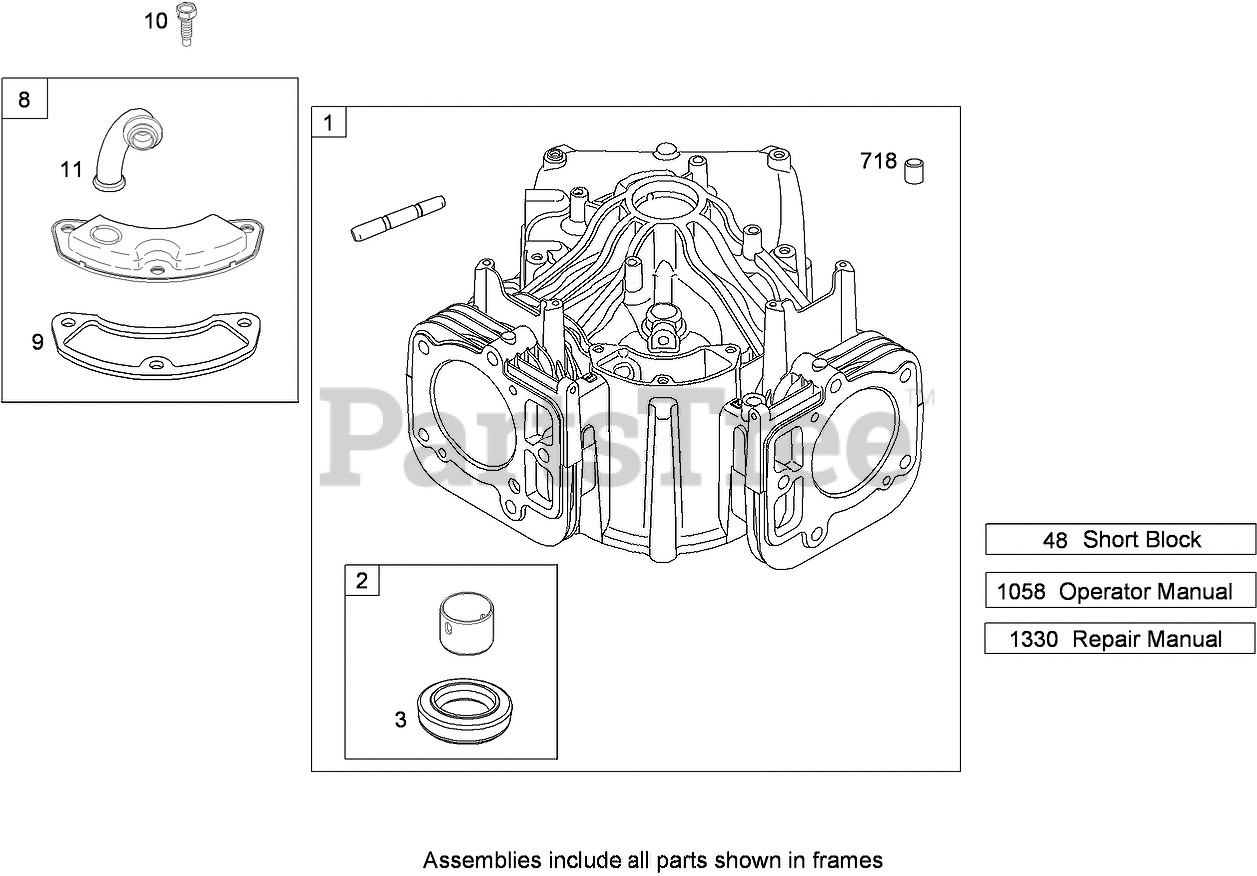

CYLINDER ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title

1

Briggs & Stratton 795118

Cylinder Asm
(Superseded to 594969)

Note: Obtain parts from www.briggsandstratton.com

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 499585

Bushing and Seal Kit (Magneto Side)
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, Qty 8

0

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

8

Briggs & Stratton 792185

Breather ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 690937

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

Screw (Breather ASM)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 792184

Tube-Breather

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 3 left!

0

48

Briggs & Stratton 698172

Short Block
(Superseded to 797093A)

Note: Obtain parts from www.briggsandstratton.com

$1334.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating (Cylinder)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

1058

Briggs & Stratton 276352

Operator Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1330

Briggs & Stratton 273521

Repair Manual

Note: Obtain parts from www.briggsandstratton.com

$34.99

$

In Stock, only 1 left!

0
