13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) CARBURETOR OVERHAUL KIT BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

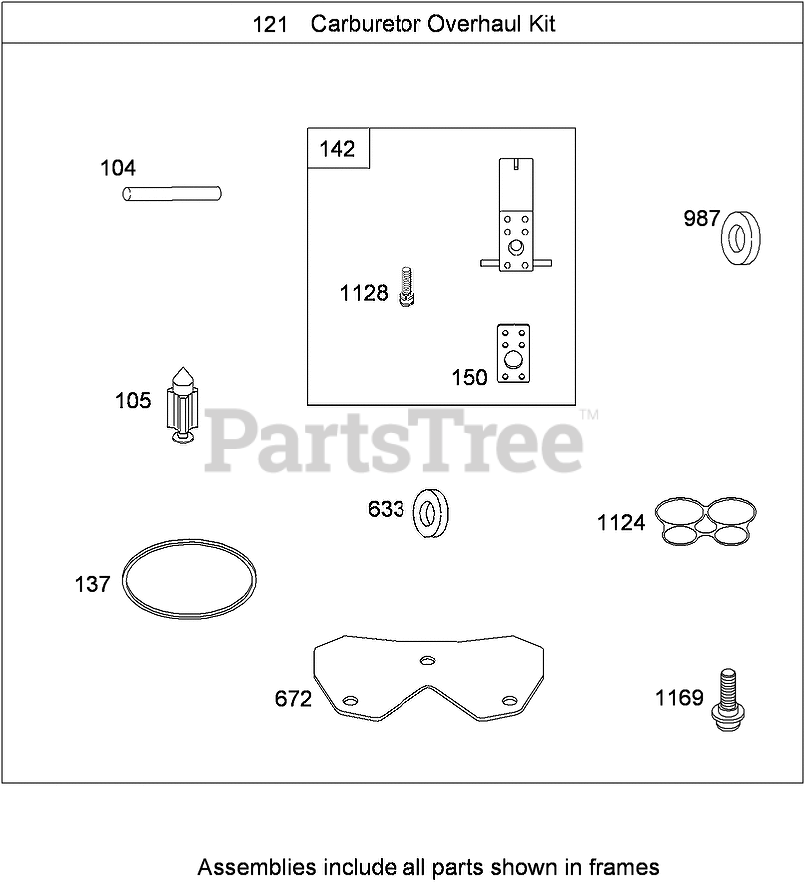

CARBURETOR OVERHAUL KIT BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, Qty 17

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$15.99

$

In Stock, Qty 17

0

121

Briggs & Stratton 699734

Carburetor Overhaul Kit
(Superseded to 797890)

Note: Obtain parts from www.briggsandstratton.com

$95.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 20+

0

142

Briggs & Stratton 699726

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$35.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 699726

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle (Carburetor)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 19

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$12.99

$

In Stock, Qty 19

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

1124

Briggs & Stratton 690988

Seal-O Ring (Fuel Transfer Tube)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1124

Briggs & Stratton 690988

Seal-O Ring (Fuel Transfer Tube)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

In Stock, Qty 20+

0

1128

Briggs & Stratton 690990

Screw (Carburetor Nozzle)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

Usually ships in 2-12 days

0

1128

Briggs & Stratton 690990

Screw (Carburetor Nozzle)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw (Carburetor Cover Plate)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw (Carburetor Cover Plate)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

Usually ships in 2-12 days
