13AT61RH048 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) GOVERNOR CONTROL ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

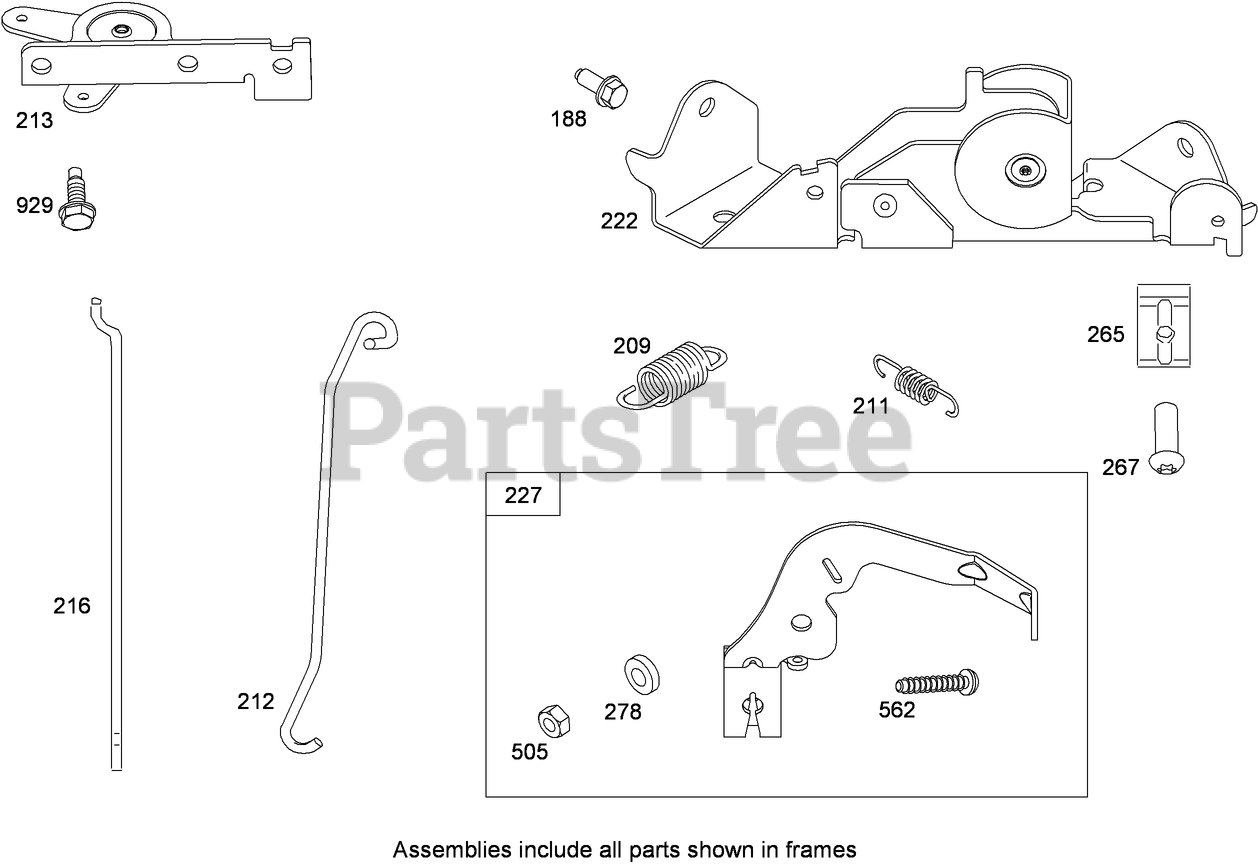

GOVERNOR CONTROL ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title
188

Briggs & Stratton 691108

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 793339

Spring-Governor (Light Green)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691019

Spring-Idle, Governed

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 695238

Link?Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

213

Briggs & Stratton 691021

Bracket-Control, Choke

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 691022

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 698761

Bracket-Control
(Superseded to 592661)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 792492

Lever-Control, Governor
(Superseded to 798856)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, Qty 9

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 695134

Screw (Casing Clamp)
(Superseded to 792629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 792651

Washer (Governor Control Lever)
(Superseded to 798856)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, Qty 9

0

505

Briggs & Stratton 691029

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690311

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

929

Briggs & Stratton 695239

Screw (Choke Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0
