13AT61RH044 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) Seat, Fender and Deck Lift Assembly Parts Diagram

Lawn Tractor

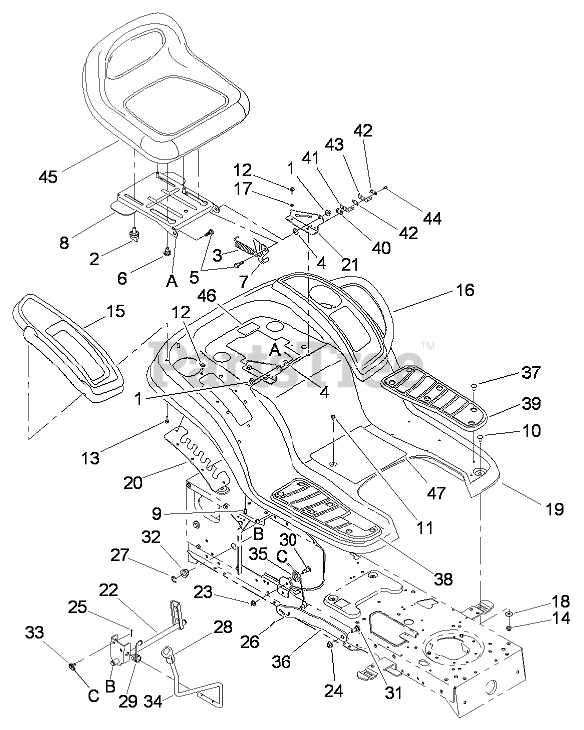

Seat, Fender and Deck Lift Assembly Parts Diagram

  • Title
1

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

2

$10.99

$

In Stock, only 1 left!

0

3

Toro 112-0616

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

4

Toro 112-0435

WASHER-BELL

$

$

Not available

5

Toro 112-0575

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-0554

BOLT-SHOULDER

$

$

Not available

7

Toro 112-0646

BRACKET-LIFT, LH

$

$

Not available

8

Toro 112-6113

BRACKET-PIVOT, SEAT

$

$

Not available

9

$

$

Not available

10

Toro 112-0426

BOLT-CARR

$

$

Not available

11

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

12

Toro 112-6070

SCREW-TAP

$6.99

$

In Stock, Qty 6

0

13

Toro 112-0509

SCREW-TAP

$10.99

$

In Stock, only 3 left!

0

14

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

15

Toro 112-0471

COVER-FENDER, RH

$

$

Not available

16

Toro 112-6065

COVER-FENDER, LH (W/CUPHOLDER)

$

$

Not available

17

Toro 112-0517

WASHER-LOCK, EXTERNAL

$

$

Not available

18

Toro 112-0582

WASHER-FLAT

$

$

Not available

19

Toro 112-0697

FENDER

$

$

Not available

20

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

21

Toro 112-6046

BRACKET-MOUNT, SEAT

$31.99

$

Usually ships in 3-6 days

0

22

Toro 112-5969

LIFT SHAFT ASM

$78.99

$

Usually ships in 3-6 days

0

23

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

24

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 5

0

25

Toro 112-0459

PIN-COTTER

$

$

Not available

26

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

27

Toro 112-0586

RING-E

$7.99

$

Usually ships in 3-6 days

0

28

Toro 112-0585

GRIP-HANDLE

$

$

Not available

29

Toro 112-0477

SPRING-TORSION

$

$

Not available

30

Toro 112-0443

BOLT-SHOULDER

$

$

Not available

31

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

32

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

33

Toro 112-0374

CABLE-LIFT

$41.99

$

In Stock, only 2 left!

0

34

Toro 112-5970

HANDLE-LIFT

$

$

Not available

35

Toro 112-0502

PULLEY-ROLLER

$12.99

$

Usually ships in 3-6 days

0

36

Toro 112-0724

LINK-LIFT

$

$

Not available

37

Toro 112-0549

CLIP-RATCHET, FASTENER

$7.49

$

Usually ships in 3-6 days

0

38

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

39

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

40

Toro 112-0637

PLATE-BOSS, INSULATOR

$

$

Not available

41

Toro 112-0532

SWITCH-SPRING, INNER

$8.49

$

Usually ships in 3-6 days

0

42

Toro 112-0635

PLATE-INSULATOR

$5.99

$

Usually ships in 3-6 days

0

43

Toro 112-0529

SWITCH-SPRING

$6.99

$

Usually ships in 3-6 days

0

44

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

45

Toro 112-6114

SEAT-MEDIUM

$

$

Not available

46

Toro 112-6158

DECAL-SERVICE

$

$

Not available

47

Toro 112-6159

DECAL-INSTRUCTIONS, OPERATING

$

$

Not available
