13AT61RH044 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) Governor Control Assembly Briggs and Stratton 407777-0550-E1 Parts Diagram

Lawn Tractor

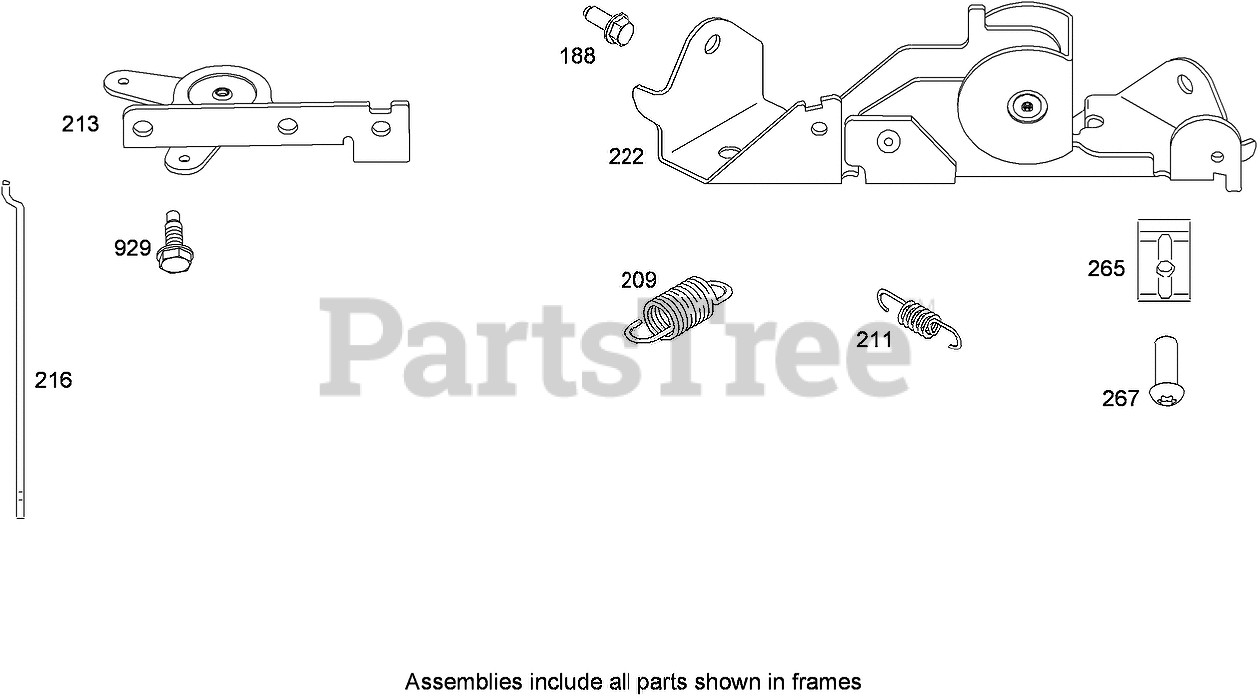

Governor Control Assembly Briggs and Stratton 407777-0550-E1 Parts Diagram

  • Title
188

Toro 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

209

Toro 793339

Spring-Governor (Light Green)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

211

Toro 691019

Spring-Idle, Governed

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

213

Toro 691021

Bracket-Control, Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

216

Toro 691022

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

222

Toro 698761

Bracket-Control

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

265

Toro 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

265

Toro 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

267

Toro 695134

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

929

Toro 695239

Screw (Choke Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
