13AT609G766 - Troy-Bilt Super Bronco Lawn Tractor (2005) Hood Assembly Parts Diagram

Super Bronco Lawn Tractor

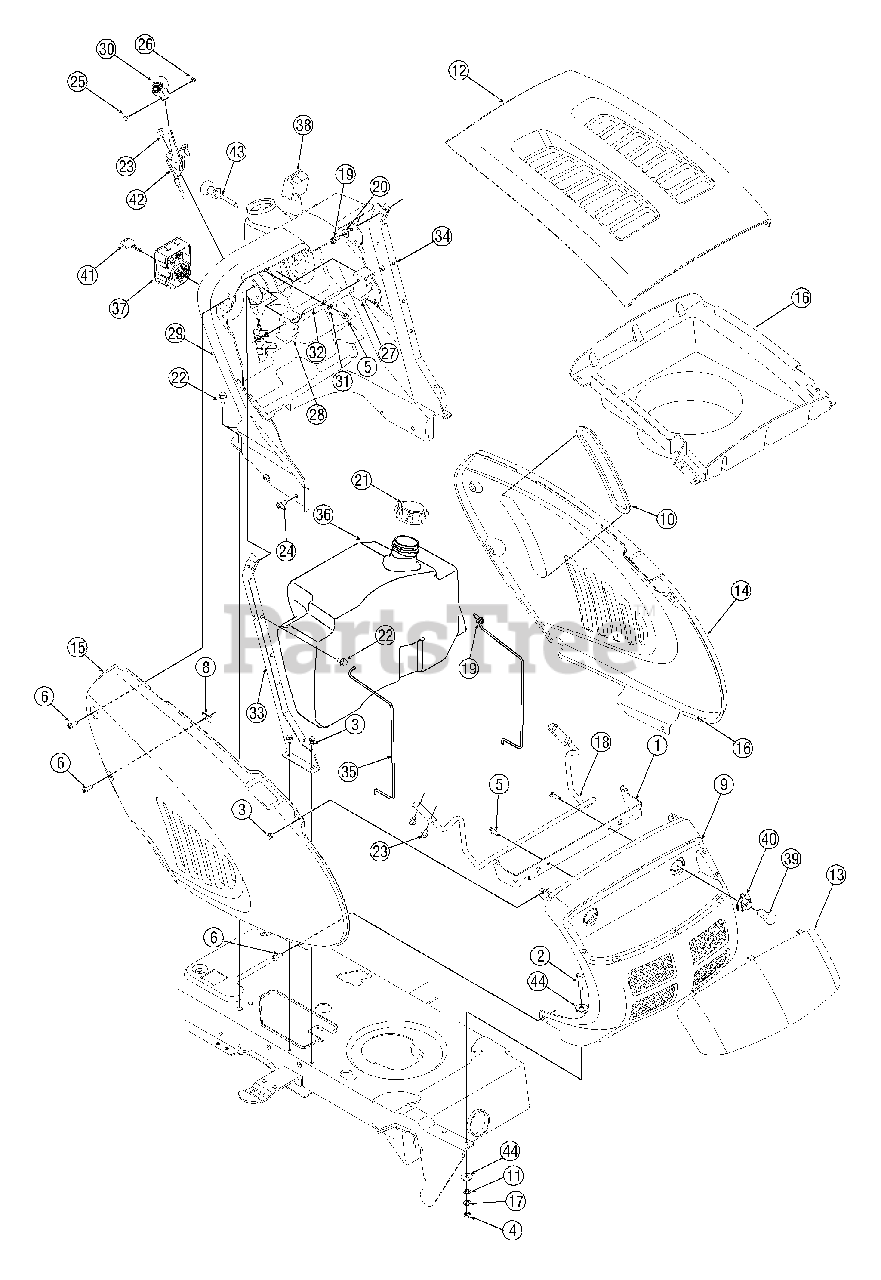

Hood Assembly Parts Diagram

  • Title

1

Troy-Bilt 783-1346

Bracket, Grill Support
(Superseded to 783-1346A-0637)

Note: use with 731-04960

Variations

Troy-Bilt 783-1346-0637

Support Bracket, Grill - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0528

Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0924

Screw, Machine, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0292

Nut, Clip, 1/4-20

$10.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 731-04960

Grill, 9 Style
(Superseded to 753-0895)

$

$

Not available

9

Troy-Bilt 753-0895

Grill, 9 Style, Service Kit

Note: Replaces 731-04960

$

$

Not available

9

731- 2119A

GRILLE, 9 STYLE

Note: Not Shown, use with 753-0895

$

$

Not available

9

Troy-Bilt 783-1346A

GRILLE, SUPPORT BRACKET
(Superseded to 783-1346A-0637)

Note: Not Shown, use with 753-0895

Variations

Troy-Bilt 783-1346A-0637

Support Bracket, Grill - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 777X40317

LABEL, REFLECTIVE, HEADLIGHT

Note: Not Shown, use with 753-0895

$25.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-2118A

LENS

Note: Not Shown, use with 753-0895

$35.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0895

SCREW:HL:1/4-15 X .75

Note: Not Shown, use with 753-0895

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0642

SCREW: TAPPING:1/4-20 X .75

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0528

SCREW:5/16-18 X 1.25": GR5

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-3078

WASHER:FLAT:.344 X 1.0 X .063:HT

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0119

WASHER: SPLIT LOCK: 5/16
(Superseded to 936-0119)

Note: Not Shown, use with 753-0895

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3010

NUT:HEX: 5/16-18: GR5

Note: Not Shown, use with 753-0895

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0292

NUT: TINN CLIP:1/4-20

Note: Not Shown, use with 753-0895

$10.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 735-04019

Panel Seal
(Superseded to 935-04019)

$

$

Not available

11

Troy-Bilt 726-0201

Nut, Speed,.3125 ID

$6.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 783-0783

Hood
(Superseded to 783-0783A)

Variations

Troy-Bilt 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

13

MTD 731-2637

Lens
(Superseded to 931-2637)

Note: use with 731-04960

$

$

Not available

14

Troy-Bilt 783-04200

Side Panel, LH

Variations

Troy-Bilt 783-04200-0638

PANEL-SIDE LH 9 ST - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-04200-0709

PANEL-SIDE LH 9 ST - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

15

Troy-Bilt 783-0784A

Side Panel, RH

Variations

Troy-Bilt 783-0784A-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0784A-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0784A-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

Troy-Bilt 731-2269A

Plenum, Bronco (Model J609)

$

$

Not available

16

Troy-Bilt 731-2270A

Plenum, Super Bronco (Model T609)

$

$

Not available

17

Troy-Bilt 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 747-2138

Hinge Rod

$

$

Not available

19

Troy-Bilt 710-0642

Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-0270

Washer, Bell,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

24

Troy-Bilt 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 710-3217

Screw, Machine, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

26

Troy-Bilt 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 10

0

27

Troy-Bilt 731-04728

Brake Lever

$

$

Not available

28

Troy-Bilt 731-04729

Cruise Control Lever

$

$

Not available

29

Troy-Bilt 731-05001

Dash Panel
(Superseded to 731-06167)

$109.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 731-1857

Control Knob

$14.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 736-0142

Washer, Flat,.281 x.50 x.063

$4.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 747-1196

Rod, Brake / Cruise Pivot

$15.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-04285A

Support Plate, Dash, RH
(Superseded to 783-04285F-0637)

Variations

Troy-Bilt 783-04285A-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

34

Troy-Bilt 783-04323A

Support Plate, Dash, LH
(Superseded to 783-04323F-0637)

Variations

Troy-Bilt 783-04323A-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 747-04158

Fuel Tank Support - RH

$

$

Not available

35

Troy-Bilt 747-04161

Fuel Tank Support - LH

$

$

Not available

36

Troy-Bilt 751-3213A

Fuel Tank, 3 Gal.
(Superseded to 751-10283B)

$175.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 725-04227

Ignition Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 725-04156

Ammeter
(Superseded to 925-04156)

$29.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 725-0963

Miniature Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

40

Troy-Bilt 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 725-1744

Key, Ignition
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 725-1745

Key w/ Plastic Cover, Ignition
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 746-1086

Throttle Cable, 39", Super Bronco
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 746-1084

Throttle/Choke Cable, Bronco
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 746-04132

Choke Knob w/ Cable, 37.5" Super Bronco
(Superseded to 946-04132)

$35.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 736-3078

Washer, Flat,.344 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 731-1999

Choke Plug, Bronco

Note: Not Shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 629-04103

Tractor Wire Harness

Note: Not Shown

$

$

Not available

MTD 629-04144

Jumper Wire Harness

Note: Not Shown

$

$

Not available
