Super Bronco Lawn Tractor

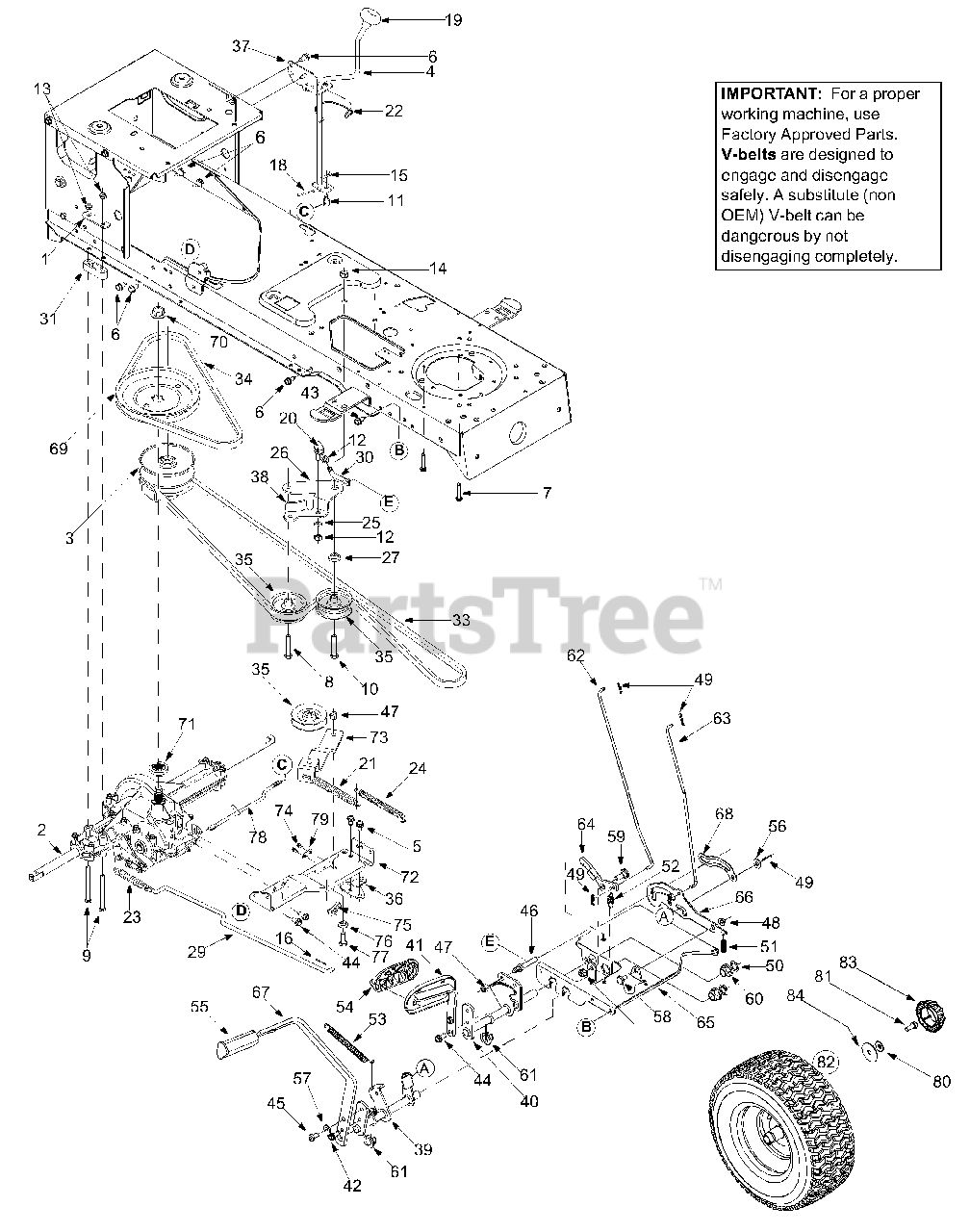

Drive, Controls, Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 17840-0637

Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-05851

Drive Assembly

$671.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-04423A

Variable Spd. Pulley Assembly

$177.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 647-04020

Shift Lever Assembly

$29.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0607

TT Screw 5/16-18 x 0.5

$6.99

$

In Stock, Qty 11

0

6

Troy-Bilt 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0809

TT Screw 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

8

Troy-Bilt 710-1007

TT Sems Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-1266

Hex Bolt 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-3144

Hex Bolt 3/8-16 x 2.0

$4.49

$

In Stock, Qty 7

0

11

Troy-Bilt 711-0736

Ferrule

$13.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

13

Troy-Bilt 912-0429

Hex Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

17

Troy-Bilt 914-0209

Hairpin Clip

$3.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 923-3018

Ball Joint

$16.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 932-0384

Extension Spring

$14.99

$

In Stock, only 4 left!

0

22

Troy-Bilt 732-0525

Spring Clip

$10.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 732-0716D

Extension Spring

$13.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt n/a

Grease

$

$

Currently unavailable

27

Troy-Bilt 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 747-04146C

Shift Rod

$22.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 747-04164

Brake Rod

$

$

Not available

30

Troy-Bilt 747-1127

Idler Adj. Rod

$42.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 948-0334

Spacer: Transaxle

$10.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 750-0566A

Spacer

$9.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 954-0467A

V Belt

$50.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 954-0468

V Belt

$30.99

$

In Stock, Qty 16

0

35

Troy-Bilt 756-04224

Flat Idler Pulley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 756-04324

Idler V Pulley 5L X 3.062 OD

$28.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 783-04283A

Shift Bracket

$

$

Not available

37

Troy-Bilt 783-04360

Shift Bracket

$

$

Not available

38

Troy-Bilt 783-04442

Double Idler Bracket: Center

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 753-05606

Brake Control Assembly

$

$

Not available

40

Troy-Bilt 647-0032A-0637

Speed Control Assembly

$

$

Not available

41

Troy-Bilt 683-0266

Drive Pedal Assembly

$

$

Not available

42

Troy-Bilt 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-1611B

TT Screw 5/16-18 x 0.75

$6.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 753-04872

Pin

$

$

Not available

47

Troy-Bilt 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 13

0

48

Troy-Bilt 712-3004A

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 726-04028

Push Nut
(Superseded to 712-04016)

$6.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 732-0335

Compression Spring

$

$

Not available

52

Troy-Bilt 732-0955

Extension Spring

$9.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

54

Troy-Bilt 735-0662

Control Pad

$11.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 735-3049A

Brake Pad

$12.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 736-0262

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 936-3008

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 938-0155

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 938-0380

Shoulder Screw
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 741-3065B

Hex Flange Bearing: Split

$8.49

$

In Stock, Qty 11

0

62

Troy-Bilt 747-04093A

Brake Lock Rod

$

$

Not available

63

Troy-Bilt 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 748-04039C

Cruise Latch

$

$

Not available

65

Troy-Bilt 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

66

Troy-Bilt 783-0732A

Lock-Out Bracket

$34.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 783-0773A

Brake Pedal
(Superseded to 753-05606)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-0773A-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0773A-4008

PEDAL - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0773A-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

68

Troy-Bilt 783-0780B

Neutral Return Bracket

Variations

Troy-Bilt 783-0780B-0637

BRACKET-NEUTRAL RE - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 956-04002

Transmission Pulley

$27.99

$

In Stock, Qty 14

0

70

Troy-Bilt 712-0700

Flange Nut 9/16-18

$10.99

$

In Stock, only 2 left!

0

71

Troy-Bilt 718-04407

Pulley Hub

$12.99

$

In Stock, only 2 left!

0

72

Troy-Bilt 753-05343

Transmission Torque Bracket

$

$

Not available

73

Troy-Bilt 753-05343

Idler Bracket

$

$

Not available

74

Troy-Bilt 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 15

0

75

Troy-Bilt 725-1644

Spring Switch

$9.99

$

In Stock, only 1 left!

0

76

Troy-Bilt 950-0736

Shoulder Spacer

$5.49

$

Usually ships in 3-6 days

0

77

Troy-Bilt 710-0514

Hex Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

78

Troy-Bilt 747-04146C

Shift Rod

$22.99

$

In Stock, only 1 left!

0

79

Troy-Bilt 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

80

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

81

Troy-Bilt 710-0627

Hex Cap Screw

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 634-0104

Wheel Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0981

WHEEL ASSEMBLY (20 x 8 x 8) - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 634-0070

Rim Assembly
(Superseded to 634-04369)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 734-1730

Tire

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

83

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 736-0430

Flat Washer

$4.49

$

In Stock, Qty 10

0
