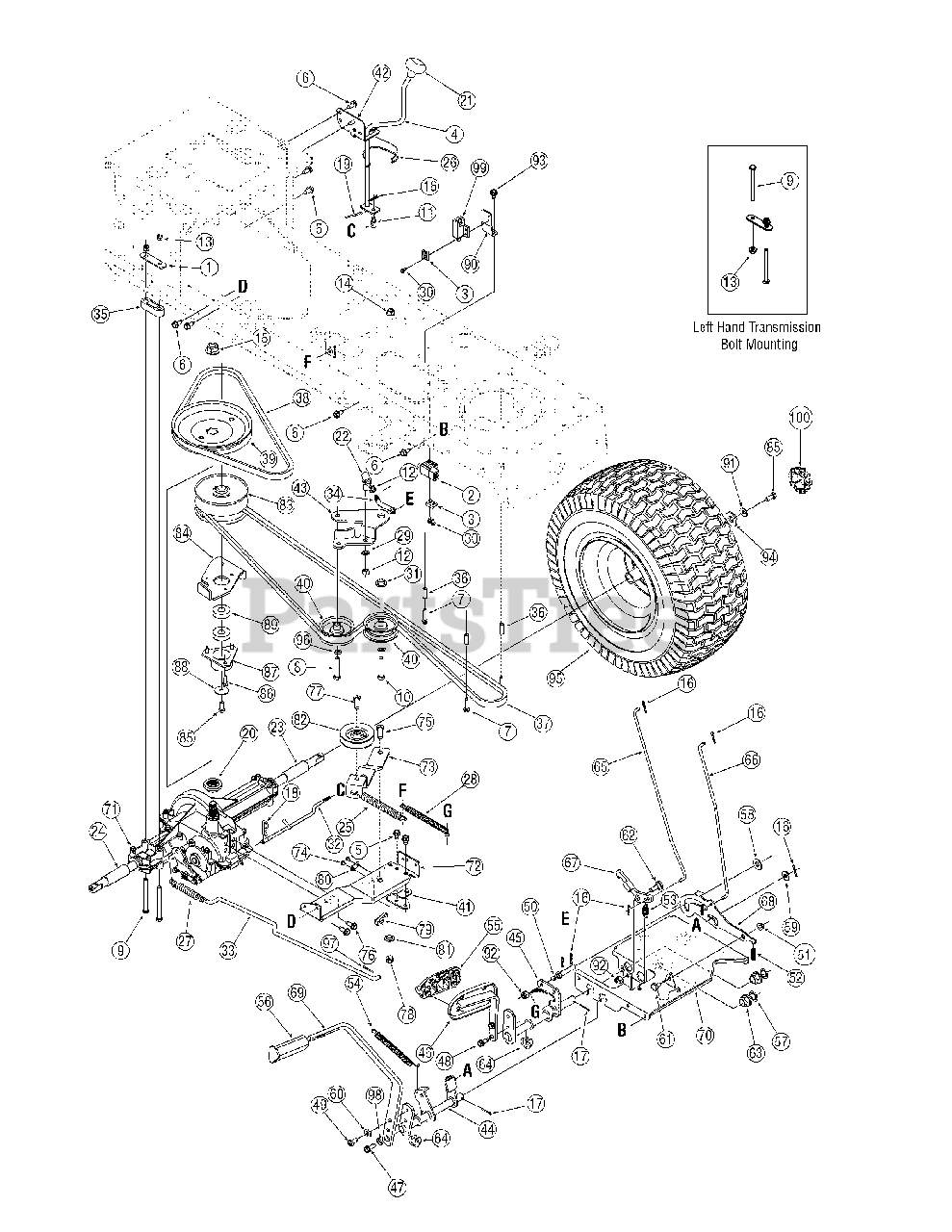

13AT605H718 - MTD Pro Lawn Tractor (2006) Drive Parts Diagram

Pro Lawn Tractor

Drive Parts Diagram

  • Title

1

MTD 17840-0637

Mounting Bracket, Transaxle

$11.99

$

Usually ships in 3-6 days

0

2

MTD 925-04039

Switch, Interlock

$24.99

$

In Stock, Qty 9

0

3

MTD 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

4

MTD 647-04020

Lever Assembly, Shift

$29.99

$

Usually ships in 3-6 days

0

5

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 12

0

6

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0809

Screw, 1/4-20, 1.250

$6.99

$

In Stock, Qty 19

0

8

MTD 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

9

MTD 710-1266

Screw, 5/16-18, 3.50, Gr5

$9.99

$

Usually ships in 3-6 days

0

10

MTD 710-3144

Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 7

0

11

MTD 711-0736

Adjustment Ferrule 1/4-20 x 1

$13.99

$

In Stock, only 2 left!

0

12

MTD 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

13

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

14

MTD 912-0431

Nut, Flange Lock, 3/8-16, GrF

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0700

Nut, Flange, 9/16-18, Gr2

$10.99

$

In Stock, only 2 left!

0

16

MTD 914-0104

Pin, Cotter,.072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

MTD 914-0209

Cotter Pin, Internal,.125 Dia.

$3.99

$

In Stock, only 2 left!

0

19

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

20

MTD 718-04407

Pulley Hub, 5/8 Spline

$12.99

$

In Stock, only 2 left!

0

21

MTD 720-04028

Knob, Shift

$10.99

$

In Stock, only 4 left!

0

22

MTD 923-3018

Ball Joint

$16.99

$

In Stock, Qty 20+

0

23

MTD 731-04602

Sleeve,.758 x.821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

24

MTD 731-04604

Sleeve,.758 x.821 x 2.4375

$6.99

$

In Stock, only 1 left!

0

25

MTD 932-0384

Spring, Extension,.62 Dia x 6.12

$14.99

$

In Stock, only 4 left!

0

26

MTD 732-0525

Spring Clip, Shifter

$10.99

$

In Stock, only 1 left!

0

27

MTD 732-0716D

Spring, Extension,.59 OD x 4.00

$13.99

$

In Stock, only 2 left!

0

28

MTD 732-0963

Spring, Extension,.50 Dia x 6.37

$9.99

$

In Stock, only 4 left!

0

29

MTD 936-0169

Washer, Lock, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

30

MTD 910-0224

Screw, #10-16,.50

$3.99

$

In Stock, only 2 left!

0

31

MTD 738-0372B

Spacer, Shoulder, 1.00 x.38 x.38

$9.49

$

In Stock, Qty 20+

0

32

MTD 747-04146C

Rod, Shift

$22.99

$

In Stock, only 1 left!

0

33

MTD 747-04164

Rod, Brake

$

$

Not available

34

MTD 747-1127

Idler Rod, Adjustable, 3/8

$42.99

$

Usually ships in 3-6 days

0

35

MTD 948-0334

Spacer,.68

$10.99

$

In Stock, only 1 left!

0

36

MTD 750-0566A

Spacer,.260 x.372 x 1.030

$9.99

$

In Stock, only 1 left!

0

37

MTD 954-0467A

Belt, V-Type

$50.99

$

In Stock, Qty 20+

0

38

MTD 954-0468

Belt, V-Type

$30.99

$

In Stock, Qty 17

0

39

MTD 956-04002

Pulley, V-Type, 7.25 Dia.

$27.99

$

In Stock, Qty 14

0

40

MTD 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

41

MTD 783-04283

Bracket, Shift

$

$

Not available

42

MTD 783-04360

Bracket, Shift, F-N-R

$

$

Not available

43

MTD 783-04442

Idler Bracket, Center Double

Variations

MTD 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

MTD 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

44

MTD 753-05606

Control Assembly, Brake

$

$

Not available

45

MTD 647-0032A-0637

Control Assembly, Speed

$

$

Not available

46

MTD 683-0266

Pedal Assembly

$

$

Not available

47

MTD 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-1260A

Screw,5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

49

MTD 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

50

MTD 711-04159B

Pin, 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

51

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

52

MTD 732-0335

Spring, Compression.,.405 x 1.17

$

$

Not available

52

MTD 732-0335

Spring, Compression.,.405 x 1.17

$

$

Not available

53

MTD 732-0955

Spring, Extension,.50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

54

MTD 732-0963

Spring, Extension,.50 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

55

MTD 735-0662

Pad

$11.99

$

Usually ships in 3-6 days

0

56

MTD 735-3049A

Pad, Brake

$12.99

$

In Stock, only 1 left!

0

57

MTD 736-0187

Washer, Flat,.64 x 1.24 x.06, HT

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0262

Washer, Flat,.385 x.870 x.092

$3.99

$

Usually ships in 3-6 days

0

59

MTD 936-0300

Washer, Flat,.406 x.875 x.059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

60

MTD 936-3008

Washer, Flat,.344 x.750 x.120

$6.99

$

Usually ships in 3-6 days

0

61

MTD 938-0155

Screw, Shoulder.437 Dia x.162

$6.99

$

Usually ships in 3-6 days

0

62

MTD 938-0380

Screw, Shoulder,.50 x.27 Lg
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

63

MTD 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

64

MTD 741-3065B

Split Bearing, Hex Flange

$8.49

$

In Stock, Qty 11

0

65

MTD 747-04093

Rod, Brake Lock
(Superseded to 747-04093A)

$

$

Not available

66

MTD 747-04096

Rod, Cruise Control

$15.99

$

Usually ships in 3-6 days

0

67

MTD 748-04039B

Latch, Cruise Control
(Superseded to 748-04039C)

$

$

Not available

68

MTD 783-0732A

Bracket, Lockout

$34.99

$

Usually ships in 3-6 days

0

69

MTD 783-0773A

Ped, Brake
(Superseded to 753-05606)

Variations

MTD 783-0773A-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

MTD 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

MTD 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

MTD 783-0773A-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0773A-4008

PEDAL - WINE RED (4008)

$

$

Not available

$

$

70

MTD 783-04612-0637

Bracket, Steering Support

$89.99

$

In Stock, only 3 left!

0

71

MTD 753-05851

Transmission, Single Speed

$671.99

$

Usually ships in 3-6 days

0

72

MTD 753-05343

Bracket Assembly, Torque

$

$

Not available

73

MTD 753-05343

Bracket, Idler

$

$

Not available

74

MTD 710-0227

Screw, #8-18 x.50

$4.49

$

In Stock, Qty 15

0

75

MTD 710-0514

Screw, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-0604A

Screw, 5/16-18,.625

$4.49

$

In Stock, Qty 20+

0

77

MTD 710-1315

Screw, 3/8-16, 1.250

$4.49

$

In Stock, only 3 left!

0

78

MTD 712-0130

Nut, Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 13

0

79

MTD 725-1644

Switch Spring, Short

$9.99

$

In Stock, only 1 left!

0

80

MTD 926-0320

Plate, Insulator

$6.99

$

In Stock, Qty 9

0

81

MTD 750-04294

Spacer, Shoulder

$7.49

$

Usually ships in 3-6 days

0

82

MTD 756-04209

Pulley, V-Type, 3.06

$22.99

$

In Stock, Qty 20+

0

83

MTD 956-04015A

Pulley Ass’y, Variable Speed
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

84

MTD 753-06035

Bracket, Pulley

$

$

Not available

85

MTD 710-0627

Screw, 5/16-24,.750

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-1652

Screw, 1/4-20,.625

$4.49

$

In Stock, Qty 20+

0

87

MTD 718-04012

Cup, Bearing

$21.99

$

In Stock, only 1 left!

0

88

MTD 736-0362

Washer, Flat

$4.49

$

In Stock, Qty 9

0

89

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

90

MTD 783-04722

Switch Bracket, Parking Brake

Variations

MTD 783-04722-0637

BRACKET-PARKING SW - POWDER BLACK (0637)

$

$

Not available

$

$

91

MTD 736-0242

Washer, Bell,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

92

MTD 712-04065

Nut, Flange Lock, 3/8-16,

$3.99

$

In Stock, Qty 20+

0

93

MTD 710-0599

Screw, 1/4-20 x.500 GrF

$4.49

$

In Stock, Qty 20+

0

94

MTD 736-0430

Flat Washer,.350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

95

MTD 634-0104

Wheel Assy Comp, 20 x 8 x 8

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

95

MTD 734-1730

Tire Only 20 x 8 x 8

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

95

MTD 634-0070

Rim Only w/ Valve Stem
(Superseded to 634-04369)

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

96

MTD 736-3010

Flat Washer, .407 x .812

$4.99

$

In Stock, only 2 left!

0

97

MTD 914-0507

Pin, Cotter, 3/32 x .750

$4.49

$

In Stock, Qty 17

0

98

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

99

MTD 925-3167

Switch

$14.99

$

In Stock, only 2 left!

0

100

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0
