13AT605G755 - Yard-Man Lawn Tractor (2005) (Walmart) PTO Parts Diagram

Lawn Tractor

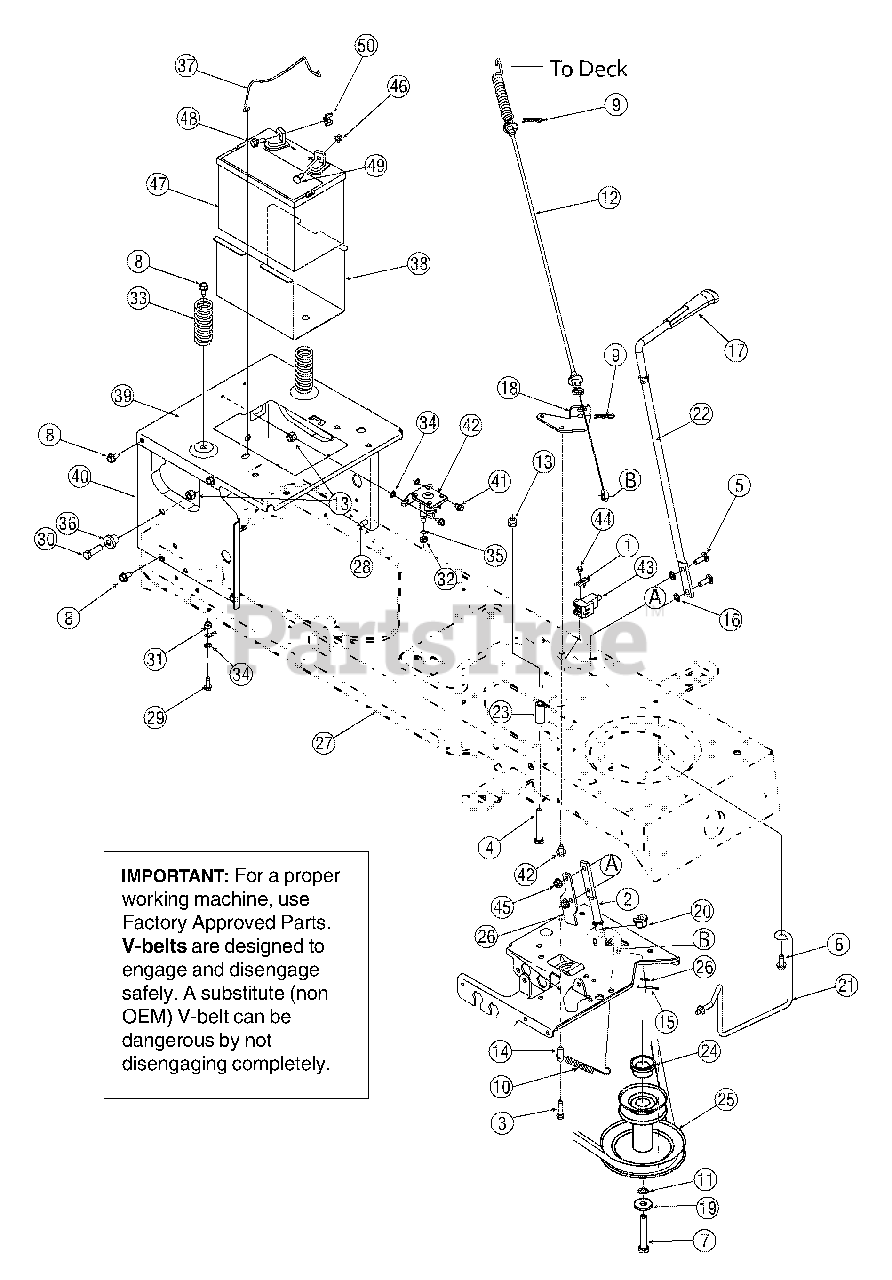

PTO Parts Diagram

  • Title

1

MTD 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

MTD 647-04036

Lever Assembly, Engagement
(Superseded to 947-04036A)

$43.99

$

Usually ships in 3-6 days

0

3

MTD 710-0809

Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

4

MTD 710-0859

Screw, 3/8-16, 2.50

$6.99

$

In Stock, Qty 16

0

5

MTD 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 14

0

6

MTD 710-1260A

Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3157A

Screw, 7/16-20, 3.25, Gr5

$10.99

$

In Stock, only 1 left!

0

8

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

10

MTD 732-04248

Extension Spring,.38OD x 3.9LG

$10.99

$

In Stock, only 2 left!

0

11

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 5

0

12

MTD 746-04092

Deck Engagement Cable
(Superseded to 946-04092)

$43.99

$

In Stock, Qty 10

0

13

MTD 712-04065

Nut, Flange Lock, 3/8-16, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

14

MTD 750-0566A

Spacer,.260 x.372 x 1.030LG

$9.99

$

In Stock, only 1 left!

0

15

MTD 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

16

MTD 726-0201

Nut, Speed,.3125 ID

$6.99

$

Usually ships in 3-6 days

0

17

MTD 731-2111A

Knob, PTO
(Superseded to 731-2111B)

$

$

Not available

18

MTD 783-04590

Cable Bracket

Variations

MTD 783-04590-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 736-0322

Washer, Flat,.450 x1.250 x.164

$9.49

$

In Stock, Qty 8

0

20

MTD 741-0708

Bearing, Flange, Hex Split.500 ID

$4.49

$

In Stock, only 1 left!

0

21

MTD 747-04307

Keeper Rod, Belt
(Superseded to 747-04857)

$22.99

$

In Stock, Qty 14

0

22

MTD 747-1112D

Engagement Handle, Deck
(Superseded to 747-1112D-0637)

Variations

MTD 747-1112D-0637

PTO Engagement Handle - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

23

MTD 748-0415B

Spacer,.385 ID x.635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

24

MTD 750-0956

Spacer, 1.010 x 1.400 x.825

$19.99

$

In Stock, only 2 left!

0

25

MTD 756-04064A

Pulley, Engine, 3.39 x 6.12 Diameter
(Superseded to 956-04064A)

$87.99

$

Usually ships in 3-6 days

0

26

MTD 783-0744A

Stop Bracket, Engagement

Variations

MTD 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

MTD 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

27

MTD 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

MTD 683-04173-0637

FRAME ASM-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 12

0

29

MTD 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 12

0

31

MTD 712-04064

Nut, Flange Lock, 1/4-20, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

33

MTD 732-04035

Spring, Compression, 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

34

MTD 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

35

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

36

MTD 738-04058

Spacer, Shoulder,.38 x 1.0 x.70

$4.49

$

In Stock, only 2 left!

0

37

MTD 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

38

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 783-04329A

Seat Bracket, Frame

Variations

MTD 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04329A-4008

No Longer Available BRACKET-FR - WINE RED (4008)

$

$

Not available

$

$

40

MTD 783-04375A

Frame, Upper
(Superseded to 783-04809C)

Variations

MTD 783-04375A-0606

FRAME-UPPER - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04375A-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

MTD 783-04375A-0638

FRAME-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04375A-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

MTD 783-04375A-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04375A-0691

FRAME-UPPER - BLACK JACK (0691)

$

$

Not available

$61.99

$

Usually ships in 3-6 days

0

41

MTD 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

42

MTD 725-1426

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

43

MTD 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

44

MTD 710-0224

Screw, #10-16,.50
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

45

MTD 712-04063

Nut, Flange, Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

46

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

47

MTD 725-1737A

Battery, 190 CCA
(Superseded to 925-1707D)

$

$

Not available

48

MTD 738-1132

Screw, Shoulder,.250 x.15, 1/4-20

$5.49

$

In Stock, only 2 left!

0

49

MTD 710-0703

Screw, Carriage, 1/4-20,.75

$4.49

$

In Stock, Qty 15

0

50

MTD 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0
