13AT604H452 - Yard Machines Lawn Tractor (2003) (Walmart) Frame Components & Seat Parts Diagram

Lawn Tractor

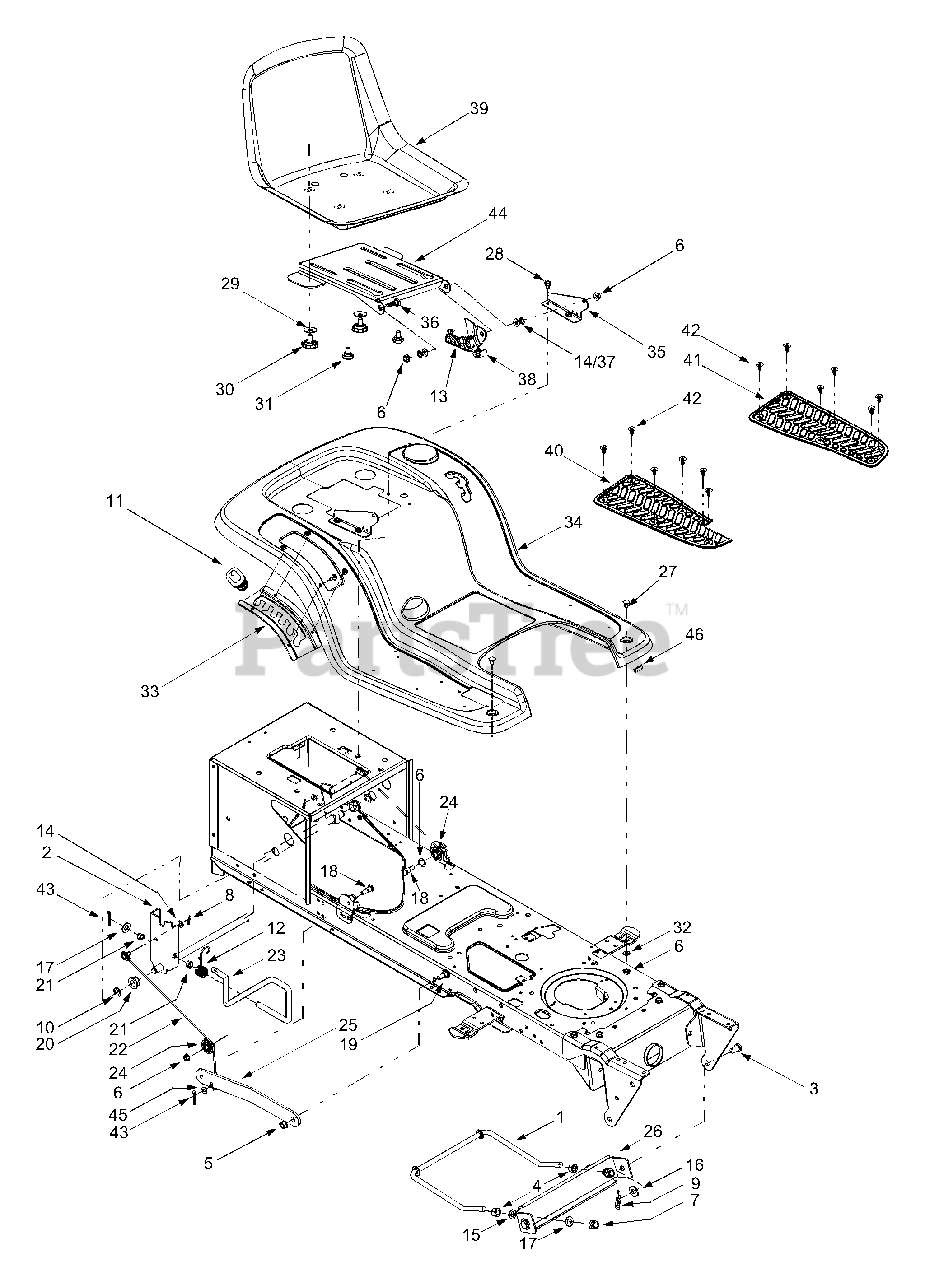

Frame Components & Seat Parts Diagram

  • Title

1

MTD 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

MTD 683-0197B

Lift Shaft Assembly
(Superseded to 983-0197)

Variations

MTD 683-0197B-0637

SHAFT-LIFT ASM - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

3

MTD 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 16

0

4

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

10

MTD 716-0106

E-ring

$4.49

$

In Stock, only 2 left!

0

11

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

12

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 732-1184

Extension Spring, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 5

0

16

MTD 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

MTD 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.99

$

Usually ships in 3-6 days

0

19

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

MTD 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

MTD 746-0968

Lift Cable, 16.16 (T604G)

$19.99

$

In Stock, Qty 20+

0

22

MTD 746-1144

Lift Cable, 15.62 (T604H)

$28.99

$

Usually ships in 3-6 days

0

23

MTD 747-1111A

Lift Handle

$

$

Not available

24

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

25

MTD 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

MTD 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

MTD 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

MTD 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

MTD 710-0260A

Carriage Bolt, 5/16 x .62

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0331

Bell Washer, .390 x 1.13 x .062

$3.99

$

In Stock, Qty 16

0

30

MTD 720-04009

Knob, 3/8-16
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

31

MTD 738-04012

Shoulder Screw
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

32

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, only 4 left!

0

33

MTD 783-1010

Lift Adjustment Bracket
(Superseded to 783-1010A-0637)

Variations

MTD 783-1010-0637

PLATE-DECK LIFT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

34

MTD 783-04437A

Fender, 7-Style

Variations

MTD 783-04437A-0638

FENDER-HYDRO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04437A-0650

FENDER-HYDRO - RED METALLIC (0650)

$

$

Not available

MTD 783-04437A-0665

FENDER-HYDRO - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04437A-0691

FENDER-HYDRO - BLACK JACK (0691)

$

$

Not available

MTD 783-04437A-0716

FENDER-HYDRO - CUB YELLOW-99 (0716)

$

$

Not available

$

$

34

MTD 731-04591A

Holder, 7-Style Fender Cup

$15.99

$

In Stock, only 1 left!

0

35

MTD 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

MTD 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

MTD 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

37

MTD 726-0201

Speed Clip

$6.99

$

Usually ships in 3-6 days

0

38

MTD 783-0209A

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

39

MTD 757-04011

Medium Back Seat, Yellow
(Superseded to 957-04011)

$

$

Not available

40

MTD 735-0672

RH Foot Pad, Rubber

$

$

Not available

41

MTD 735-0673

LH Foot Pad, Rubber

$

$

Not available

42

MTD 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

43

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

44

MTD 783-04081

Seat Pivot Bracket
(Superseded to 783-04081D-0637)

Variations

MTD 783-04081-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

$41.99

$

In Stock, only 1 left!

0

45

MTD 736-0204

Flat Washer, .344 x .62

$4.49

$

In Stock, Qty 7

0

46

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0
