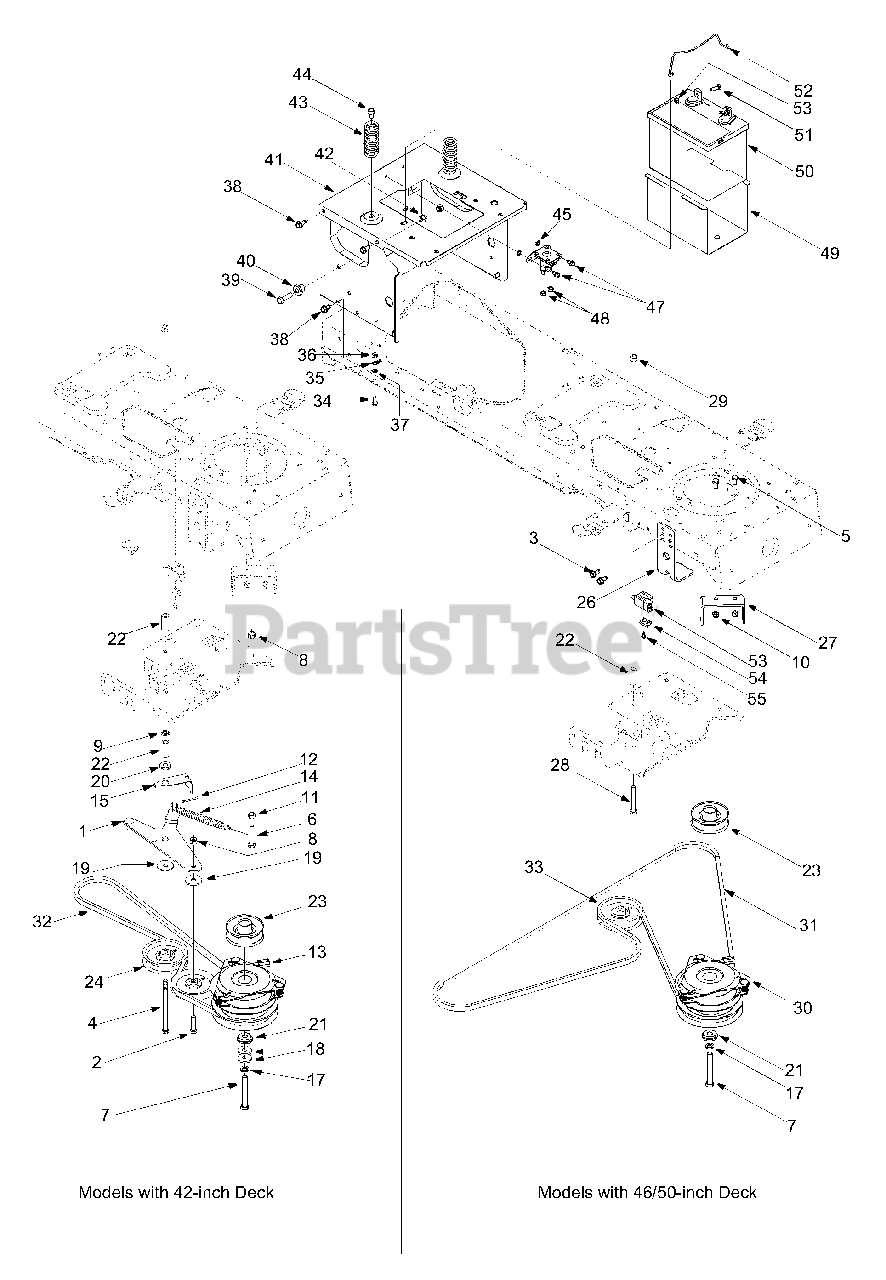

13AS608H731 - Huskee Lawn Tractor (2004) (Tractor Supply) PTO Electric, Battery, Frame Parts Diagram

Lawn Tractor

PTO Electric, Battery, Frame Parts Diagram

  • Title

1

MTD 683-0450

Engagement Plate

Variations

MTD 683-0450-0637

PLATE ASM-ENGAGE - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0520

Hex Bolt 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

3

MTD 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0831

Hex Bolt 3/8-16 x 5.5

$

$

Not available

5

MTD 710-3025

Hex Bolt 5/16-18 x 0.625

$3.99

$

In Stock, Qty 8

0

6

MTD 710-3144

Hex Bolt 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3157

Hex Bolt 7/16-20 x 3.25
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

8

MTD 712-0130

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

9

MTD 712-0229

Push Nut

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

MTD 717-1708

PTO Clutch
(Superseded to 917-1708)

$621.99

$

Usually ships in 3-6 days

0

14

MTD 732-0384

Extension Spring
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

15

MTD 732-0991A

Belt Guard

$14.99

$

Usually ships in 3-6 days

0

16

MTD 736-0140

Flat Washer

$7.49

$

In Stock, Qty 6

0

17

MTD 736-0171

Lock Washer

$4.49

$

In Stock, Qty 5

0

18

MTD 736-0322

Flat Washer

$9.49

$

In Stock, Qty 8

0

19

MTD 736-3039

Flat Washer

$5.49

$

In Stock, Qty 7

0

20

MTD 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 19

0

21

MTD 738-0785

Shoulder Spacer
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

22

MTD 748-0415B

Spacer

$7.49

$

In Stock, Qty 10

0

23

MTD 756-0407B

Engine Pulley

$

$

Currently unavailable

24

MTD 756-0627B

Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

25

MTD 756-1208

Idler Pulley

$35.99

$

In Stock, Qty 5

0

26

MTD 783-04467

Deck Stop Bracket

Variations

MTD 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

27

MTD 783-1003

Clutch Bracket
(Superseded to 783-1003-0637)

Variations

MTD 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0859

Hex Bolt 3/8-16 x 2.5

$6.99

$

In Stock, Qty 17

0

29

MTD 712-0130

Lock Nut

$3.99

$

In Stock, Qty 11

0

30

MTD 717-04080

PTO Clutch
(Superseded to 917-04080)

$558.99

$

Usually ships in 3-6 days

0

31

MTD 754-04033

V Belt 46"/50" Deck
(Superseded to 954-04033A)

$50.99

$

In Stock, only 2 left!

0

32

MTD 754-0497

V Belt 42" Deck
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 18

0

33

MTD 756-1229

Pulley

$47.99

$

In Stock, Qty 20+

0

34

MTD 710-0642

TT Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

35

Ground Wire

Note: (For reference only)

$

$

Not available

36

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

37

MTD 738-0143

Shoulder Screw 3/8-16

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0726

AB Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

39

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

40

MTD 738-04058

Shoulder Spacer

$4.49

$

In Stock, only 1 left!

0

41

MTD 783-04329

Seat Bracket
(Superseded to 783-04329A)

Variations

MTD 783-04329-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-04329-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

42

MTD 712-0130

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

43

MTD 732-04035

Compression Spring

$10.99

$

In Stock, only 3 left!

0

44

MTD 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0222

Lock Washer

$5.99

$

In Stock, only 3 left!

0

47

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

48

MTD 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

49

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 725-1706A

Battery
(Superseded to 925-1707D)

$

$

Not available

51

MTD 710-0703

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

52

MTD 747-04121A

Battery Hold-Down rod

$6.49

$

In Stock, Qty 20+

0

53

MTD 712-0271

Sems Nut

$4.49

$

In Stock, Qty 19

0
