13AS608G033 - MTD Lawn Tractor (2000) (Ace Hardware) PTO Drive, Battery, Frame Components Parts Diagram

Lawn Tractor

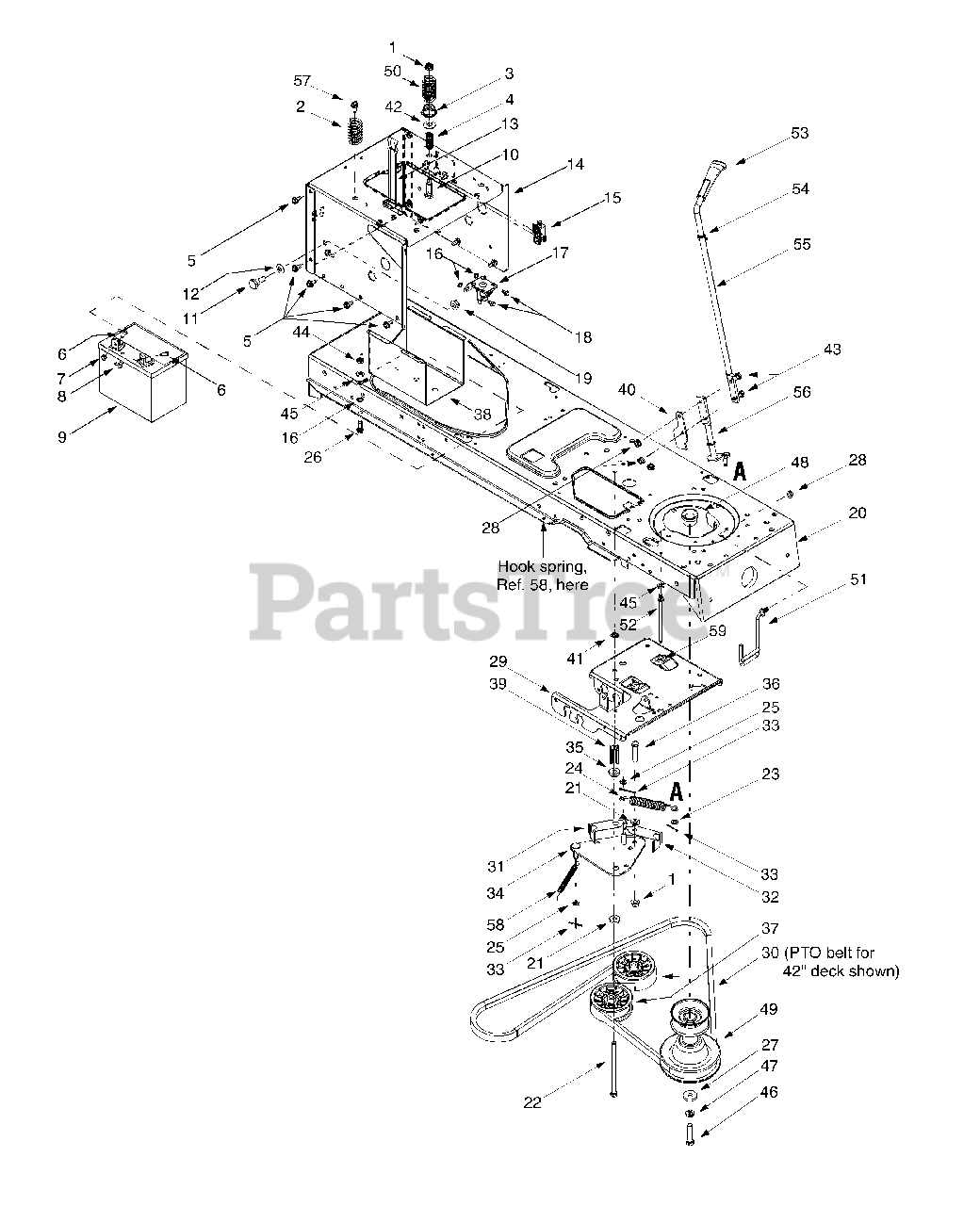

PTO Drive, Battery, Frame Components Parts Diagram

  • Title

1

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

MTD 732-0996

Compression Spring, 1.31 x 3.0

$

$

Not available

3

MTD 783-0733

Spacer Cup, 1.5 OD

$

$

Not available

4

MTD 732-0997

Compression Spring, .66 OD x 1.5

$

$

Not available

5

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-3044

Wing Nut, 1/4-20

$

$

Not available

9

MTD 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

10

MTD 738-1014

Shoulder Screw, .5 x 1.25, 3/8-16

$4.49

$

In Stock, only 1 left!

0

11

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

12

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

13

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

14

MTD 783-1031

Hitch Plate

Variations

MTD 783-1031-0637

No Longer Available HITCH PLATE-UPPER - POWDER BLACK (0637)

$

$

Not available

MTD 783-1031-0650

No Longer Available HITCH PLAT - RED METALLIC (0650)

$

$

Not available

MTD 783-1031-0665

No Longer Available HITCH PLAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-1031-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

MTD 783-1031-0716

No Longer Available HITCH PLAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

15

MTD 725-1747

Safety Interlock Plunger Switch
(Superseded to 925-1747)

$40.99

$

Usually ships in 3-6 days

0

16

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

17

MTD 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

18

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

20

MTD 683-0304

Lower Frame Assembly

Variations

MTD 683-0304-0637

No Longer Available LOWER FRAM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304-0650

No Longer Available LOWER FRAM - RED METALLIC (0650)

$

$

Not available

MTD 683-0304-0665

No Longer Available LOWER FRAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304-0691

No Longer Available LOWER FRAM - BLACK JACK (0691)

$

$

Not available

MTD 683-0304-0716

No Longer Available LOWER FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

22

MTD 710-0831

Hex Cap Screw, 3/8-16 x 5.5

$

$

Not available

23

MTD 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

24

MTD 732-0944

Extension Spring, .75 x 6.75 INCH

$10.99

$

In Stock, only 1 left!

0

25

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

26

MTD 710-0642

Self-tapping Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0322

Flat Washer, .45 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

28

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

MTD 783-0653C

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653C-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

30

MTD 754-0485

PTO Belt (42-inch Decks w/ Manual PTO)
(Superseded to 954-0485)

$84.99

$

In Stock, Qty 9

0

30

MTD 754-0486

PTO Belt (46-inch Decks w/ Manual TO)
(Superseded to 954-0486A)

$58.99

$

In Stock, only 1 left!

0

31

MTD 732-0991

Belt Guard
(Superseded to 732-0991A)

$14.99

$

Usually ships in 3-6 days

0

32

MTD 732-0990

Belt Guard

$8.49

$

In Stock, only 1 left!

0

33

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

34

MTD 683-0302

PTO Engagement Plate

Variations

MTD 683-0302-0637

Engagement Plate Assembly - POWDER BLACK (0637)

$37.99

$

In Stock, only 1 left!

0

$37.99

$

In Stock, only 1 left!

0

35

MTD 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

36

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)

$6.99

$

In Stock, Qty 20+

0

37

MTD 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

38

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

40

MTD 783-0744A

Engagement Stop Bracket

Variations

MTD 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

MTD 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

41

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

42

MTD 736-0105

Bell Washer, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

44

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

45

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

MTD 710-3029

Hex Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

47

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

48

MTD 750-0956

Spacer

$19.99

$

In Stock, only 2 left!

0

49

MTD 756-0982A

Engine Pulley
(Superseded to 756-0982B)

$72.99

$

In Stock, only 1 left!

0

50

MTD 732-0735

Extension Spring, 1.318 x 2.37
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

51

MTD 647-0053

Belt Guard
(Superseded to 747-1243)

$

$

Not available

52

MTD 711-1044

Keeper Pin
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

53

MTD 731-2111A

PTO Knob
(Superseded to 731-2111B)

$

$

Not available

54

MTD 736-0108

Flat Washer, .510 x .750 x .033

$6.99

$

Usually ships in 3-6 days

0

55

MTD 747-1112A

PTO Handle
(Superseded to 747-1112D-0637)

$40.99

$

Usually ships in 3-6 days

0

56

MTD 647-0046

PTO Lever
(Superseded to 647-0064)

$

$

Not available

57

MTD 710-0650

Self-Tapping Screw,15/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

58

MTD 732-0995

Extension Spring, .5 x 6.0

$8.49

$

Usually ships in 3-6 days

0

59

MTD 741-0708

Hex Split Flange Bearing

$4.49

$

In Stock, only 3 left!

0
