13AR609G022 - Yard Machines Lawn Tractor (2003) (Cotter & Company) Axle, Wheels Front, Steering Parts Diagram

Lawn Tractor

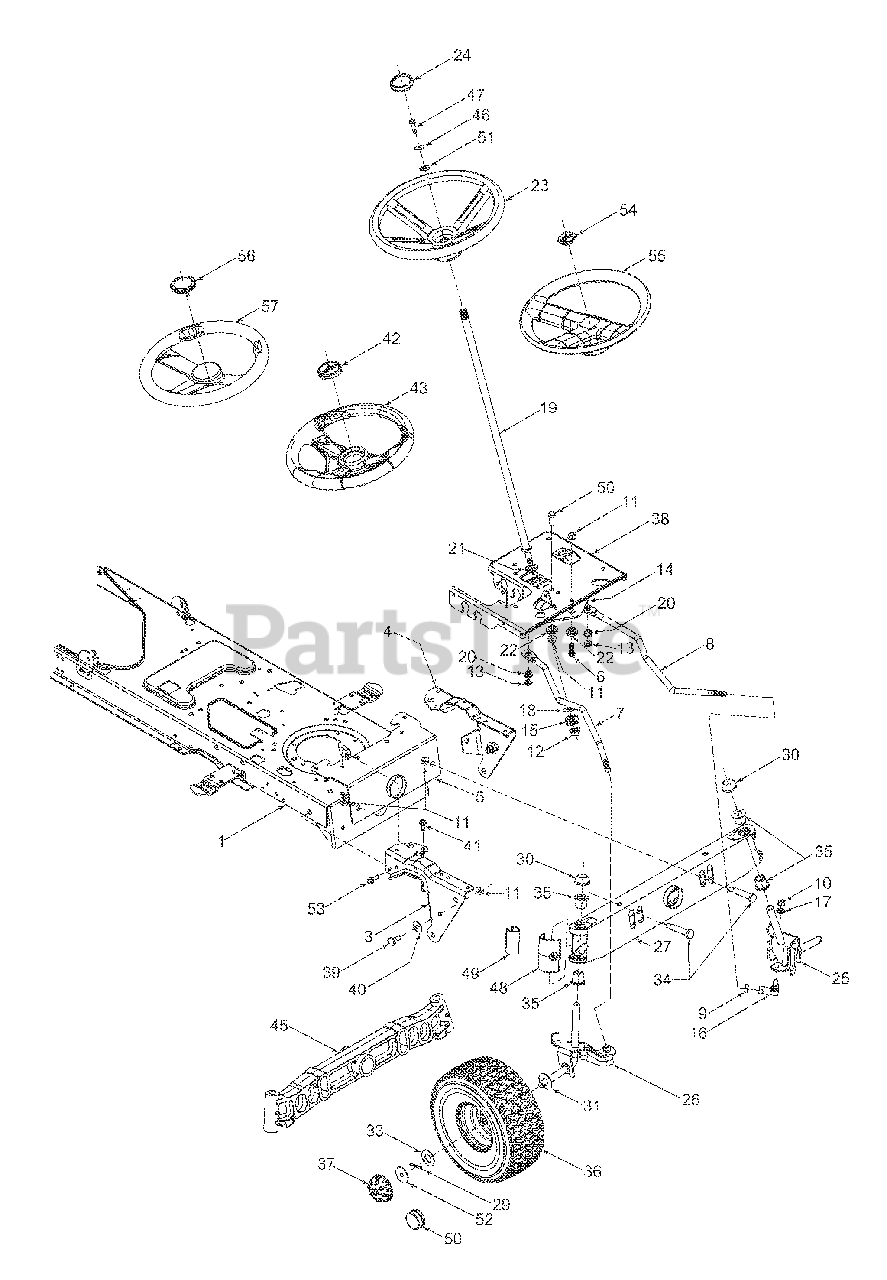

Axle, Wheels Front, Steering Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

?2

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

MTD 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726B-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726B-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726B-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726B-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

MTD 783-0727A-0606

PIVOT SUPPORT BRACKET (LH) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727A-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727A-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727A-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-04095

Hex Cap Screw, 3/8-16 x 1.0 (Grade 5)

$5.49

$

In Stock, Qty 20+

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

MTD 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

MTD 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

23

MTD 631-0027

Standard Steering Wheel, 13.25
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

24

MTD 731-0220

Steering Wheel Cap, Round
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

25

MTD 638-0019A

LH Axle Assembly, .625 Diameter
(Superseded to 938-0019A)

Note: Models equipped with a 42-inch deck.

$57.99

$

In Stock, Qty 10

0

MTD 638-0021

LH Axle Assembly, .625/.750 Diameter
(Superseded to 938-0021)

Note: Models equipped with a 46-inch deck.

$103.99

$

In Stock, Qty 5

0

26

MTD 638-0020A

RH Axle Assembly, .625 Diameter
(Superseded to 938-0020A)

Note: Models equipped with a 42-inch deck.

$

$

Not available

MTD 638-0022

RH Axle Assembly, .625/.750 Diameter
(Superseded to 938-0022)

Note: Models equipped with a 46-inch deck.

$99.99

$

In Stock, only 1 left!

0

27

MTD 683-0128A

Steel Pivot Bar
(Superseded to 683-0128B)

Variations

MTD 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

29

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

30

MTD 726-0214

Push Cap, .625

Note: Models equipped with a 42-inch deck.

$10.99

$

In Stock, only 4 left!

0

MTD 726-0341

Push Cap, .75

Note: Models equipped with a 46-inch deck.

$4.99

$

In Stock, Qty 20+

0

31

UNKNOWN

$

$

Not available

33

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

MTD 741-0659

Flange Bearing, .632 ID x .937 OD
(Superseded to 941-0659)

Note: Models equipped with a 42-inch deck.

$5.49

$

In Stock, Qty 5

0

MTD 741-0660

Flange Bearing, .76 ID x .937 OD
(Superseded to 741-0660A)

Note: Models equipped with a 46-inch deck.

$3.49

$

In Stock, Qty 20+

0

36

MTD 634-0105A

Wheel Assembly, 15 x 6 x 6 Square Shoulder
(Superseded to 634-0105B)

Variations

MTD 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-0105A-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0105A-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

MTD 634-0056A

Wheel Assembly,15 x 6 x 6 Round Shoulder
(Superseded to 634-0056B-0911)

Variations

MTD 634-0056A-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0914

Tire and Wheel Assembly - Cheng Gray (0914)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0916

Tire and Wheel Assembly - Kenda Gray (0916)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$202.99

$

In Stock, only 1 left!

0

$249.99

$

In Stock, only 3 left!

0

MTD 634-0172

Rim Assembly Only
(Superseded to 934-0172A)

Variations

MTD 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$103.99

$

Usually ships in 3-6 days

0

MTD 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$103.99

$

Usually ships in 3-6 days

0

MTD 634-0172-0674

Rim Assembly - YARDMAN YELLOW (0674)

$103.99

$

Usually ships in 3-6 days

0

MTD 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$103.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

MTD 734-1731

Tire Only, Square Shoulder

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

MTD 734-0864

Tire Only, Round Shoulder

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

37

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

Note: (Ref. 33 Required)

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

42

MTD 731-04040

Deluxe Steering Wheel

$9.99

$

In Stock, only 1 left!

0

43

MTD 634-04008

Steering Wheel, Soft Grip

$

$

Not available

?44

MTD 731-0484A

Standard Hub Cap
(Superseded to 931-0484A)

Note: (Ref. 33 Not Necessary)

$6.49

$

In Stock, Qty 20+

0

45

MTD 719-0399B

Cast Iron Pivot Bar

Note: Models equipped with a 42-inch deck.

$

$

Not available

MTD 719-0525B

Cast Iron Pivot Bar
(Superseded to 919-04177E)

Note: Models equipped with a 46-inch deck.

$248.99

$

In Stock, only 1 left!

0

46

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

47

MTD 710-0643

Hex Bolt, 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

48

MTD 731-1291A

Pivot Bar End Cap w/ Fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 11

0

49

MTD 731-1649

Pivot Bar End Cap w/o Fitting

$

$

Not available

50

MTD 710-0514

Hex Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

52

MTD 736-0430

Flat Washer, .35 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

53

MTD 710-1238

Screw, Hex Washer, 5/16-18 x .87
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

54

MTD 731-1459A

Steering Wheel Cap

$8.49

$

Usually ships in 3-6 days

0

55

MTD 731-1687

Steering Wheel
(Superseded to 931-1687)

$53.99

$

Usually ships in 3-6 days

0

56

MTD 731-2625

Steering Wheel Cap

$

$

Not available

57

MTD 731-2624

Steering Wheel, Soft Grip

$

$

Not available
