13AR608P731 - Huskee Lawn Tractor (2004) (Tractor Supply) Frame Components & Seat Parts Diagram

Lawn Tractor

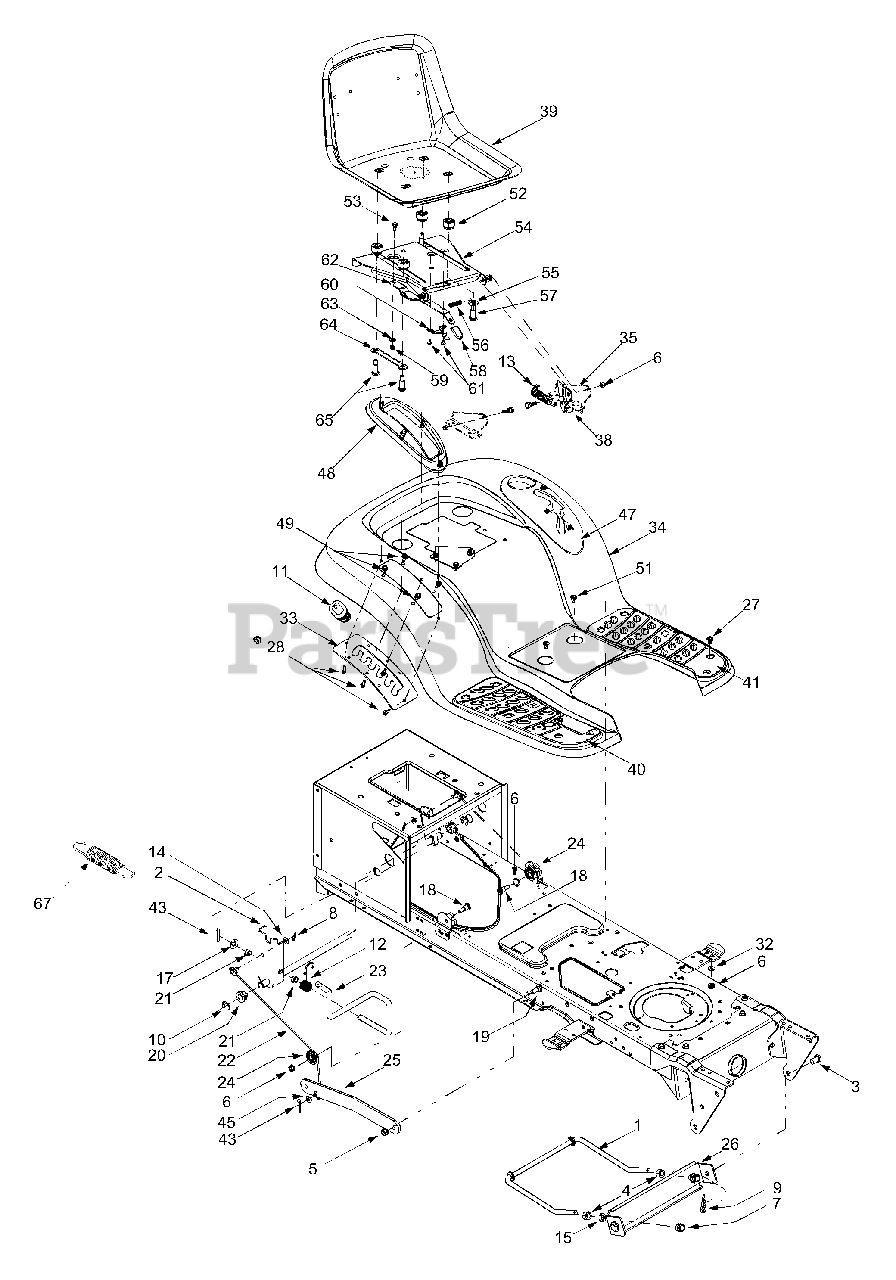

Frame Components & Seat Parts Diagram

  • Title

1

MTD 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

MTD 683-0197B

Lift Shaft Assembly
(Superseded to 983-0197)

Variations

MTD 683-0197B-0637

SHAFT-LIFT ASM - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

3

MTD 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 16

0

4

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-0429

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

10

MTD 716-0106

E-Ring

$4.49

$

In Stock, only 2 left!

0

11

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

12

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 732-1184

Extension Spring, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 5

0

16

MTD 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

MTD 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.99

$

Usually ships in 3-6 days

0

19

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

MTD 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

MTD 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

MTD 746-1144

Lift Cable, 15.62

$28.99

$

Usually ships in 3-6 days

0

23

MTD 747-1111A

Lift Handle

$

$

Not available

24

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

25

MTD 783-0678A

Lift Arm
(Superseded to 783-0678C)

Variations

MTD 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

MTD 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

MTD 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

MTD 710-0260A

Carriage Bolt, 5/16 x .62

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, only 4 left!

0

33

MTD 783-1010A

Lift Adjustment Bracket
(Superseded to 783-1010A-0637)

Variations

MTD 783-1010A-0637

PLATE-DECK LIFT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

34

MTD 783-04333A

Fender

Variations

MTD 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

MTD 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04333A-4008

No Longer Available FENDER - 4 - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

35

MTD 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

MTD 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

37

MTD 726-0201

Speed Clip

$6.99

$

Usually ships in 3-6 days

0

38

MTD 783-0209A

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

39

MTD 757-04003

Seat: High Back
(Superseded to 757-04003A)

$

$

Not available

40

MTD 735-0672

Foot Pad RH, Rubber

$

$

Not available

MTD 723-0484

Foot Pad RH, Grit

$

$

Not available

41

MTD 735-0673

Foot Pad LH, Rubber

$

$

Not available

MTD 735-0483

Foot Pad LH, Grit

$

$

Currently unavailable

42

MTD 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

43

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

45

MTD 736-0204

Flat Washer, .344 x .62

$4.49

$

In Stock, Qty 7

0

47

MTD 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

48

MTD 731-2104C

Shift Lever Cover w/ Cup Holder
(Superseded to 931-2104C)

$35.99

$

Usually ships in 3-6 days

0

49

MTD 710-0895

Self-Tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

51

MTD 710-0599

Self-tapping Screw, 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

52

MTD 731-04074

Spacer: Seat Adjustment

$7.49

$

In Stock, Qty 20+

0

53

MTD 738-0137A

Shoulder Screw 1/4-20

$10.99

$

In Stock, Qty 10

0

54

MTD 783-0738A

Seat Bracket
(Superseded to 783-0738D)

Variations

MTD 783-0738A-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738A-0606

Seat Pivot Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0738A-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738A-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738A-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738A-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

55

MTD 736-3019

Flat Washer

$5.99

$

In Stock, Qty 11

0

56

MTD 732-0499

Compression Spring

$9.49

$

In Stock, only 1 left!

0

57

MTD 738-0966

Shoulder Screw 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

58

MTD 720-0309A

Grip: Seat Adjustment

$9.49

$

Usually ships in 3-6 days

0

59

MTD 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

60

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

61

MTD 710-1268

B Screw #10-16 x 0.375

$4.49

$

In Stock, only 2 left!

0

62

MTD 783-0739

Seat Lever

Variations

MTD 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

63

MTD 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

64

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

65

MTD 738-0966

Shoulder Screw 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

66

MTD 710-0870

Hex Washer Hd. Screw

$6.49

$

In Stock, only 1 left!

0

67

MTD 732-0934

Extension Spring (Lift Assist)

$11.99

$

In Stock, only 1 left!

0
