13AR608P731 - Huskee Lawn Tractor (2004) (Tractor Supply) Engine Accessories Parts Diagram

Lawn Tractor

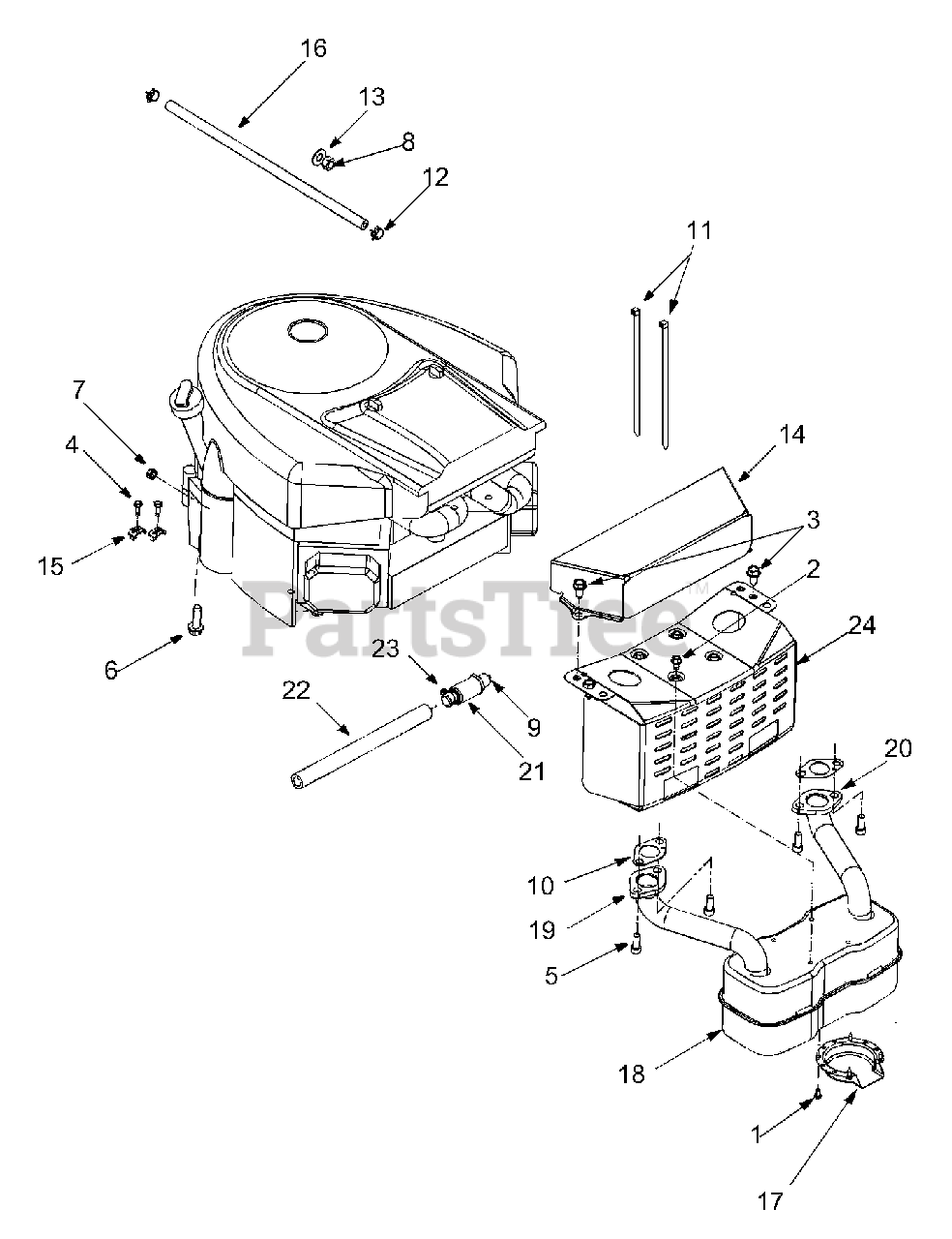

Engine Accessories Parts Diagram

  • Title
1

MTD 710-0227

Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Hd. Screw 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0271

Sems Nut

$4.49

$

In Stock, Qty 19

0

8

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

MTD 721-0331

Pipe Sealant

$

$

Currently unavailable

10

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-0625C

Heat Shield

$111.99

$

Usually ships in 3-6 days

0

15

MTD 751B221535

Clamp: Casing

$10.99

$

In Stock, Qty 10

0

16

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

17

MTD 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

18

MTD 751-0616A

Dual Inlet Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

19

MTD 751-0650A

Exhaust Pipe RH
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

20

MTD 751-0651A

Exhaust Pipe LH
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

21

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

22

MTD 751-3141

Hose Extension: Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 6

0

23

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 13

0

24

MTD 783-0615C

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615C-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
