13AR608G022 - Lawn Chief Lawn Tractor (1999) (Cotter & Company) Electrical Briggs & Stratton Opposed Twin Parts Diagram

Lawn Tractor

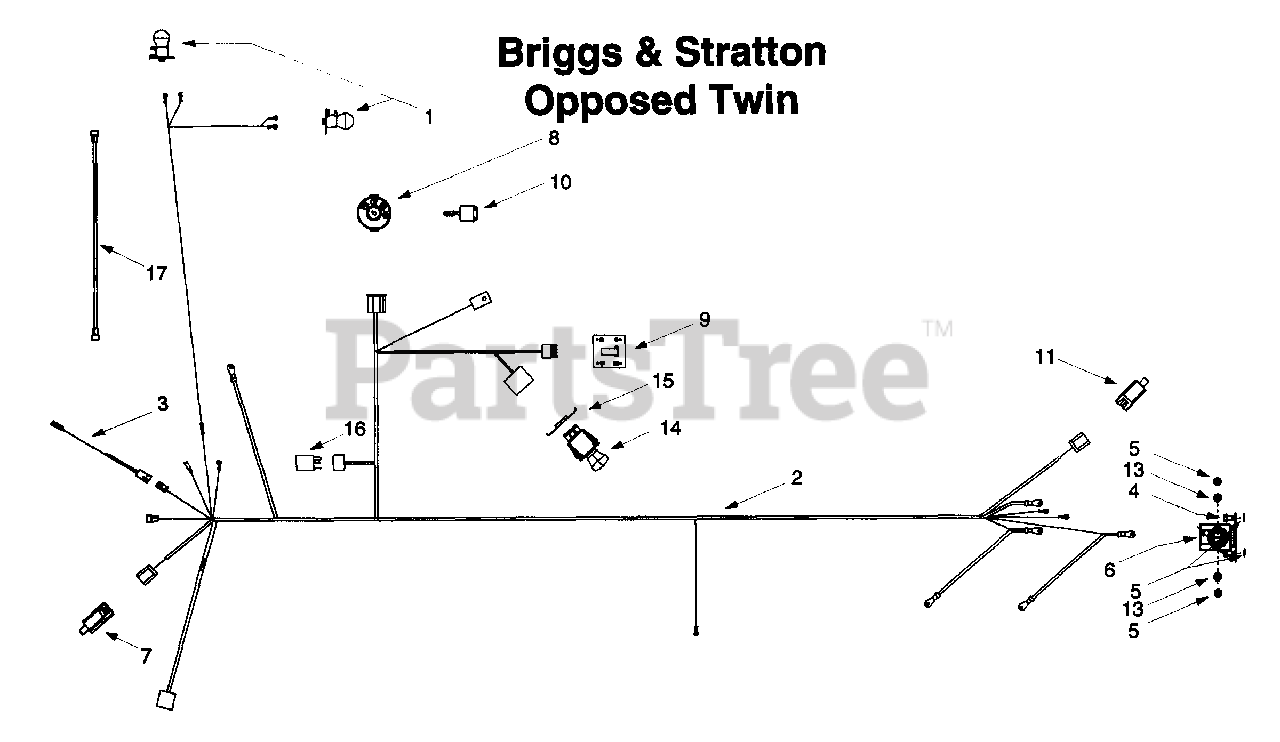

Electrical Briggs & Stratton Opposed Twin Parts Diagram

  • Title

1

MTD 625-0051

Bulb/Socket Headlight Assembly
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

MTD 725-1739

Bulb Only
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

MTD 725-1649

Socket Only
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

2

MTD 629-0928

Wiring Harness
(Superseded to 753-0870)

$238.99

$

Usually ships in 3-6 days

0

3

MTD 629-0126

Harness Adapter, #18 x 5"

$

$

Not available

4

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

6

MTD 725-1426

Solenoid, 12-volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

7

MTD 725-1657A

Snap Mount Safety Interlock Switch (Brake)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

8

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

9

MTD 725-1742

Indicator Monitor w/o Hour Meter
(Superseded to 753-0908)

$

$

Not available

MTD 725-1743

Indicator Monitor w/Hour Meter
(Superseded to 753-0908)

$

$

Not available

10

MTD 725-1745

Ignition Key W/Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

11

MTD 725-1747

Safety Plunger Switch (Seat)
(Superseded to 925-1747)

$40.99

$

Usually ships in 3-6 days

0

?12

MTD 736-0222

External Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

13

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

14

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

15

MTD 783-0462

Retainer Bracket

$

$

Not available

16

MTD 725-1648

Electric PTO Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

17

MTD 629-0921

Harness Adapter, 10"

Note: (B&S Opposed Twin Only)

$

$

Currently unavailable
