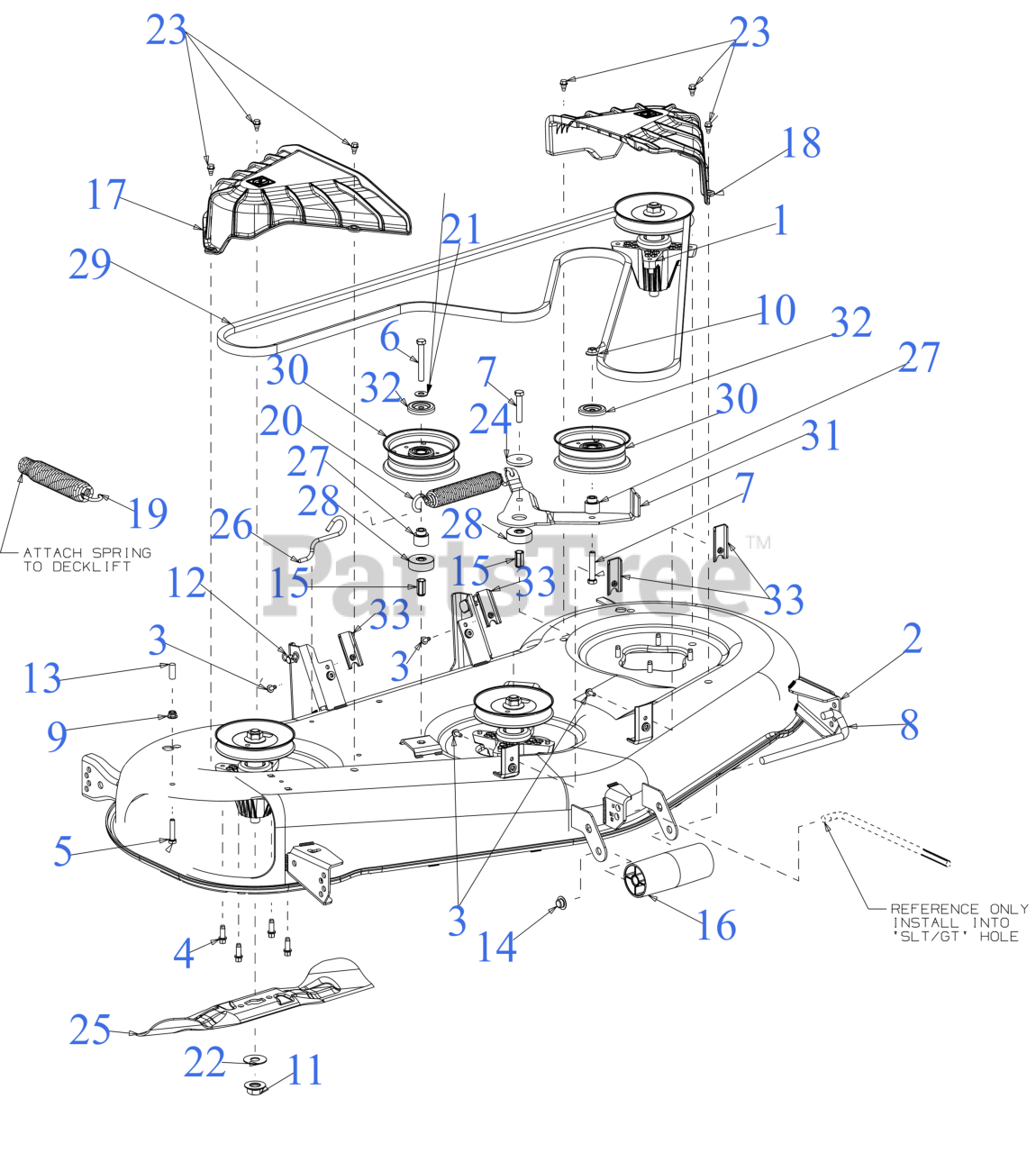

13AQA2BWA66 - Troy-Bilt Super Bronco XP 54" Lawn Tractor (2022) Deck Parts Diagram

Super Bronco XP 54" Lawn Tractor

Deck Parts Diagram

  • Title

1

Troy-Bilt 618P09236

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$139.99

$

In Stock, Qty 9

0

2

Troy-Bilt 983-05104C

54" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$958.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

4

Troy-Bilt 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 6

0

5

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

7

Troy-Bilt 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 711-06377

ROLLER PIN 1/2 x 7.31

$20.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

11

Troy-Bilt 712-07050

HEX FLANGE NUT 5/8-18 GR5

$5.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 728-05016

NUT RIVET 3/8-16

$5.99

$

In Stock, Qty 10

0

16

Troy-Bilt 731-05679B

ROLLER

$18.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-09968B

SPINDLE COVER (RH)

$28.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-09969C

SPINDLE COVER (LH)

$28.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-05242C

LIFT ASSIST SPRING (LARGE)

$22.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, Qty 8

0

23

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 738-05082

SHOULDER SPACER

$8.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 742P05086

18.611" BLADE (2IN1) (S SHAPE CENTER HOLE)

$30.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 490-110-C194

Cub Cadet 54" HI LIFT BLADE SET (S SHAPE CENTER HOLE) (-05086)

Note: Retail Package Part

$97.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 490-110-Y194

Troy-Bilt 54" HI LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$92.99

$

In Stock, Qty 11

0

25

Troy-Bilt 742P05086-X

18.611" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$35.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 490-110-C205

Cub Cadet 54" XTREME BLADE SET (S SHAPE CENTER HOLE) (-05086-X)

Note: Retail Package Part

$104.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 490-110-Y205

Troy-Bilt 54" XTREME BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$99.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 742P05086-L

18.611" LOW LIFT (S SHAPE CENTER HOLE)

$35.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 490-110-C201

Cub Cadet 54" LOW LIFT BLADE SET (S SHAPE CENTER HOLE) (-05086-L)

Note: Retail Package Part

$112.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 490-110-Y201

Troy-Bilt 54" LOW LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$106.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 750-06184

SPACER .385ID x 1.75OD x .585THK

$11.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 954-05025A

V-BELT B SEC x 139

$87.99

$

In Stock, Qty 15

0

29

Troy-Bilt 490-501-C064

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$87.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 490-501-M064

Genuine Factory Parts 54" DECK BELT

Note: Retail Packaged Part

$

$

Not available

30

Troy-Bilt 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 783E08309B

IDLER PIVOT BRACKET

$42.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 783-08404A

LIFT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-08404A-0606

BRACKET-LIFT STOP - MAJESTIC ORANGE (0606)

$5.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-08404A-0637

BRACKET-LIFT STOP - POWDER BLACK (0637)

$5.49

$

Usually ships in 3-6 days

0

Troy-Bilt 783-08404A-4028

BRACKET-LIFT STOP - SEARS YELLOW (4028)

$4.49

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0
