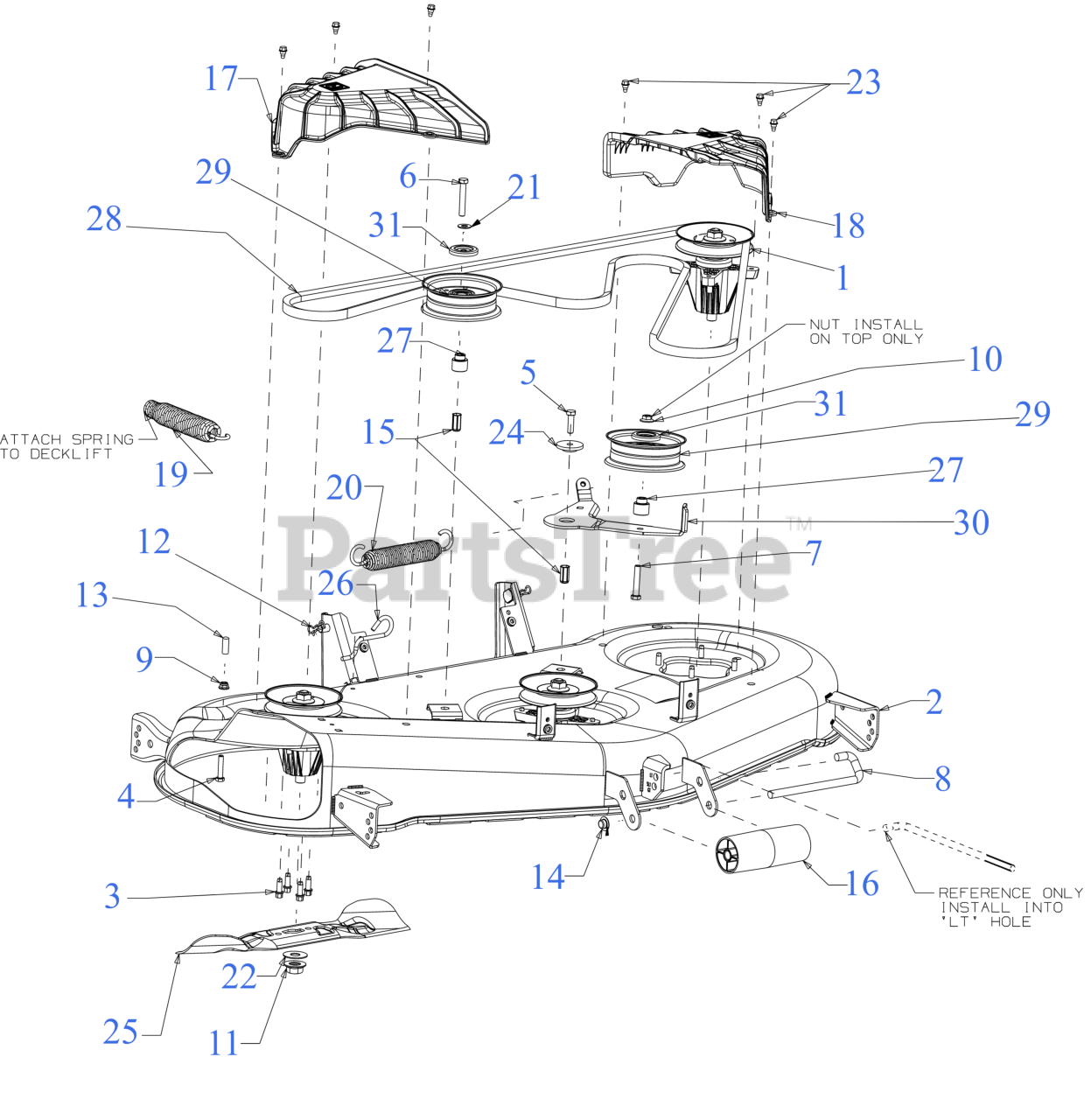

13AQA1BQA66 (50 K) - Troy-Bilt Super Bronco XP 50" Lawn Tractor (2023) Deck Parts Diagram

Super Bronco XP 50" Lawn Tractor

Deck Parts Diagram

  • Title

1

Troy-Bilt 618P09255

SPINDLE ASSEMBLY (5.37 DIA)

Note: (See Separate Breakdown)

$132.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 983-05103D

50" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$873.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-06322

SCREW 5/16-18 x .875

Note: 12X TORQUE TO 200-300 IN-LBS

$5.49

$

In Stock, Qty 6

0

4

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

Note: 1X TORQUE TO 143-174 IN-LBS

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

Note: TORQUE TO 350-420 IN-LBS

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3011

SCREW 3/8-16 x 2.25 GR5

Note: TORQUE TO 350-420 IN-LBS

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3096

SCREW 3/8-16 x 2.0 GR 8

Note: 1X TORQUE TO 256-313 IN-LBS

$7.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 711-06377

ROLLER PIN 1/2 x 7.31

$20.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

11

Troy-Bilt 712-07050

HEX FLANGE NUT 5/8-18 GR5

Note: 3X TORQUE TO 70-90 FT-LBS

$5.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 728-05016

NUT RIVET 3/8-16

$5.99

$

In Stock, Qty 10

0

16

Troy-Bilt 731-05679B

ROLLER

$18.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-09968B

SPINDLE COVER (RH)

$28.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-09969C

SPINDLE COVER (LH)

$28.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-05242C

LIFT ASSIST SPRING (LARGE)

$22.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 732-05360B

SPRING 1.25" DIA x 8.5" LONG

$34.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, Qty 8

0

23

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

Note: 6X TORQUE TO 75-90 IN-LBS

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 738-05082

SHOULDER SPACER

$8.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 742P05094

17.271" BLADE (2IN1) (S SHAPE CENTER HOLE)

$28.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 490-110-C193

Cub Cadet 50" HI LIFT BLADE SET (S SHAPE CENTER HOLE) (-05094)

Note: Retail Packaged Part

$91.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 742P05094-X

17.271" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$32.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 490-110-C204

Cub Cadet 50" XTREME BLADE SET (S SHAPE CENTER HOLE) (-05094-X)

Note: Retail Packaged Part

$97.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 742P05094-L

17.271" LOW LIFT (S SHAPE CENTER HOLE)

$30.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 490-110-C200

Cub Cadet 50" LOW LIFT BLADE SET (S SHAPE CENTER HOLE) (-05094-X)

$97.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 954-04077A

V-BELT B SEC x 134

$82.99

$

In Stock, Qty 12

0

28

Troy-Bilt OCC-754-04077

Cub Cadet 50" DECK BELT

Note: Retail Packaged Part

$82.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 490-501-M021

Genuine Factory Parts 50" DECK BELT

Note: Retail Packaged Part

$82.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 783E08309B

IDLER PIVOT BRACKET

$42.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
