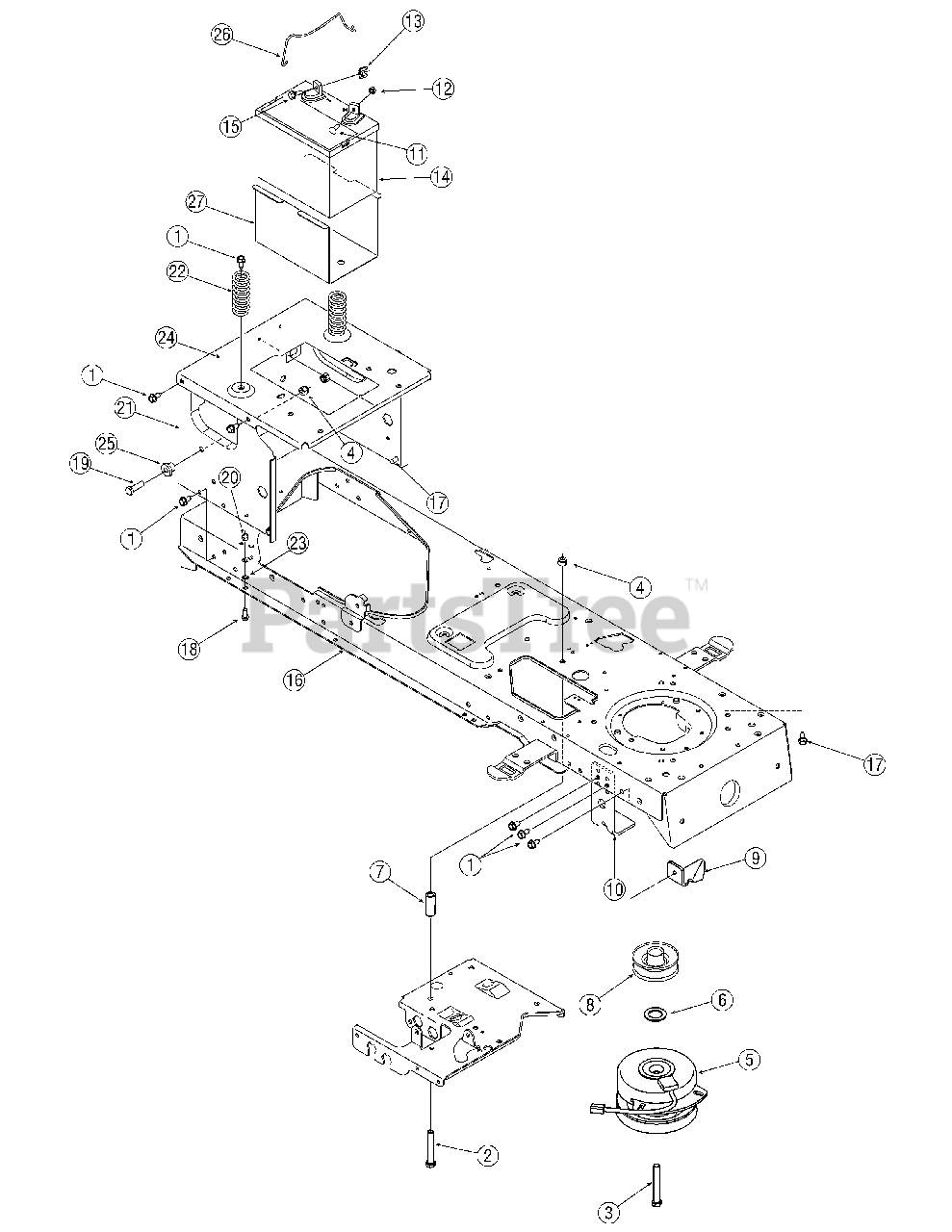

13AQ611H705 - Ranch King Lawn Tractor (2005) PTO Electric Parts Diagram

Lawn Tractor

PTO Electric Parts Diagram

  • Title

1

MTD 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0859

Screw, 3/8-16, 2.50, Gr5

$6.99

$

In Stock, Qty 16

0

3

MTD 710-3157A

Screw, 7/16-20, 3.25, Gr5, Lock

$10.99

$

In Stock, Qty 20+

0

4

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

5

MTD 717-04174

PTO Clutch, Electric
(Superseded to 917-04174A)

$679.99

$

Usually ships in 3-6 days

0

6

MTD 736-0277

Washer, Flat, 1.031 x 1.620 x.095

$4.49

$

In Stock, Qty 20+

0

7

MTD 748-0415B

Spacer,.385 ID x.635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

8

MTD 756-0978A

Pulley, Engine, Electric PTO
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

9

MTD 783-04419A

Clutch Bracket
(Superseded to 783-04419B-0637)

Variations

MTD 783-04419A-0637

Clutch Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, only 4 left!

0

$14.99

$

In Stock, only 4 left!

0

10

MTD 783-04467

Deck Bracket, Up-Stop

Variations

MTD 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

11

MTD 710-0703

Screw, Carriage, 1/4-20,.75, Gr5

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 725-1750A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

15

MTD 738-1132

Screw, Shoulder,.250 x.150, 1/4-20

$5.49

$

In Stock, only 2 left!

0

16

MTD 683-04173

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

Variations

MTD 683-04173-0637

FRAME ASM-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

18

MTD 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

21

MTD 783-04375A

Frame, Upper
(Superseded to 783-04809C)

Variations

MTD 783-04375A-0606

FRAME-UPPER - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04375A-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

MTD 783-04375A-0638

FRAME-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04375A-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

MTD 783-04375A-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04375A-0691

FRAME-UPPER - BLACK JACK (0691)

$

$

Not available

$61.99

$

Usually ships in 3-6 days

0

22

MTD 732-04035

Spring, Compression, 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

23

MTD 736-0222

Washer, Lock, 1/4, External

$5.99

$

In Stock, only 3 left!

0

24

MTD 783-04329A

Seat Bracket, Frame

Variations

MTD 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04329A-4008

No Longer Available BRACKET-FR - WINE RED (4008)

$

$

Not available

$

$

25

MTD 738-04058

Spacer, Shoulder,.38 x 1.0 x.70

$4.49

$

In Stock, only 3 left!

0

26

MTD 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

27

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$
