13AQ611H705 - Ranch King Lawn Tractor (2005) Deck Electric PTO Parts Diagram

Lawn Tractor

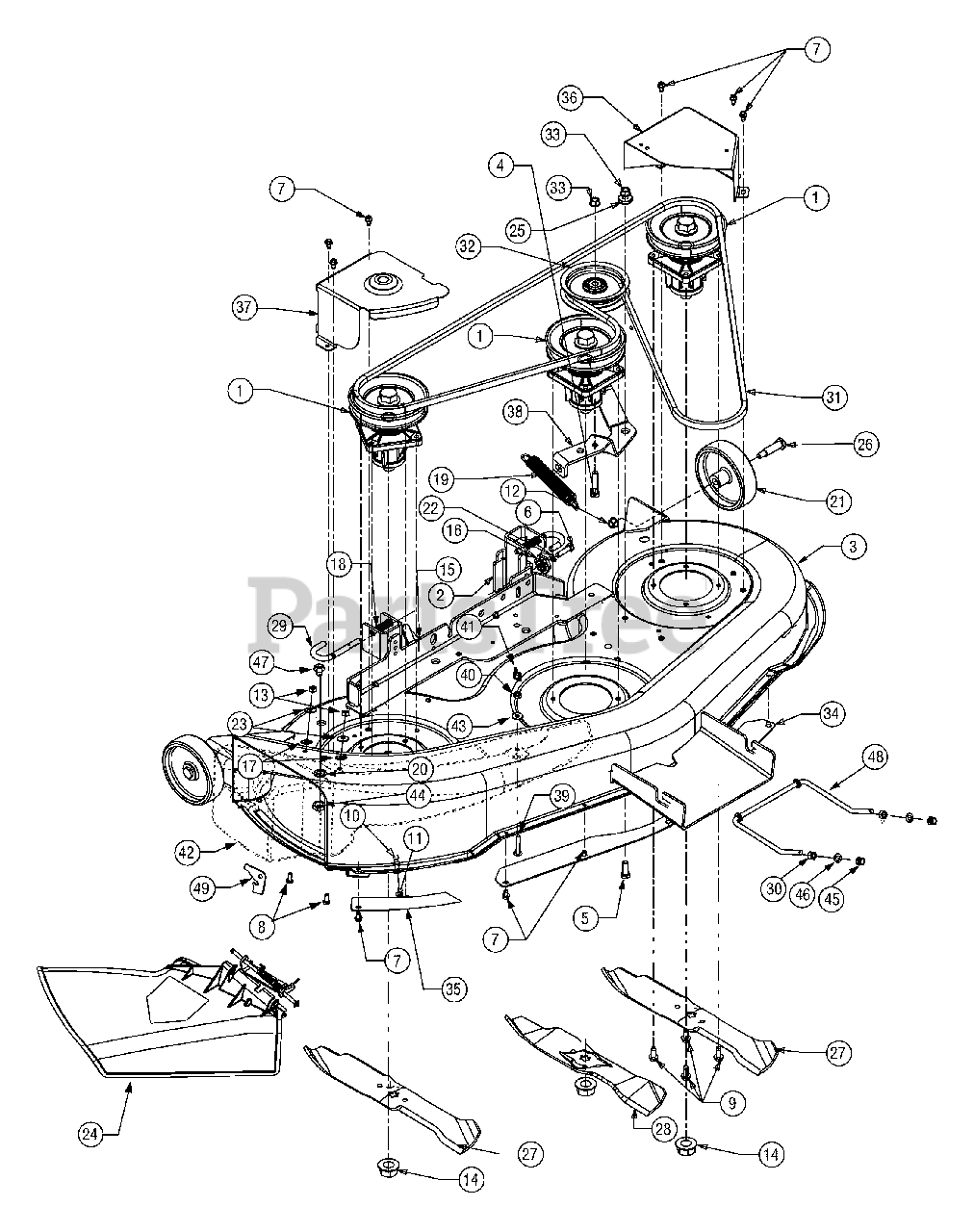

Deck Electric PTO Parts Diagram

  • Title

1

MTD 618-0625

Spindle Assembly
(Superseded to 918-0625B)

$140.99

$

In Stock, only 4 left!

0

1

MTD 17983

Bearing Shield
(Superseded to 504-01396)

Note: Not shown

$

$

Not available

1

MTD 619-0042A

Spindle Housing
(Superseded to 753-07015)

Note: Not shown

$57.99

$

In Stock, only 1 left!

0

1

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 753-06348

Spindle Shaft 6.11 LG., Kit

Note: Not shown, replaces 738-1186 spindle shaft 6.05 LG.

$38.99

$

In Stock, only 1 left!

0

1

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

MTD 750-0952

Spacer: 792 X 1.060 X 1.800 LG

Note: Not shown, use with spindle shaft 6.11 LG.

$7.49

$

In Stock, Qty 6

0

1

MTD 756-1188

Pulley:5.75 Dia

Note: Not shown

$36.99

$

In Stock, Qty 8

0

2

MTD 683-0254B

Bracket Assembly, Deck Hanger

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

3

MTD 683-04104A

Deck Weldment, 46-inch
(Superseded to 983-04104A)

Variations

MTD 683-04104A-0606

DECK ASM 46" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-04104A-0637

DECK ASM 46" - POWDER BLACK (0637)

$

$

Not available

MTD 683-04104A-0638

DECK ASM 46" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-04104A-0650

DECK ASM 46" - RED METALLIC (0650)

$

$

Not available

MTD 683-04104A-0665

DECK ASM 46" - YARDMAN GREEN (0665)

$

$

Not available

$1031.99

$

Usually ships in 3-6 days

0

4

MTD 710-0347

Screw, 3/8-16, 1.75

$5.49

$

In Stock, Qty 20+

0

5

MTD 710-0514

Hex Cap Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Screw, Hx. Wash. Hd. Tapp, 1/4-20, 0.5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0751

Screw, Hex Cap, 1/4-20,.620, Gr5

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1260A

Self-tapping Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

10

MTD 711-04069

Pin, Grass catcher
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

11

MTD 712-04064

Nut, Nylon Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

14

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

MTD 714-0411

Cotter Pin, 1.0

$

$

Currently unavailable

16

MTD 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

17

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

18

MTD 732-0306A

Compression Spring, 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

19

MTD 732-0594A

Extension Spring, 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

20

MTD 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

21

MTD 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

22

MTD 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 736-0270

Washer, Belleville,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

24

MTD 731-1032B

Chute Assembly, Side Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

25

MTD 738-0372B

Spacer, Shoulder, 1.00 x.38 x.38

$9.49

$

In Stock, Qty 20+

0

26

MTD 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

27

MTD 742-0611A

Blade, 16.28, Star, 3-in-1
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

28

MTD 742-0612A

Blade, 14.88, 3-in-1
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 15

0

29

MTD 747-1116

Rod, Handle, Deck Release.375 Dia

$12.99

$

In Stock, Qty 6

0

30

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

31

MTD 754-04033

Belt, V-Type
(Superseded to 954-04033A)

$50.99

$

In Stock, only 3 left!

0

32

MTD 756-04129

Idler Pulley, 4.25
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

33

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

34

MTD 783-0141

Deck Skirt, Center

Variations

MTD 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

35

MTD 783-0142

Deck Skirt, RH
(Superseded to 783-0142-0637)

Variations

MTD 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

36

MTD 783-1348B

Belt Cover, LH
(Superseded to 783-1348D)

Variations

MTD 783-1348B-0483

Belt Cover, LH 46" Gray - CHARCOAL GRAY (0483)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0637

Belt Cover, LH 46" - POWDER BLACK (0637)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0650

Belt Cover, LH 46" - RED METALLIC (0650)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0691

Belt Cover, LH 46" - BLACK JACK (0691)

$50.99

$

In Stock, only 3 left!

0

$46.99

$

Usually ships in 3-6 days

0

37

MTD 783-0805C

Belt Cover, RH

Variations

MTD 783-0805C-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

MTD 783-0805C-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

MTD 783-0805C-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0805C-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$

$

Not available

MTD 783-0805C-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0805C-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

MTD 783-0805C-4008

COVER-BELT RH - WINE RED (4008)

$

$

Not available

$

$

38

MTD 783-1421A

Bracket, Idler
(Superseded to 783-1421B)

Variations

MTD 783-1421A-0716

Idler Bracket - CUB YELLOW-99 (0716)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-1421A-0637

Idler Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

39

MTD 710-0578

Screw, 1/4-20, 1.50

$4.49

$

Usually ships in 3-6 days

0

40

MTD 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

41

MTD 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

MTD 731-1636

Mulch Plug

$149.99

$

In Stock, only 1 left!

0

43

MTD 736-0173

Washer, Flat,.28 X.74 X.063

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

45

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-3084

Flat Washer,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

47

MTD 738-04146

Plug, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

48

MTD 747-1130B

Front Deck Adjustment Rod

$41.99

$

In Stock, only 3 left!

0

49

N/A

Chute Stop

$

$

Not available
