13AQ609G063 - Troy-Bilt Lawn Tractor (2000) Muffler & Engine Accessories, B&S Opposed Twin Parts Diagram

Lawn Tractor

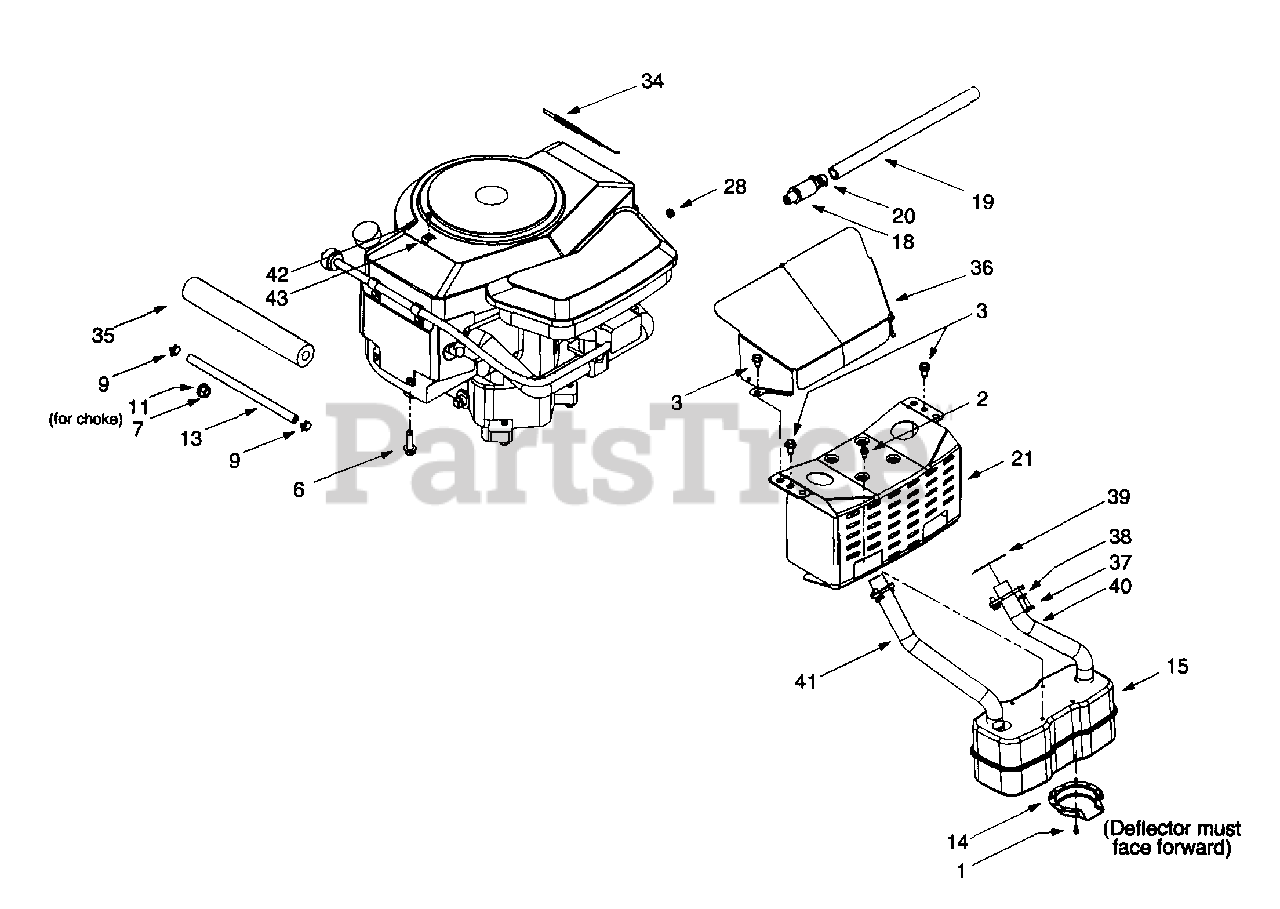

Muffler & Engine Accessories, B&S Opposed Twin Parts Diagram

  • Title

1

Troy-Bilt 710-0148

Self-tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0300

Lock Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

18

Troy-Bilt 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

Troy-Bilt 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Troy-Bilt 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20 (For starter cable)

$4.49

$

In Stock, Qty 19

0

34

Troy-Bilt 746-1086

Throttle Cable (OHV V-Twin & Opposed Twin)
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 722-0263

Foam, .625 x 1.5 x 10 (Fits over fuel line)
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 783-0357A

Heat Shield (Opposed Twin)
(Superseded to 783-0357B-0637)

Variations

Troy-Bilt 783-0357A-0637

Heat Shield - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .620 (Grade 5)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

39

Troy-Bilt 721-0346

Exhaust Gasket (Opposed Twin)

$8.49

$

Usually ships in 3-6 days

0

40

MTD 751-0623

LH Exhaust Pipe (Opposed Twin)

$

$

Not available

41

MTD 751-0624

RH Exhaust Pipe (Opposed Twin)

$

$

Not available

42

Troy-Bilt 712-0779A

Screw, #10-16 x .5

$

$

Currently unavailable

43

Troy-Bilt 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0
