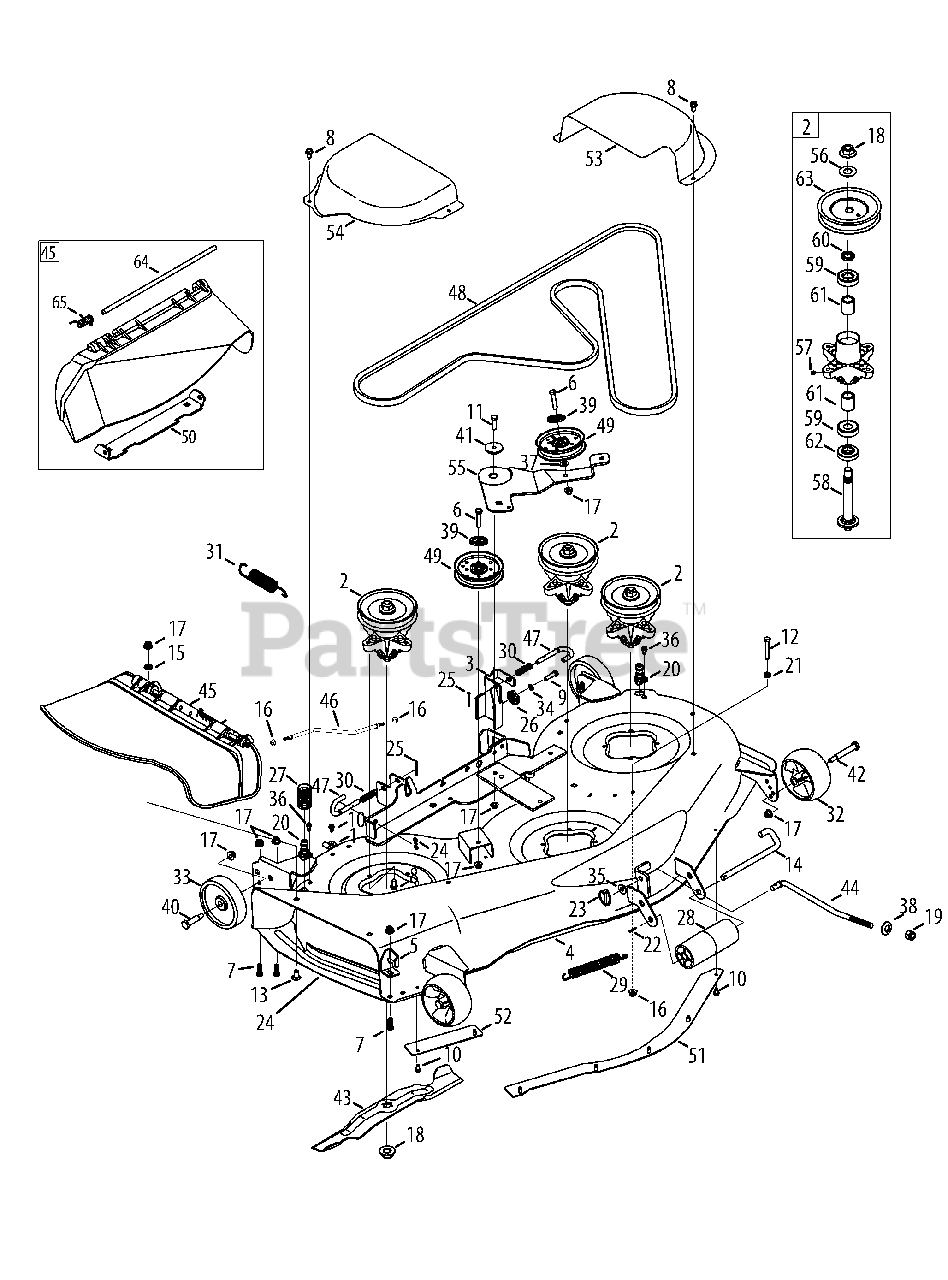

13AP925P004 - MTD Gold Lawn Tractor (2013) Mower Deck Parts Diagram

Gold Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

MTD 96606

Hook Retainer Bracket

$7.49

$

In Stock, Qty 7

0

2

MTD 918-04125B

Pulley Spindle Assembly, 5.39
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

MTD 683-0254B-0691

Deck Hanger Bracket Assembly
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

4

MTD 983-04645A-0691

Deck Assembly

$

$

Not available

5

MTD 703-3279

Chute Deflector Stop

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

6

MTD 710-0347

Hex Screw, 3/8-16:1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-04095

Hex Screw, 3/8-16:1.00

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-04484

Taptite Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0528

Hex Screw, 5/16-18:1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Taptite Screw, 1/4-20:0.500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3005

Hex Screw, 3/8-16:1.25

$3.99

$

In Stock, Qty 10

0

12

MTD 710-3103

Hex Screw, 5/16-18:2.0

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3178

Carriage Bolt, 3/8-16:0.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 911-3314

Roller Pin, 1/2 DIA x 7.31 LG
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

15

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

17

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

Flexlock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

21

MTD 912-3010

Hex Nut, 5/16-18:GR5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

23

MTD 753-04070

Lynch Pin, .1875

$9.99

$

In Stock, Qty 20+

0

24

MTD 703-3511B-0637

Finger Guard

$69.99

$

In Stock, Qty 20+

0

25

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

26

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

27

MTD 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

28

MTD 731-05679A

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

29

MTD 732-0459C

Extension Spring, .94 DIA. x 6.74 LG

$18.99

$

In Stock, only 3 left!

0

30

MTD 732-04652

Compression Spring, .535 OD x 1.751 LG

$6.99

$

Usually ships in 3-6 days

0

31

MTD 732-0934

Extension Spring, 1.15 OD x 5.99 LG

$11.99

$

In Stock, only 1 left!

0

32

MTD 734-04155

Front Deck Wheel

$20.99

$

In Stock, Qty 20+

0

33

MTD 734-0973

Rear Deck Wheel

$12.99

$

In Stock, Qty 20+

0

34

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

35

MTD 936-0179

Flat Washer, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

36

MTD 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

37

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0317

Bell Washer, .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

39

MTD 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

40

MTD 938-0373

Shoulder Bolt, .496 x 1.525:3/8-16

$9.49

$

In Stock, Qty 20+

0

41

MTD 738-04162C

Shoulder Spacer, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

42

MTD 938-3056

Shoulder Bolt, .496 x 2.50:3/8-16

$9.49

$

In Stock, Qty 20+

0

43

MTD 942-04053C

Blade

$28.99

$

In Stock, Qty 20+

0

44

MTD 747-05067A

Front Deck Lift Rod

$21.99

$

In Stock, Qty 6

0

45

MTD 631-04070C

Chute Assembly

$122.99

$

In Stock, only 4 left!

0

46

MTD 747-05462

Deck Sway Rod

$33.99

$

In Stock, only 1 left!

0

47

MTD 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

48

MTD 954-04077

V Belt
(Superseded to 954-04077A)

$82.99

$

In Stock, Qty 12

0

49

MTD 753-08171

Idler Pulley, 4.25"DIA

$35.99

$

In Stock, Qty 20+

0

50

MTD 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0

51

MTD 783-04414A-0691

Center Skirt
(Superseded to 783-04414A)

$35.99

$

Usually ships in 3-6 days

0

52

MTD 783-04415-0691

RH Skirt
(Superseded to 783-04415-0637)

$30.99

$

In Stock, only 3 left!

0

53

MTD 783-05280-0691

LH Belt Cover

$76.99

$

Usually ships in 3-6 days

0

54

MTD 783-05281-0691

RH Belt Cover

$73.99

$

Usually ships in 3-6 days

0

55

MTD 783-06361A

Idler Bracket

$60.99

$

In Stock, only 1 left!

0

56

MTD 736-0315

Flat Washer, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

57

MTD 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+

0

58

MTD 738-1010A

Spindle Shaft

$46.99

$

In Stock, only 2 left!

0

59

MTD 941-0919B

Ball Bearing, .787ID x 1.85

$21.99

$

In Stock, Qty 20+

0

60

MTD 748-0160A

Spacer, .790 ID x 1.25 OD x .175

$6.99

$

In Stock, only 3 left!

0

61

MTD 750-1000

Spacer, .80 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

62

MTD 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

63

MTD 756-04216

Deck Pulley

$33.99

$

In Stock, only 1 left!

0

64

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

65

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 9

0
