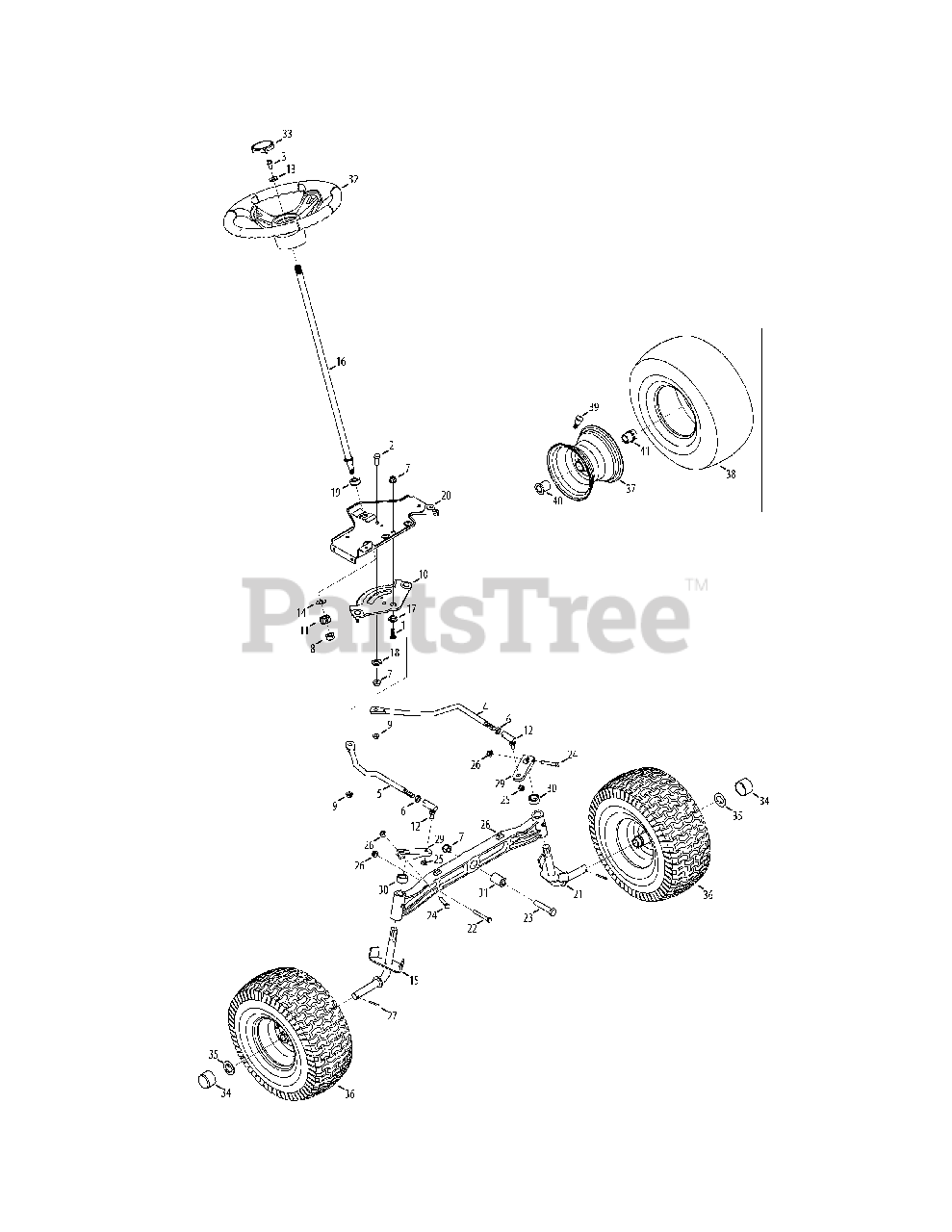

13AP925P004 - MTD Gold Lawn Tractor (2011) Steering & Axle Parts Diagram

Gold Lawn Tractor

Steering & Axle Parts Diagram

  • Title

1

MTD 710-04095

Hex Head Screw, 3/8-16:1.00

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Head Screw, 3/8-16:1.00

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Head Screw, 5/16-18:1.00

$6.99

$

In Stock, Qty 5

0

4

MTD 711-04998

LH Drag Link

$27.99

$

In Stock, only 1 left!

0

5

MTD 711-04999

RH Drag Link

$27.99

$

In Stock, only 1 left!

0

6

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Flangelock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 717-1550F

Steering Gear

$70.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16-20

$24.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Flat Washer, .51 x 1.12 x .06:HT

$4.99

$

In Stock, Qty 20+

0

15

MTD 638-04036P

RH Axle Assembly

$

$

Not available

16

MTD 738-04263

Steering Shaft, .625 OD x 24.25 LG

$68.99

$

In Stock, Qty 7

0

17

MTD 738-04363

Shoulder Spacer, .385X 1.25 x .3025

$5.99

$

In Stock, only 3 left!

0

18

MTD 738-04364B

Spacer, .38 x 1.375

$6.49

$

In Stock, only 1 left!

0

19

MTD 741-04237B

Hex Flange Bearing 5/8 PM

$6.99

$

In Stock, Qty 15

0

20

MTD 783-06043-0637

Steering Support Bracket

$

$

Not available

20

MTD 710-04484

Screw, .750 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 638-04037P

LH Axle Assembly

$49.99

$

Usually ships in 3-6 days

0

22

MTD 710-0395

Hex Head Screw, 5/16-18:2.25

$4.99

$

In Stock, only 1 left!

0

23

MTD 710-0859

Hex Head Screw, 3/8-16:2.50

$6.99

$

In Stock, Qty 17

0

24

MTD 710-3180

Hex Head Screw, 5/16-18:1.75

$5.49

$

In Stock, Qty 20+

0

25

MTD 912-0214

Hexlock Nut, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

26

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 714-0162

Cotter Pin, 5/32:1.25

$4.99

$

In Stock, Qty 20+

0

28

MTD 719-04413A

Pivot Bar Axle

$241.99

$

Usually ships in 3-6 days

0

29

MTD 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 1 left!

0

30

MTD 748-04068

Spacer, .71 ID x .125 OD x .56LG

$4.49

$

In Stock, Qty 20+

0

31

MTD 750-05280

Spacer, .385 x 1.00 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

MTD 631-04028

Steering Wheel, 5 Style

$69.99

$

In Stock, only 1 left!

0

33

MTD 731-04040

Steering Wheel Cap, 5 Style

$9.99

$

In Stock, only 1 left!

0

34

MTD 731-08049

Bumper Cap
(Superseded to 731-08049A)

$

$

Not available

35

MTD 736-04228A

Flat Washer, .781ID x 1.590OD
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

36

MTD 634-04406-0911

Wheel Assembly, 5 Style

$

$

Not available

37

MTD 634-04405-0662

Rim Assembly, 5 Style

$69.99

$

Usually ships in 3-6 days

0

38

MTD 734-1731-0901

Tire, 5 Style

$49.99

$

Usually ships in 3-6 days

0

39

MTD 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0516B

Flange Bearing, .760 x 1.00 x 1.20LG

$6.49

$

In Stock, Qty 20+

0

41

MTD 741-0990B

Flange Bearing, .760ID

$10.99

$

In Stock, Qty 20+

0
